RIEGLER Ball valve with integrated strainer, nickel-plated brass, G 1
Type number: 322.06
EAN: 4047322478854
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve with integrated strainer, MS nickel-plated, operating temp. -20 °C to 100 °C, G 1, DN 20, PN max. 30 bar, mesh size 0.5 mm
| Housing | Nickel-plated brass (CW617N) |
| Ball | Chrome-plated brass (CW617N) |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM |
| Hand lever | Galvanized steel, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |

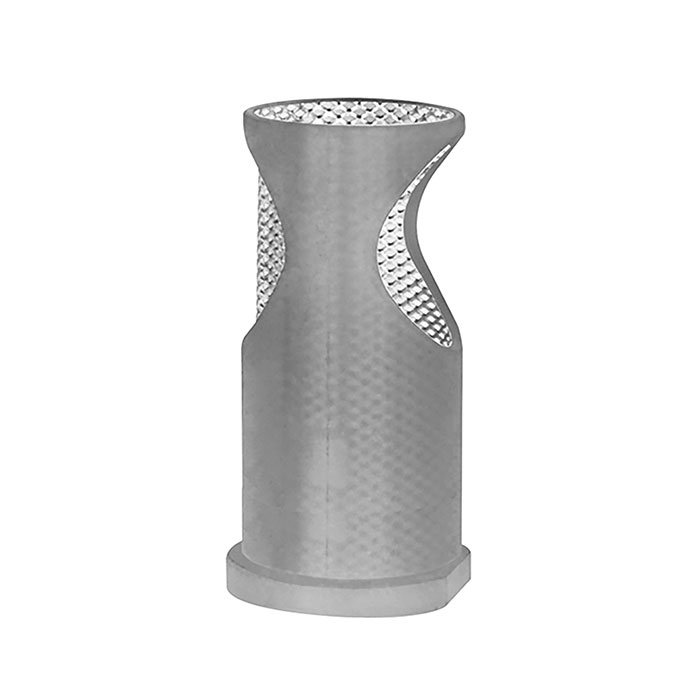

| Sieve insert | Stainless steel, mesh size 0.5 mm |
| Thread | G 1 |
| DN | 20 |
| SW 1 | 38 mm |
| SW 2 | 38 mm |
| PN | 30 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 100 mm |
| B | 50.8 mm |
| D | 38.7 mm |
| L | 70.1 mm |
| E | 15 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Nickel-plated brass (CW617N) |
| Class name | PLUS |
