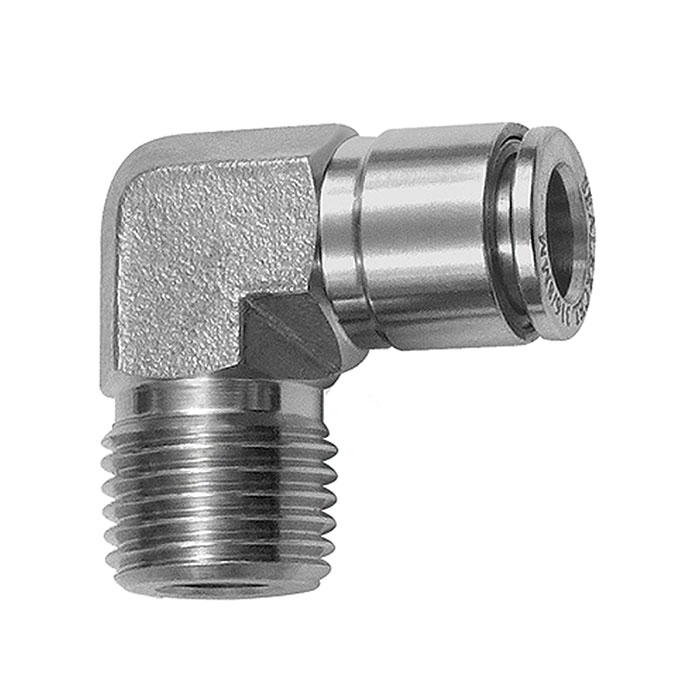

RIEGLER Push-in L-fitting R 1/2 o., for hose exterior Ø 14, ES 1.4404
Type number: 852.012-14 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-fitting R 1/2 a. made of stainless steel 1.4404, for pneumatic installation, max. 20 bar - type 852.012-14 ES
The RIEGLER push-in L-fitting R 1/2 a., for conduit outer Ø 14, ES 1.4404 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of stainless steel 1.4404 with FPM seals. The operating pressure range is -0.98 bar to 20 bar. The operating temperature is between -20 °C and 150 °C. Connection thread R 1/2 (ISO 7-1) - suitable for common industry standards. Suitable for compressed air, corrosive media (if compatible with material). Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Thread | R 1/2 |
| SW | 21 mm |
| Thread standard | ISO 7-1 |
| for hose outer Ø | 14 mm |
| L1 | 28 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
