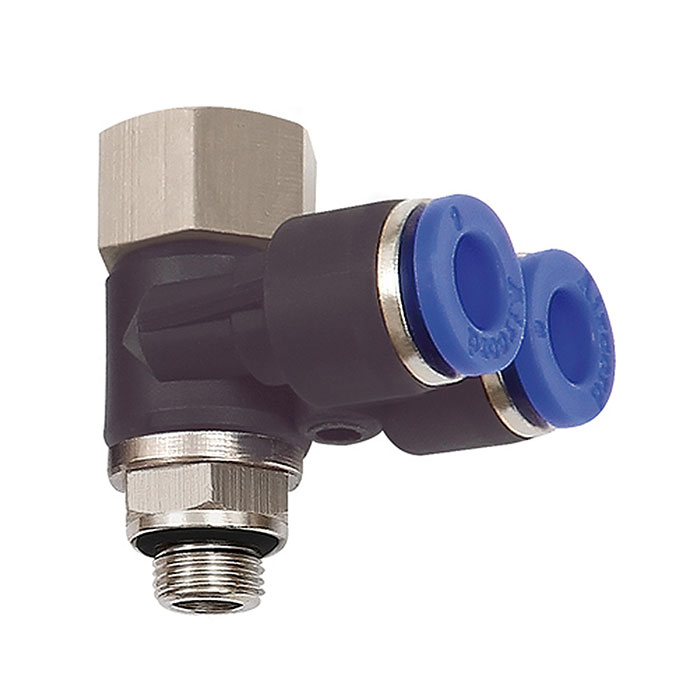

RIEGLER Y- angled piece fitting »Blue Series«, rotating, G 1/4 o.
Type number: 210.014-10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Y-Winkelsteckverschr. »Blaue Serie«, drehbar, G 1/4 a., für Schlauch-Außen-Ø 10 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/4 |
| SW | 19 mm |
| for hose outer Ø | 10 mm |
| L1 | 33.7 mm |
| L2 | 31.8 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109629] RIEGLER Y- angled piece fitting »Blue Series«, rotating, G 1/2 o.](/web/image/product.template/178555/image_128/%5B109629%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-2%20o.?unique=398fad2)
|
Type number: 210.012-12 |
5.52 € | |

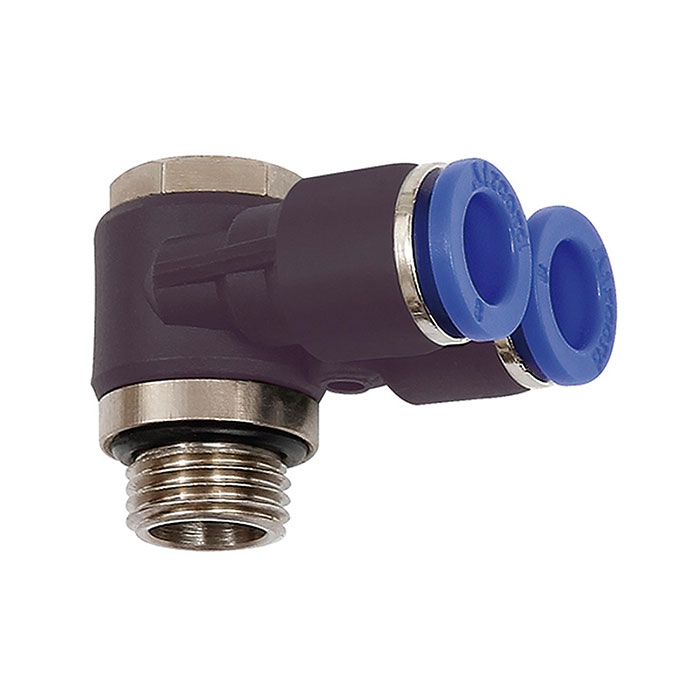

![[109627] RIEGLER Y- angled piece fitting »Blue Series«, rotating, G 1/4 o.](/web/image/product.template/178553/image_128/%5B109627%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=6a1ac20)
|
