RIEGLER T-multi-distributor »Blue Series«, rotating, G 1/4 o.
Type number: 146.0146
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Mehrfachverteiler »Blaue Serie«, drehbar, G 1/4 a., für Schlauch-Außen-Ø 4x6 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/4 |
| SW | 14 mm |
| for hose outer Ø | 4x6 mm |
| L1 | 69.6 mm |
| L2 | 18.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109732] RIEGLER L-multi-distributor »Blue Series« rotating, G 3/8 o.](/web/image/product.template/178658/image_128/%5B109732%5D%20RIEGLER%20L-multi-distributor%20%C2%BBBlue%20Series%C2%AB%20rotating%2C%20G%203-8%20o.?unique=84fd539)
|
Type number: 147.0388 |
5.15 € | |

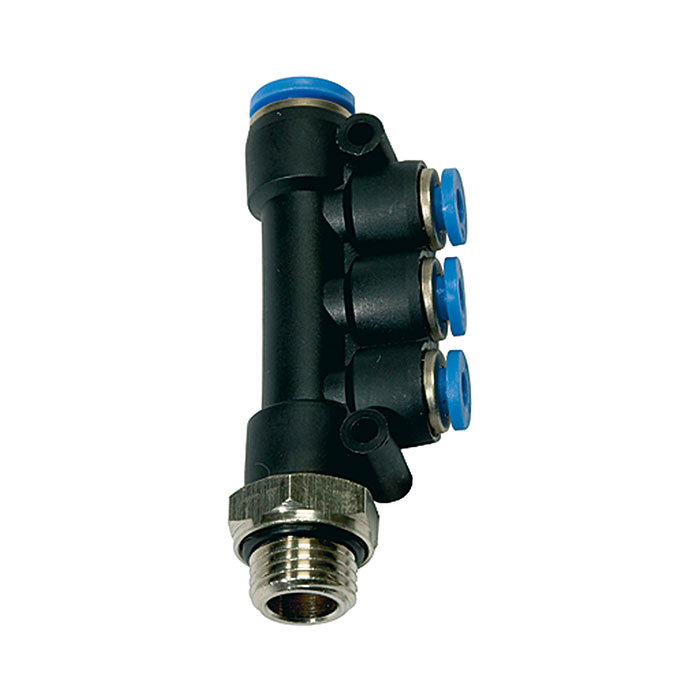

![[109729] RIEGLER T-multi-distributor »Blue Series«, rotating, G 1/4 o.](/web/image/product.template/178655/image_128/%5B109729%5D%20RIEGLER%20T-multi-distributor%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=24decde)
|
