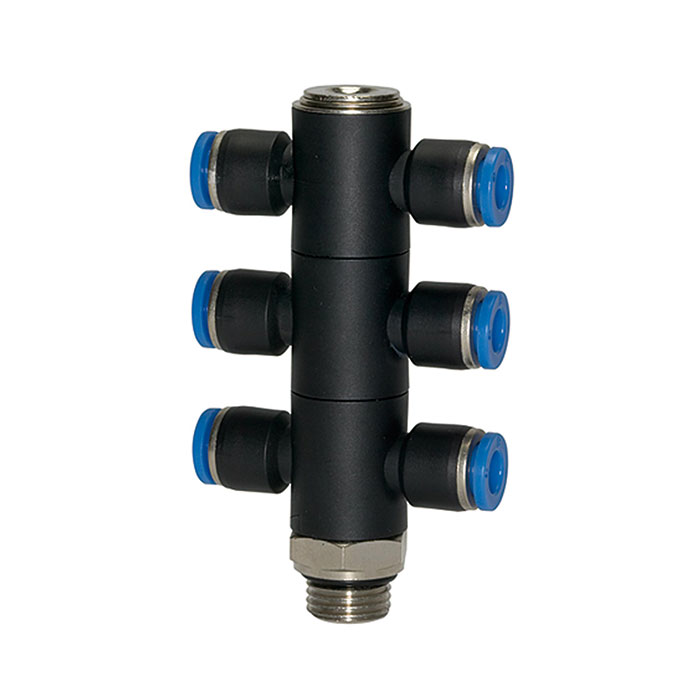

RIEGLER T-multi-distributor »Blue Series«, 6-fold, rotating, G 1/2 o.
Type number: 177.012-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-distributor "Blue series" made of plastic or nickel-plated brass - type 177.012-12
The RIEGLER T-manifold "Blue series", 6-way swivel, G 1/2 a. Ø12mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/2 |
| SW | 24 mm |
| for hose outer Ø | 12 mm |
| Internal hexagon | 8 mm |
| L1 | 70.8 mm |
| L2 | 85.7 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
