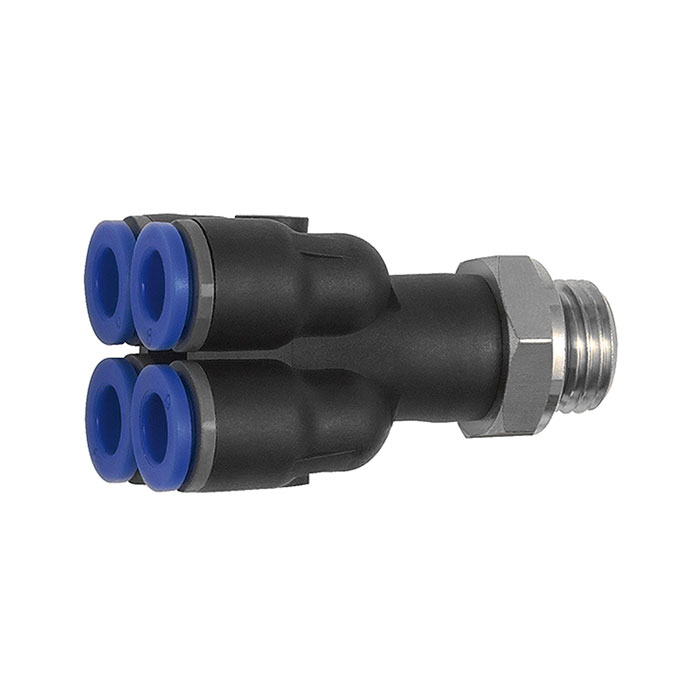

RIEGLER Multi-distributor »Blue Series«, 4-fold, rotating, M5 o.
Type number: 216.005-4
EAN: 4047322498739
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Multiple distributor "Blue Series", 4-way, rotatable, M5 a., for external Ø 4 mm, pmax short-term 15 bar, plastic/MS nickel-plated
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 10 mm |
| for hose outer Ø | 4 mm |
| L1 | 39.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
