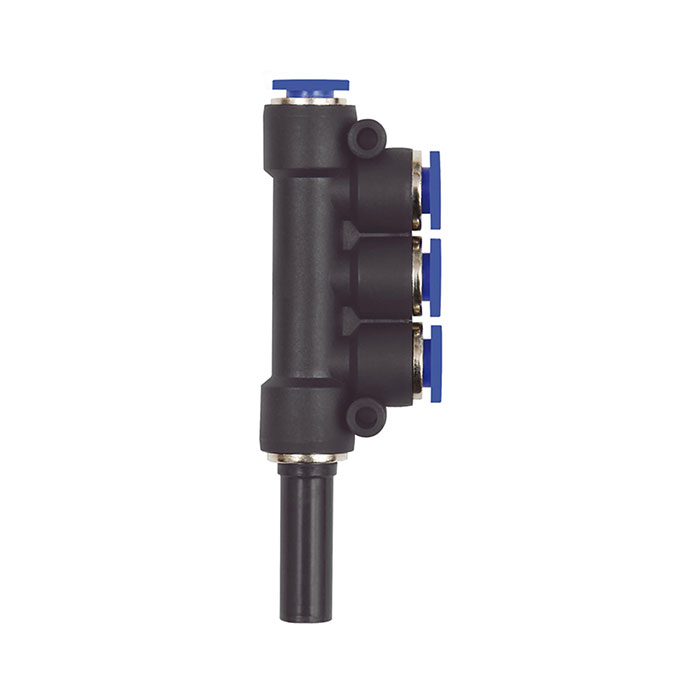

RIEGLER T multi-distributor, Plug nipple 10 mm »Blue Series«, 3-fold
Type number: 224.010-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Mehrfachverteiler, Stecknippel 10 mm »Blaue Serie«, 3-fach, für Schl.-Außen-Ø 4x6 mm, pmax kurzzeitig 15 bar, Kunststoff
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4x6 mm |
| Plug nipple | 10 mm |
| L1 | 105.5 mm |
| L2 | 27.2 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109911] RIEGLER T multi-distributor, Plug nipple 10 mm »Blue Series«, 3-fold](/web/image/product.template/178824/image_128/%5B109911%5D%20RIEGLER%20T%20multi-distributor%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%203-fold?unique=3cfea94)
|
Type number: 224.010-8 |
4.56 € | |
![[109908] RIEGLER T multi-distributor, Plug nipple 6 mm »Blue Series«, 3-fold](/web/image/product.template/178821/image_128/%5B109908%5D%20RIEGLER%20T%20multi-distributor%2C%20Plug%20nipple%206%20mm%20%C2%BBBlue%20Series%C2%AB%2C%203-fold?unique=02fb791)
|
Type number: 224.006-4 |
3.81 € | |
![[109909] RIEGLER T multi-distributor, Plug nipple 8 mm »Blue Series«, 3-fold](/web/image/product.template/178822/image_128/%5B109909%5D%20RIEGLER%20T%20multi-distributor%2C%20Plug%20nipple%208%20mm%20%C2%BBBlue%20Series%C2%AB%2C%203-fold?unique=9fc615c)
|
Type number: 224.008-4 |
4.13 € | |
![[109910] RIEGLER T multi-distributor, Plug nipple 8 mm »Blue Series«, 3-fold](/web/image/product.template/178823/image_128/%5B109910%5D%20RIEGLER%20T%20multi-distributor%2C%20Plug%20nipple%208%20mm%20%C2%BBBlue%20Series%C2%AB%2C%203-fold?unique=c395e5d)
|
Type number: 224.008-6 |
4.13 € | |
