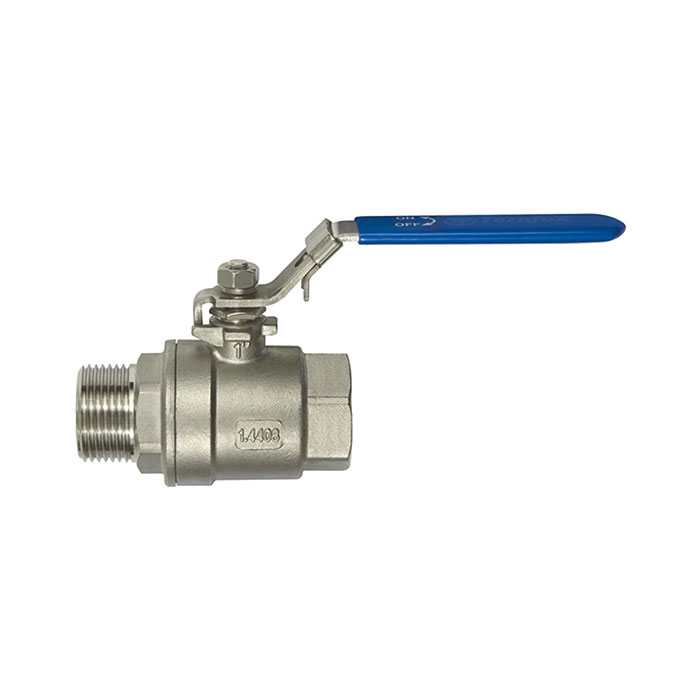

RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1 1/4, DN 32
Type number: 3395.26
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 2-piece, IT/ET thread, G 1 1/4, DN 32, Operating temperature -20 °C to 180 °C, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 150 mm |
| B | 84.5 mm |
| L | 100 mm |
| C Ø | 32 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 6.0 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135908] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1 1/2, DN 40](/web/image/product.template/206261/image_128/%5B135908%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%201%201-2%2C%20DN%2040?unique=f2230ab)
|
Type number: 3395.27 |
74.49 € | |
![[135904] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1/2, DN 15](/web/image/product.template/206257/image_128/%5B135904%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%201-2%2C%20DN%2015?unique=676d59b)
|
Type number: 3395.23 |
18.41 € | |
![[135902] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1/4, DN 8](/web/image/product.template/206255/image_128/%5B135902%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%201-4%2C%20DN%208?unique=2fbb623)
|
Type number: 3395.21 |
17.60 € | |
![[135906] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1, DN 25](/web/image/product.template/206259/image_128/%5B135906%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%201%2C%20DN%2025?unique=1bb1c5c)
|
Type number: 3395.25 |
38.09 € | |
![[135909] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 2, DN 50](/web/image/product.template/206262/image_128/%5B135909%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%202%2C%20DN%2050?unique=1af0101)
|
Type number: 3395.28 |
118.27 € | |
![[135905] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 3/4, DN 20](/web/image/product.template/206258/image_128/%5B135905%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%203-4%2C%20DN%2020?unique=0632a81)
|
Type number: 3395.24 |
27.14 € | |
![[135903] RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 3/8, DN 10](/web/image/product.template/206256/image_128/%5B135903%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-ET%20thread%2C%20G%203-8%2C%20DN%2010?unique=a64bc0b)
|
Type number: 3395.22 |
17.60 € | |
