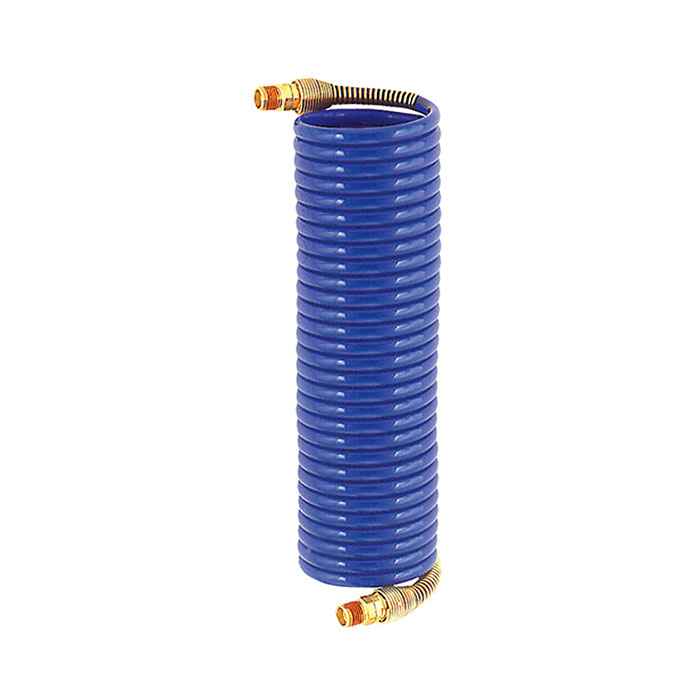

RIEGLER Spiral hose, Fitting, Nylon, R 1/4, Hose Ø 9.5x7.9, 10.0 m
Type number: SP 10-1000
EAN: 4047322504416
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose, screw connection and anti-kink spring, nylon 11 PA, R 1/4, hose ø 9.5x7.9, PN at 23 °C max. 12 bar, length 10 m
| Operating temperature min. | -40 °C |
| Operating temperature max. | 100 °C |
| Thread | R 1/4 |
| Hose Ø | 9.5x7.9 mm |
| Outer spiral Ø | 115 mm |
| Windings | 40 |
| Working length max. | 10 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
