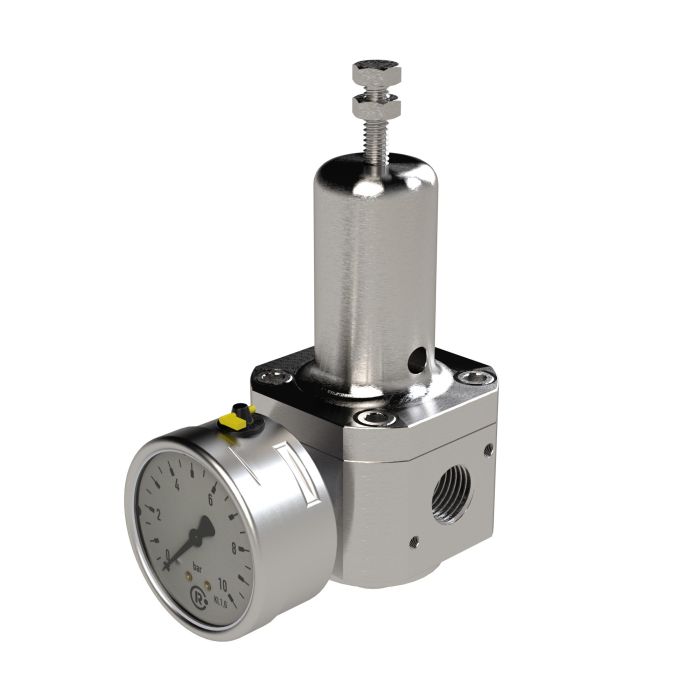

RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 1,0 - 17 bar
Type number: DRES.G12R.1-17B.T
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), G 1/2, control range 1.0 - 17 bar
| A | 179 mm |
| B | 68 mm |
| C | 47 mm |
| Sealing material | PU/HNBR |
| Flow_1 | 5530 l/min |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| E | 68 mm |
| Inlet pressure max. | 60 bar |
| F | 47 mm |
| G | 22 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/2 |
| H | 32 mm |
| I | 36 mm |
| Class name | STAINLESS STEEL |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Membrane | HNBR |
| Control range max. | 17 bar |
| Control range min. | 1 bar |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
