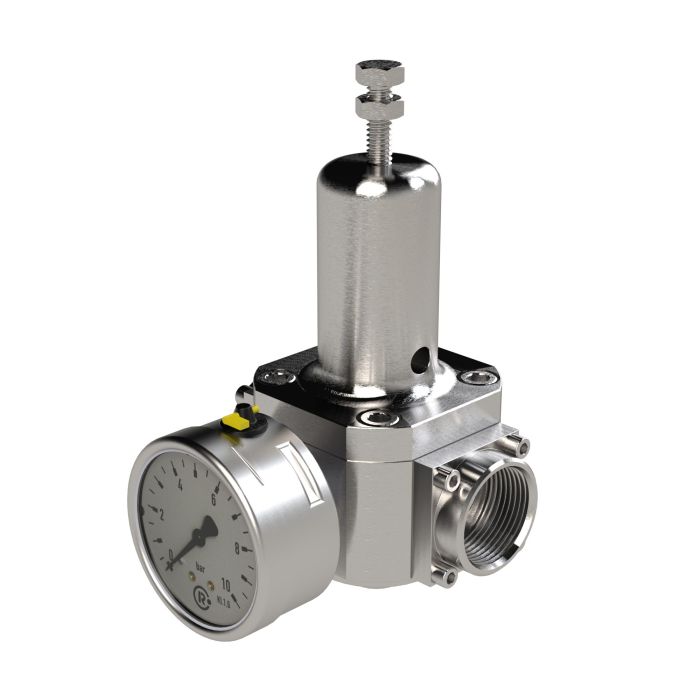

RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1, 1,0 - 17 bar
Type number: DRES.G1R.1-17B.T
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), incl. mano., G 1, regul. pressure 1.0 - 17 bar. 1.0 - 17 bar, PE max. 60 bar
| A | 204 mm |
| B | 124 mm |
| C | 59 mm |
| Sealing material | PU/HNBR |
| Flow_1 | 9170 l/min |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| E | 88 mm |
| Inlet pressure max. | 60 bar |
| F | 59 mm |
| G | 57 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1 |
| H | 33 mm |
| I | 32 mm |
| Class name | STAINLESS STEEL |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Membrane | HNBR |
| Control range max. | 17 bar |
| Control range min. | 1 bar |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136420] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1, 0,5 - 8 bar](/web/image/product.template/267667/image_128/%5B136420%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201%2C%200%2C5%20-%208%20bar?unique=7b53a44)
|
Type number: DRES.G1R.05-8B.T |
824.42 € | |
![[136416] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 0,5 - 8 bar](/web/image/product.template/268043/image_128/%5B136416%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%200%2C5%20-%208%20bar?unique=4d79a96)
|
Type number: DRES.G12R.05-8B.T |
409.47 € | |
![[136417] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 1,0 - 17 bar](/web/image/product.template/268058/image_128/%5B136417%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%201%2C0%20-%2017%20bar?unique=e242841)
|
Type number: DRES.G12R.1-17B.T |
416.29 € | |
![[136412] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/4, 0,5 - 8 bar](/web/image/product.template/268025/image_128/%5B136412%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-4%2C%200%2C5%20-%208%20bar?unique=ec062a9)
|
Type number: DRES.G14R.05-8B.T |
348.36 € | |
![[136413] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/4, 1.0 - 17 bar](/web/image/product.template/278501/image_128/%5B136413%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-4%2C%201.0%20-%2017%20bar?unique=e02de51)
|
Type number: DRES.G14R.1-17B.T |
355.19 € | |
![[136418] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 3/4, 0,5 - 8 bar](/web/image/product.template/268065/image_128/%5B136418%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%203-4%2C%200%2C5%20-%208%20bar?unique=c1e3524)
|
Type number: DRES.G34R.05-8B.T |
445.10 € | |
![[136419] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 3/4, 1,0 - 17 bar](/web/image/product.template/268068/image_128/%5B136419%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%203-4%2C%201%2C0%20-%2017%20bar?unique=f1b02a4)
|
Type number: DRES.G34R.1-17B.T |
451.93 € | |
![[136414] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 3/8, 0,5 - 8 bar](/web/image/product.template/268029/image_128/%5B136414%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%203-8%2C%200%2C5%20-%208%20bar?unique=f4b2dd1)
|
Type number: DRES.G38R.05-8B.T |
368.72 € | |
![[136415] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 3/8, 1,0 - 17 bar](/web/image/product.template/268031/image_128/%5B136415%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%203-8%2C%201%2C0%20-%2017%20bar?unique=52d9331)
|
Type number: DRES.G38R.1-17B.T |
375.55 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

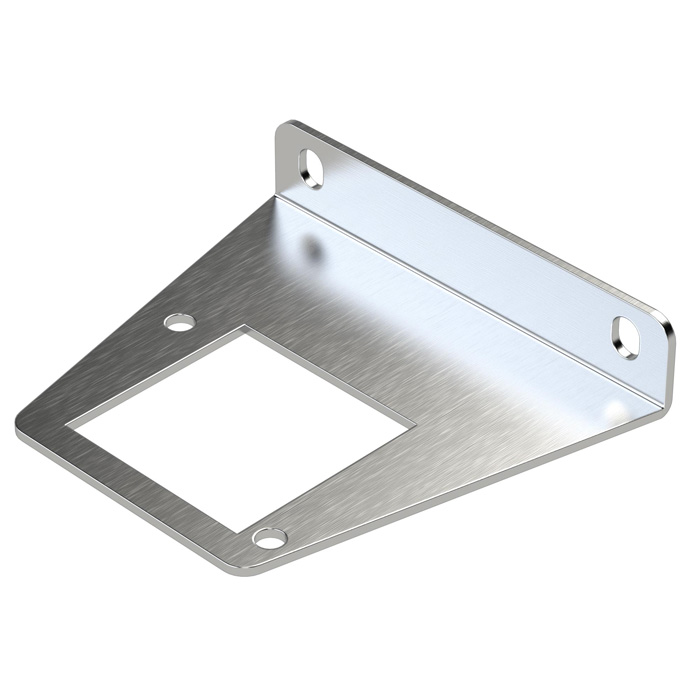

![[135544] RIEGLER Mounting bracket, for pressure and filter regulator, G 1](/web/image/product.template/278497/image_128/%5B135544%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20and%20filter%20regulator%2C%20G%201?unique=8de5e24)
|
Type number: HWDRFRES.G1.T |
22.92 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=33f804e)
|
Type number: 4086 |
113.69 € | |

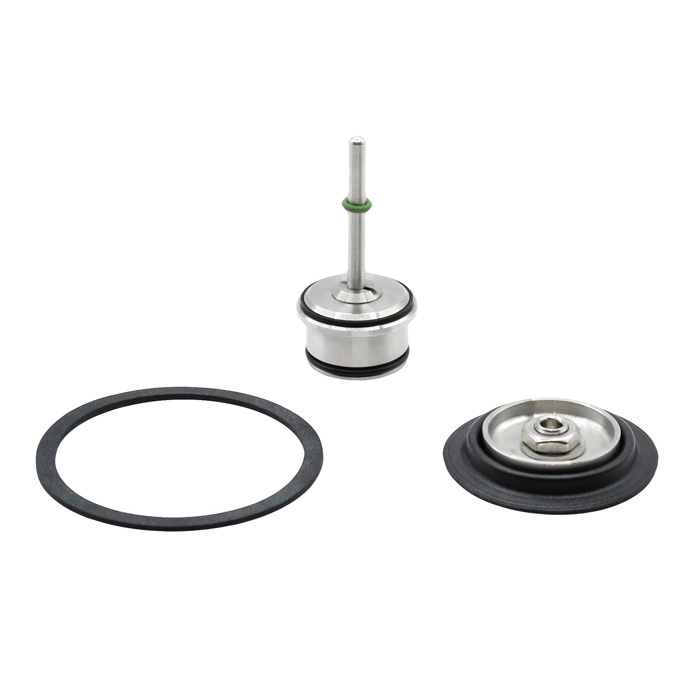

![[135037] RIEGLER Wear parts kit, for pressure and filter regulators, G 1](/web/image/product.template/278489/image_128/%5B135037%5D%20RIEGLER%20Wear%20parts%20kit%2C%20for%20pressure%20and%20filter%20regulators%2C%20G%201?unique=21f398f)
|
Type number: VTSDRFRES.G1R.T |
140.03 € | |
