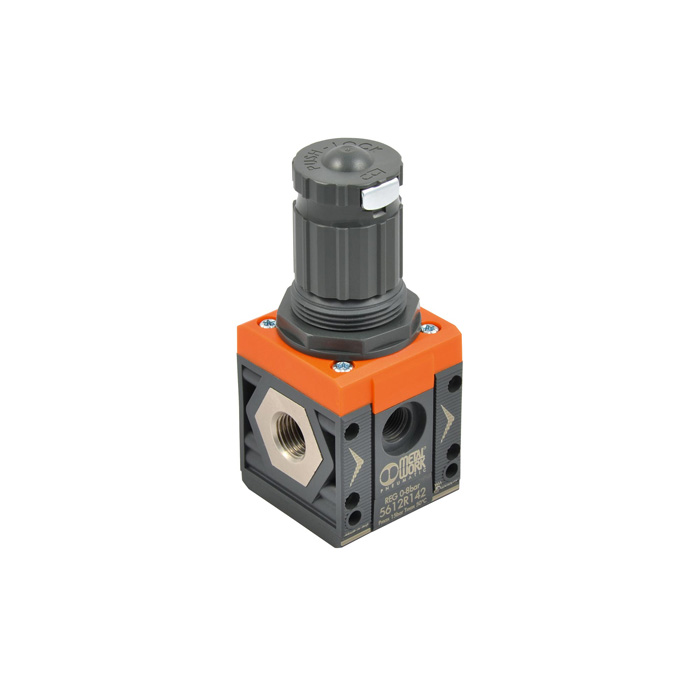

RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...2 bar, without mano.
Type number: 5610R100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator »SYNTESI«, size 1, without bushings, p1 = max. 15 bar, p2 = 0 … 2 bar, T = -10 … 50 °C, without pressure gauge
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 2 bar |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 102 mm |
| D | 51.5 mm |
| Flow_1 | 2900 Nl/min |
| Flow_2 | 3350 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Spring cover | Technopolymer |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139434] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...12 bar, without mano.](/web/image/product.template/278588/image_128/%5B139434%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.12%20bar%2C%20without%20mano.?unique=0775f4e)
|
Type number: 5612R162 |
33.49 € | |
![[139366] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...2 bar, o. Mano.](/web/image/product.template/278584/image_128/%5B139366%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=c8a33bb)
|
Type number: 5612R102 |
33.49 € | |
![[139381] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...4 bar, without mano.](/web/image/product.template/278585/image_128/%5B139381%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.4%20bar%2C%20without%20mano.?unique=e518d81)
|
Type number: 5612R122 |
33.49 € | |
![[139386] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...8 bar, without mano.](/web/image/product.template/278586/image_128/%5B139386%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.8%20bar%2C%20without%20mano.?unique=91f3bc6)
|
Type number: 5612R142 |
33.49 € | |
![[139354] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...12 bar, o. Mano.](/web/image/product.template/278583/image_128/%5B139354%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=7a476b4)
|
Type number: 5611R161 |
33.49 € | |
![[139261] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...2 bar, o. Mano.](/web/image/product.template/278579/image_128/%5B139261%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=0f4e08d)
|
Type number: 5611R101 |
33.49 € | |
![[139328] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...4 bar, o. Mano.](/web/image/product.template/278581/image_128/%5B139328%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=7f9a37b)
|
Type number: 5611R121 |
33.49 € | |
![[139351] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...8 bar, o. Mano.](/web/image/product.template/278582/image_128/%5B139351%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=8f81e50)
|
Type number: 5611R141 |
33.49 € | |
![[139638] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/278592/image_128/%5B139638%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=16a9a29)
|
Type number: 5613R163 |
33.49 € | |
![[139476] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/278589/image_128/%5B139476%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=ea6f7d5)
|
Type number: 5613R103 |
33.49 € | |
![[139477] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/278590/image_128/%5B139477%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=93cf6d1)
|
Type number: 5613R123 |
33.49 € | |
![[139595] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/278591/image_128/%5B139595%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=9b59f2e)
|
Type number: 5613R143 |
33.49 € | |
![[139255] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...12 bar, without mano.](/web/image/product.template/278578/image_128/%5B139255%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=a521ff4)
|
Type number: 5610R160 |
31.24 € | |
![[139250] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...4 bar, without mano.](/web/image/product.template/278576/image_128/%5B139250%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.4%20bar%2C%20without%20mano.?unique=1f222c3)
|
Type number: 5610R120 |
31.24 € | |
![[139253] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...8 bar, without mano.](/web/image/product.template/278577/image_128/%5B139253%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=7b974bd)
|
Type number: 5610R140 |
31.24 € | |
![[139830] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...12 bar, o. Mano.](/web/image/product.template/278613/image_128/%5B139830%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.12%20bar%2C%20o.%20Mano.?unique=d032cbc)
|
Type number: 5626R166 |
62.28 € | |
![[139814] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...2 bar, o. Mano.](/web/image/product.template/278610/image_128/%5B139814%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.2%20bar%2C%20o.%20Mano.?unique=b2097f2)
|
Type number: 5626R106 |
61.43 € | |
![[139828] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...4 bar, o. Mano.](/web/image/product.template/278611/image_128/%5B139828%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.4%20bar%2C%20o.%20Mano.?unique=a296009)
|
Type number: 5626R126 |
62.28 € | |
![[139829] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...8 bar, o. Mano.](/web/image/product.template/278612/image_128/%5B139829%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.8%20bar%2C%20o.%20Mano.?unique=7d7f800)
|
Type number: 5626R146 |
62.28 € | |
![[139764] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...12 bar, without mano.](/web/image/product.template/278605/image_128/%5B139764%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.12%20bar%2C%20without%20mano.?unique=14b6b35)
|
Type number: 5624R164 |
53.45 € | |
![[139748] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...2 bar, o. Mano.](/web/image/product.template/278601/image_128/%5B139748%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.2%20bar%2C%20o.%20Mano.?unique=b94d155)
|
Type number: 5624R104 |
53.45 € | |
![[139750] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...4 bar, o. Mano.](/web/image/product.template/278603/image_128/%5B139750%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.4%20bar%2C%20o.%20Mano.?unique=4a8d465)
|
Type number: 5624R124 |
52.73 € | |
![[139752] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...8 bar, without mano.](/web/image/product.template/278604/image_128/%5B139752%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.8%20bar%2C%20without%20mano.?unique=b2573f7)
|
Type number: 5624R144 |
53.45 € | |
![[139805] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...12 bar, without mano.](/web/image/product.template/278609/image_128/%5B139805%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.12%20bar%2C%20without%20mano.?unique=c4c337a)
|
Type number: 5625R165 |
62.28 € | |
![[139786] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...2 bar, without mano.](/web/image/product.template/278606/image_128/%5B139786%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.2%20bar%2C%20without%20mano.?unique=3713c31)
|
Type number: 5625R105 |
62.27 € | |
![[139794] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...4 bar, o. Mano.](/web/image/product.template/278607/image_128/%5B139794%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=71ade1e)
|
Type number: 5625R125 |
62.28 € | |
![[139804] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...8 bar, o. Mano.](/web/image/product.template/278608/image_128/%5B139804%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=80e8591)
|
Type number: 5625R145 |
62.28 € | |
![[139745] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...12 bar, without mano.](/web/image/product.template/278600/image_128/%5B139745%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.12%20bar%2C%20without%20mano.?unique=dd78114)
|
Type number: 5623R163 |
53.45 € | |
![[139683] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/278597/image_128/%5B139683%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=d473047)
|
Type number: 5623R103 |
53.45 € | |
![[139700] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/278598/image_128/%5B139700%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=f206cbd)
|
Type number: 5623R123 |
53.45 € | |
![[139705] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/278599/image_128/%5B139705%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=5b952ca)
|
Type number: 5623R143 |
53.45 € | |
![[139673] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...12 bar, without mano.](/web/image/product.template/278596/image_128/%5B139673%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=44315bc)
|
Type number: 5620R160 |
41.53 € | |
![[139657] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...2 bar, without mano.](/web/image/product.template/278593/image_128/%5B139657%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.2%20bar%2C%20without%20mano.?unique=019a4d6)
|
Type number: 5620R100 |
41.53 € | |
![[139663] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...4 bar, without mano.](/web/image/product.template/278594/image_128/%5B139663%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.4%20bar%2C%20without%20mano.?unique=a007410)
|
Type number: 5620R120 |
41.53 € | |
![[139665] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano.](/web/image/product.template/278595/image_128/%5B139665%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=43490a8)
|
Type number: 5620R140 |
41.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101670] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 2.5 bar/36 psi](/web/image/product.template/169642/image_128/%5B101670%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%202.5%20bar-36%20psi?unique=0fc6b18)
|
Type number: 110.43-KD |
6.15 € | |
![[144688] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/8, incl. 2 screws](/web/image/product.template/277870/image_128/%5B144688%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%20incl.%202%20screws?unique=238ee0c)
|
Type number: 9210001 |
1.88 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=c8e3d45)
|
Type number: 9210002 |
1.88 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=f89095e)
|
Type number: 9210003 |
1.88 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=ece161d)
|
Type number: 9210000 |
2.73 € | |
![[145468] RIEGLER Mounting bracket, for "SYNTESI" BG 1, etc.](/web/image/product.template/279224/image_128/%5B145468%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%201%2C%20etc.?unique=8b10db5)
|
Type number: 9200701 |
3.53 € | |
![[145471] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 40](/web/image/product.template/279227/image_128/%5B145471%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2040?unique=3ebd527)
|
Type number: 9700102 |
9.69 € | |
![[145473] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 50](/web/image/product.template/279229/image_128/%5B145473%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2050?unique=cd1d012)
|
Type number: 9800102 |
9.69 € | |
![[145475] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar,40x40](/web/image/product.template/279231/image_128/%5B145475%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C40x40?unique=e02cb36)
|
Type number: 9700109 |
9.38 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=44c5c52)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=373acfd)
|
Type number: 9210030 |
0.26 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=0d4ee1b)
|
Type number: 9062401 |
12.10 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=e9d666b)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=6527c29)
|
Type number: 233.02-N |
0.42 € | |

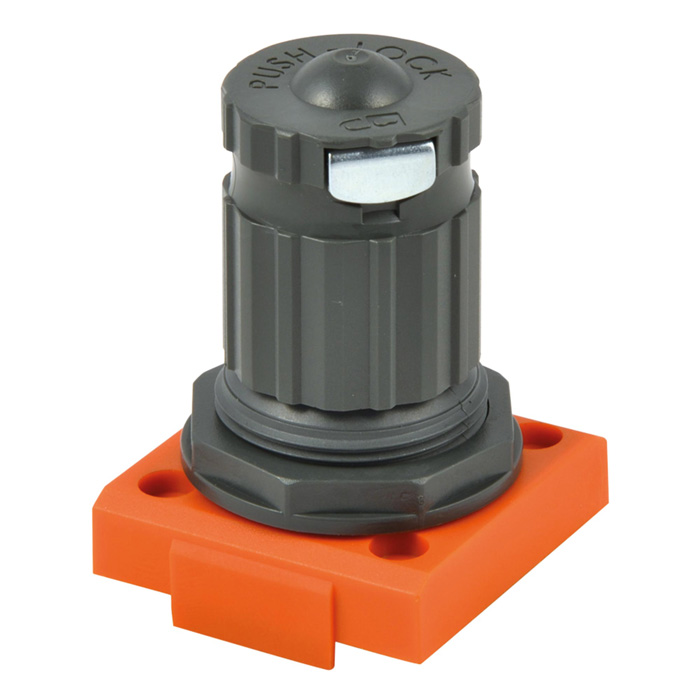

![[145641] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 2 bar](/web/image/product.template/279298/image_128/%5B145641%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%202%20bar?unique=28b05b1)
|
Type number: 9210200 |
12.86 € | |
![[145633] RIEGLER SYNTESI" spring, BG 1, 0 - 2 bar](/web/image/product.template/279290/image_128/%5B145633%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%202%20bar?unique=ce463cb)
|
Type number: 9210190 |
2.42 € | |

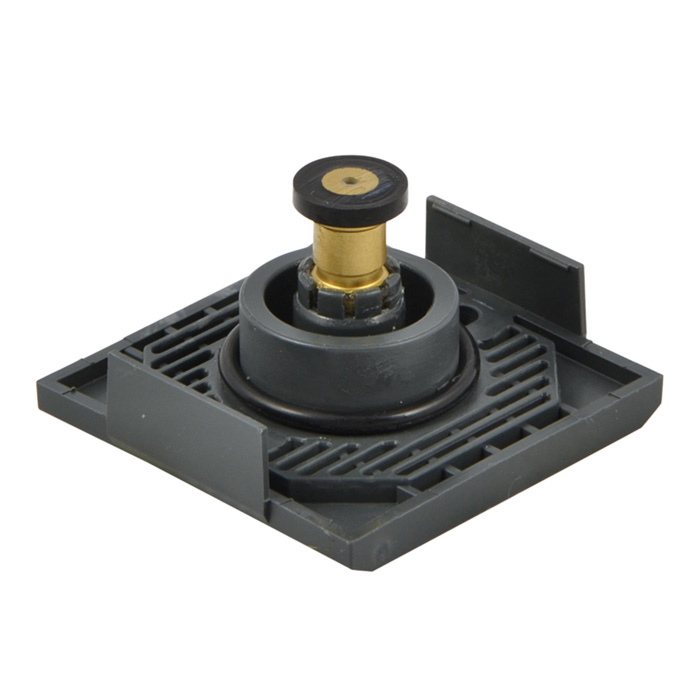

![[145649] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 1](/web/image/product.template/279306/image_128/%5B145649%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201?unique=c3b8b13)
|
