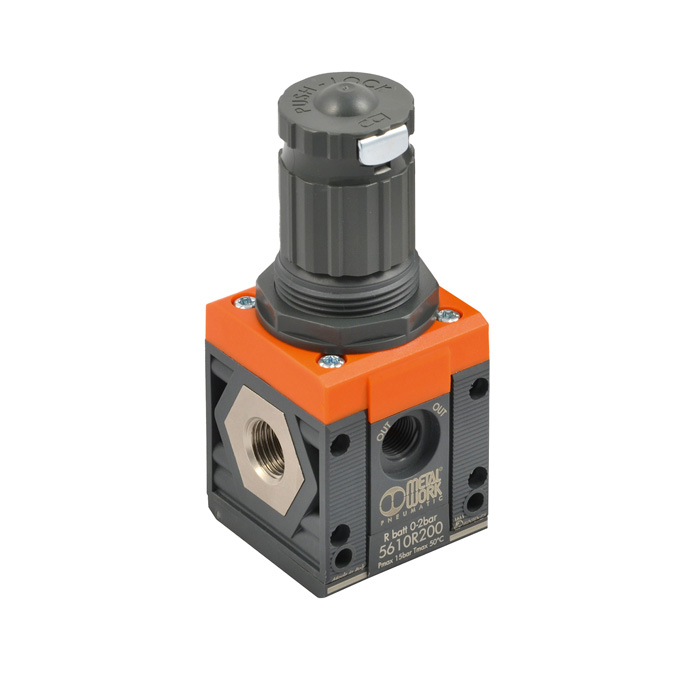

RIEGLER Battery regulator "SYNTESI", BG1, o. sockets, 0...2 bar, o. Mano.
Type number: 5610R200
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Battery regulator "SYNTESI", BG 1, without sockets, p1 = max. 15 bar, p2 = 0 ? 2 bar, T = -10 ? 50 °C, without pressure gauge
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 2 bar |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 102 mm |
| D | 51.5 mm |
| Flow_1 | 330 Nl/min |
| Flow_2 | 500 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Spring cover | Technopolymer |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139983] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...12 bar, o. Mano.](/web/image/product.template/277629/image_128/%5B139983%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.12%20bar%2C%20o.%20Mano.?unique=770ab19)
|
Type number: 5612R262 |
33.49 € | |
![[139929] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...2 bar, o. Mano.](/web/image/product.template/278622/image_128/%5B139929%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=7ad715c)
|
Type number: 5612R202 |
33.49 € | |
![[139946] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...4 bar, o. Mano.](/web/image/product.template/278623/image_128/%5B139946%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=796c62b)
|
Type number: 5612R222 |
33.49 € | |
![[139968] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...8 bar, o. Mano.](/web/image/product.template/277628/image_128/%5B139968%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=18a2568)
|
Type number: 5612R242 |
33.49 € | |
![[139886] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...12 bar, o. Mano.](/web/image/product.template/278621/image_128/%5B139886%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=f830759)
|
Type number: 5611R261 |
33.49 € | |
![[139844] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...2 bar, o. Mano.](/web/image/product.template/278618/image_128/%5B139844%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=e8505bb)
|
Type number: 5611R201 |
33.02 € | |
![[139846] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...4 bar, o. Mano.](/web/image/product.template/278619/image_128/%5B139846%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=0ae47fd)
|
Type number: 5611R221 |
33.49 € | |
![[139879] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...8 bar, o. Mano.](/web/image/product.template/278620/image_128/%5B139879%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=eed87e1)
|
Type number: 5611R241 |
33.49 € | |
![[140023] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/277633/image_128/%5B140023%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=ece424d)
|
Type number: 5613R263 |
33.49 € | |
![[139995] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/277630/image_128/%5B139995%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=43c6544)
|
Type number: 5613R203 |
33.49 € | |
![[140000] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/277631/image_128/%5B140000%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=377ae74)
|
Type number: 5613R223 |
33.49 € | |
![[140022] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/277632/image_128/%5B140022%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=6abb808)
|
Type number: 5613R243 |
33.49 € | |
![[139834] RIEGLER Battery regulator "SYNTESI", BG1, o. sockets, 0...4 bar, o. Mano.](/web/image/product.template/278615/image_128/%5B139834%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20sockets%2C%200--.4%20bar%2C%20o.%20Mano.?unique=a7a4268)
|
Type number: 5610R220 |
31.24 € | |
![[139836] RIEGLER Battery regulator "SYNTESI", BG1, without sockets, 0...12 bar, without mano.](/web/image/product.template/278617/image_128/%5B139836%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=b182c9c)
|
Type number: 5610R260 |
31.24 € | |
![[139835] RIEGLER Battery regulator "SYNTESI", BG1, without sockets, 0...8 bar, without mano.](/web/image/product.template/278616/image_128/%5B139835%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=63830d7)
|
Type number: 5610R240 |
31.24 € | |
![[140248] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...12 bar, o. Mano.](/web/image/product.template/277653/image_128/%5B140248%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.12%20bar%2C%20o.%20Mano.?unique=ca4af76)
|
Type number: 5626R266 |
62.28 € | |
![[140208] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...2 bar, o. Mano.](/web/image/product.template/277650/image_128/%5B140208%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.2%20bar%2C%20o.%20Mano.?unique=ae384bf)
|
Type number: 5626R206 |
62.28 € | |
![[140245] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...4 bar, o. Mano.](/web/image/product.template/277651/image_128/%5B140245%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.4%20bar%2C%20o.%20Mano.?unique=5f56d67)
|
Type number: 5626R226 |
62.28 € | |
![[140247] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...8 bar, o. Mano.](/web/image/product.template/277652/image_128/%5B140247%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.8%20bar%2C%20o.%20Mano.?unique=84ee53e)
|
Type number: 5626R246 |
62.28 € | |
![[140129] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...12 bar, o. Mano.](/web/image/product.template/277645/image_128/%5B140129%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.12%20bar%2C%20o.%20Mano.?unique=bef86c1)
|
Type number: 5624R264 |
53.45 € | |
![[140087] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...2 bar, o. Mano.](/web/image/product.template/277642/image_128/%5B140087%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.2%20bar%2C%20o.%20Mano.?unique=dbee245)
|
Type number: 5624R204 |
53.45 € | |
![[140088] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...4 bar, o. Mano.](/web/image/product.template/277643/image_128/%5B140088%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.4%20bar%2C%20o.%20Mano.?unique=11ee298)
|
Type number: 5624R224 |
53.45 € | |
![[140098] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...8 bar, o. Mano.](/web/image/product.template/277644/image_128/%5B140098%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.8%20bar%2C%20o.%20Mano.?unique=c2f43a4)
|
Type number: 5624R244 |
53.45 € | |
![[140205] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...12 bar, o. Mano.](/web/image/product.template/277649/image_128/%5B140205%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.12%20bar%2C%20o.%20Mano.?unique=f5f94c2)
|
Type number: 5625R265 |
62.28 € | |
![[140198] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...2 bar, o. Mano.](/web/image/product.template/277646/image_128/%5B140198%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=1b3a298)
|
Type number: 5625R205 |
62.28 € | |
![[140200] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...4 bar, o. Mano.](/web/image/product.template/277647/image_128/%5B140200%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=9c094f6)
|
Type number: 5625R225 |
62.28 € | |
![[140203] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...8 bar, o. Mano.](/web/image/product.template/277648/image_128/%5B140203%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=fed1033)
|
Type number: 5625R245 |
62.28 € | |
![[140058] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/277641/image_128/%5B140058%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=5f1f935)
|
Type number: 5623R263 |
53.45 € | |
![[140031] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/277638/image_128/%5B140031%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=f2c5486)
|
Type number: 5623R203 |
53.45 € | |
![[140032] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/277639/image_128/%5B140032%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=99fbde2)
|
Type number: 5623R223 |
53.45 € | |
![[140033] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/277640/image_128/%5B140033%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=803516a)
|
Type number: 5623R243 |
53.45 € | |
![[140026] RIEGLER Battery regulator "SYNTESI", BG2, o. sockets, 0...2 bar, o. Mano.](/web/image/product.template/277634/image_128/%5B140026%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20sockets%2C%200--.2%20bar%2C%20o.%20Mano.?unique=bc5794f)
|
Type number: 5620R200 |
41.53 € | |
![[140027] RIEGLER Battery regulator "SYNTESI", BG2, o. sockets, 0...4 bar, o. Mano.](/web/image/product.template/277635/image_128/%5B140027%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20sockets%2C%200--.4%20bar%2C%20o.%20Mano.?unique=f029c3c)
|
Type number: 5620R220 |
41.53 € | |
![[140030] RIEGLER Battery regulator "SYNTESI", BG2, without sockets, 0...12 bar, without mano.](/web/image/product.template/277637/image_128/%5B140030%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=28617eb)
|
Type number: 5620R260 |
41.53 € | |
![[140028] RIEGLER Battery regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano.](/web/image/product.template/277636/image_128/%5B140028%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=b70fcf7)
|
Type number: 5620R240 |
41.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101670] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 2.5 bar/36 psi](/web/image/product.template/169642/image_128/%5B101670%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%202.5%20bar-36%20psi?unique=b4be8ac)
|
Type number: 110.43-KD |
6.15 € | |
![[144688] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/8, incl. 2 screws](/web/image/product.template/277870/image_128/%5B144688%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%20incl.%202%20screws?unique=c64eeec)
|
Type number: 9210001 |
1.88 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=1dcc1ec)
|
Type number: 9210002 |
1.88 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=81ad5a5)
|
Type number: 9210003 |
1.88 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=5a70958)
|
Type number: 9210000 |
2.73 € | |
![[145468] RIEGLER Mounting bracket, for "SYNTESI" BG 1, etc.](/web/image/product.template/279224/image_128/%5B145468%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%201%2C%20etc.?unique=0d71c68)
|
Type number: 9200701 |
3.53 € | |
![[145471] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 40](/web/image/product.template/279227/image_128/%5B145471%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2040?unique=cb1d5f7)
|
Type number: 9700102 |
9.69 € | |
![[145473] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 50](/web/image/product.template/279229/image_128/%5B145473%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2050?unique=46c6165)
|
Type number: 9800102 |
9.69 € | |
![[145475] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar,40x40](/web/image/product.template/279231/image_128/%5B145475%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C40x40?unique=9a542a7)
|
Type number: 9700109 |
9.38 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=ccb6dd0)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=093ed8a)
|
Type number: 9210006 |
6.56 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=aa6189e)
|
Type number: 9210030 |
0.26 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=38275ec)
|
Type number: 9062401 |
12.10 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=b055cfd)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=b1d5b02)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=739b7c0)
|
Type number: 233.02-N |
0.42 € | |

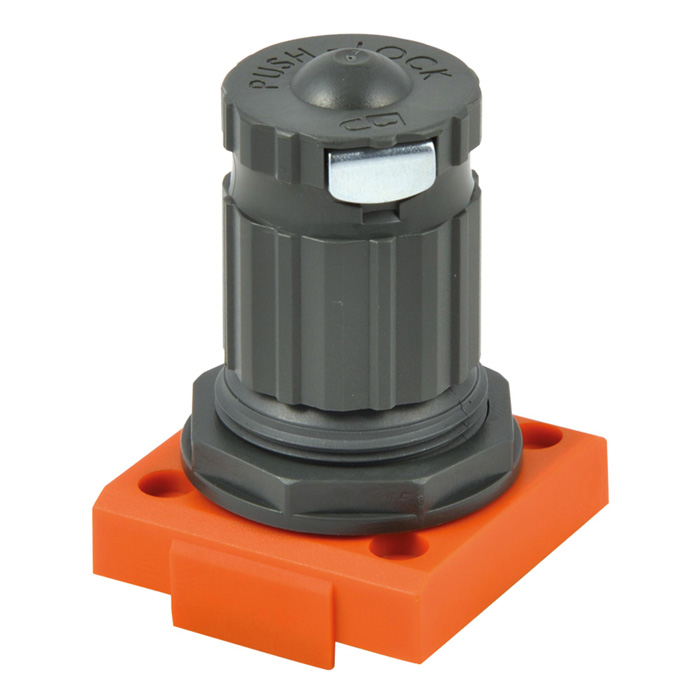

![[145641] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 2 bar](/web/image/product.template/279298/image_128/%5B145641%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%202%20bar?unique=9a6cc1d)
|
Type number: 9210200 |
12.86 € | |

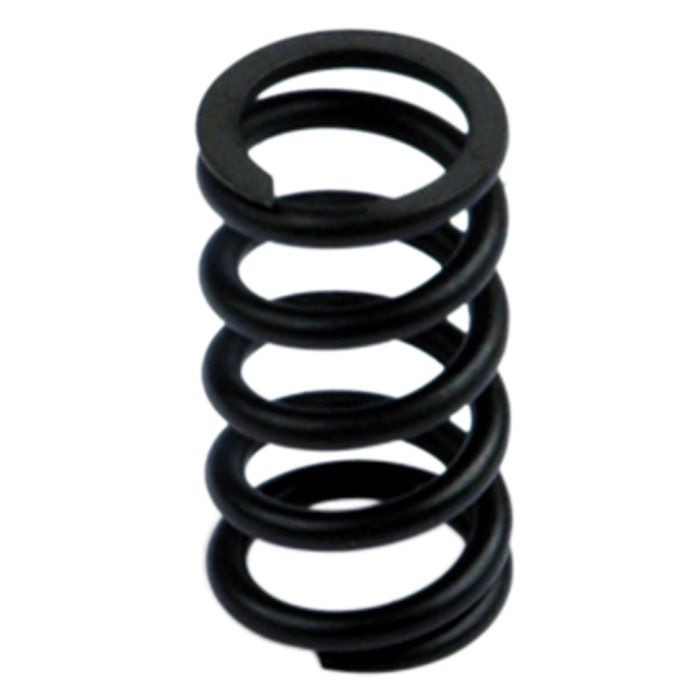

![[145633] RIEGLER SYNTESI" spring, BG 1, 0 - 2 bar](/web/image/product.template/279290/image_128/%5B145633%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%202%20bar?unique=b798cb5)
|
Type number: 9210190 |
2.42 € | |

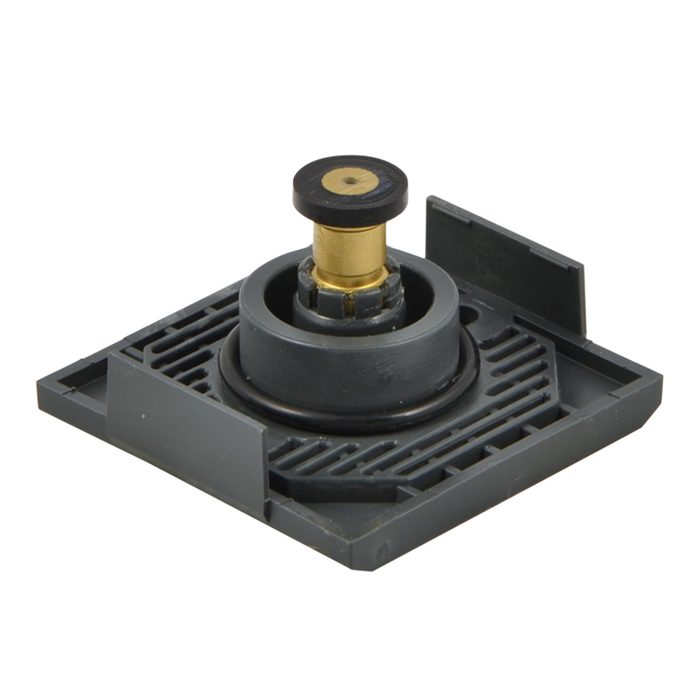

![[145649] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 1](/web/image/product.template/279306/image_128/%5B145649%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201?unique=3270242)
|
Type number: 9210210 |
5.57 € | |
