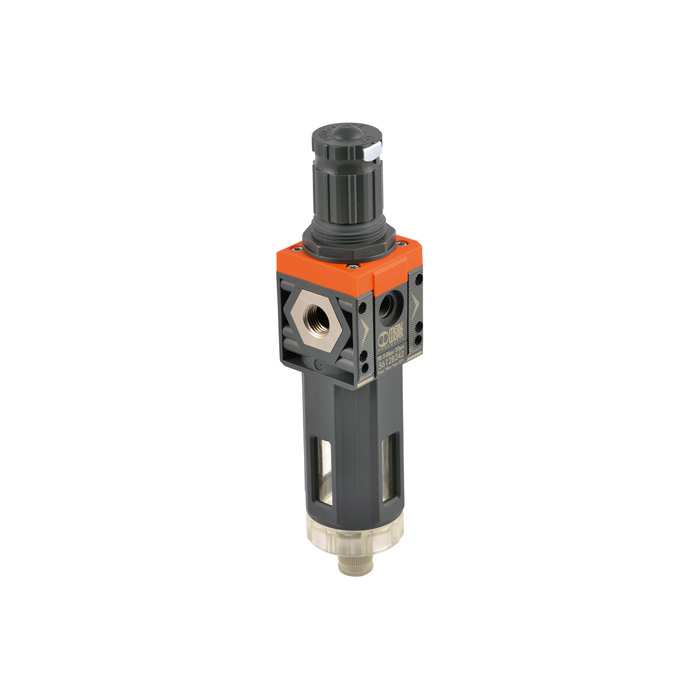

RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...2bar, RMSA, o. Mano.
Type number: 5623B103
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator "SYNTESI", BG 2, G 3/8, 5 µm, p1 = max. 13 bar, p2 = 0?2 bar, RMSA semi-automatic, T = -10?50 °C, o. Mano.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 2 bar |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 60.5 mm |
| B | 246 mm |
| Flow_1 | 3200 Nl/min |
| Flow_2 | 5800 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 139.8 mm |
| Air purity class at the outlet according to | 38171 |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Condensate drain |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141164] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277678/image_128/%5B141164%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=6cc2038)
|
Type number: 5612B262 |
45.61 € | |
![[141088] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277675/image_128/%5B141088%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=6133dc3)
|
Type number: 5612B202 |
45.61 € | |
![[141128] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277676/image_128/%5B141128%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=61e1c30)
|
Type number: 5612B222 |
45.61 € | |
![[141140] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277677/image_128/%5B141140%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=df14aa3)
|
Type number: 5612B242 |
45.61 € | |
![[140966] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277674/image_128/%5B140966%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=aabddbc)
|
Type number: 5612B162 |
45.61 € | |
![[140939] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277671/image_128/%5B140939%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=1f60dc7)
|
Type number: 5612B102 |
45.61 € | |
![[140952] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277672/image_128/%5B140952%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=2750ee9)
|
Type number: 5612B122 |
45.61 € | |
![[140961] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277673/image_128/%5B140961%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=42c37a6)
|
Type number: 5612B142 |
45.61 € | |
![[140937] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277670/image_128/%5B140937%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=0097402)
|
Type number: 5611B261 |
45.61 € | |
![[140867] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277667/image_128/%5B140867%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=3a7cc3e)
|
Type number: 5611B201 |
45.61 € | |
![[140923] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277668/image_128/%5B140923%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=b97ee68)
|
Type number: 5611B221 |
45.61 € | |
![[140935] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277669/image_128/%5B140935%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=bf1c893)
|
Type number: 5611B241 |
45.61 € | |
![[140857] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277666/image_128/%5B140857%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=fb851b6)
|
Type number: 5611B161 |
45.61 € | |
![[140778] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277663/image_128/%5B140778%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=154dd63)
|
Type number: 5611B101 |
45.61 € | |
![[140790] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277664/image_128/%5B140790%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=307e54f)
|
Type number: 5611B121 |
45.61 € | |
![[140852] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277665/image_128/%5B140852%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=478e5dd)
|
Type number: 5611B141 |
45.61 € | |
![[141254] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277686/image_128/%5B141254%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=26fe803)
|
Type number: 5613B263 |
45.61 € | |
![[141224] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277683/image_128/%5B141224%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=e68e20d)
|
Type number: 5613B203 |
45.61 € | |
![[141236] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277684/image_128/%5B141236%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=ec87989)
|
Type number: 5613B223 |
44.99 € | |
![[141250] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277685/image_128/%5B141250%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=38aa5d0)
|
Type number: 5613B243 |
45.61 € | |
![[141171] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277682/image_128/%5B141171%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=fbbde86)
|
Type number: 5613B163 |
45.61 € | |
![[141165] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277679/image_128/%5B141165%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=d319232)
|
Type number: 5613B103 |
45.61 € | |
![[141166] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277680/image_128/%5B141166%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=78106f0)
|
Type number: 5613B123 |
45.61 € | |
![[141167] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277681/image_128/%5B141167%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=42d59e6)
|
Type number: 5613B143 |
45.61 € | |
![[140773] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277662/image_128/%5B140773%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=5da1126)
|
Type number: 5610B260 |
42.78 € | |
![[140729] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277659/image_128/%5B140729%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=107e323)
|
Type number: 5610B200 |
42.78 € | |
![[140741] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277660/image_128/%5B140741%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=659f8dd)
|
Type number: 5610B220 |
42.78 € | |
![[140750] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277661/image_128/%5B140750%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=9f6287c)
|
Type number: 5610B240 |
42.78 € | |
![[140710] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277658/image_128/%5B140710%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=40c0858)
|
Type number: 5610B160 |
42.78 € | |
![[140518] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277655/image_128/%5B140518%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=040e71f)
|
Type number: 5610B100 |
42.78 € | |
![[140688] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277656/image_128/%5B140688%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=180fce4)
|
Type number: 5610B120 |
42.78 € | |
![[140709] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277657/image_128/%5B140709%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=88564f7)
|
Type number: 5610B140 |
42.78 € | |
![[142184] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277726/image_128/%5B142184%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=e6ab8da)
|
Type number: 5626B266 |
81.11 € | |
![[142048] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277723/image_128/%5B142048%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=4f20ccc)
|
Type number: 5626B206 |
81.11 € | |
![[142079] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277724/image_128/%5B142079%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=3461153)
|
Type number: 5626B226 |
81.11 € | |
![[142167] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277725/image_128/%5B142167%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=f67ef32)
|
Type number: 5626B246 |
81.11 € | |
![[141305] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277710/image_128/%5B141305%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=24601f8)
|
Type number: 5624B264 |
72.28 € | |
![[141275] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277707/image_128/%5B141275%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=5bcb186)
|
Type number: 5624B204 |
71.29 € | |
![[141276] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277708/image_128/%5B141276%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=db762a8)
|
Type number: 5624B224 |
71.29 € | |
![[141277] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277709/image_128/%5B141277%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=69d0a78)
|
Type number: 5624B244 |
72.28 € | |
![[141274] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277706/image_128/%5B141274%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=7c7d58d)
|
Type number: 5624B164 |
72.28 € | |
![[141271] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277703/image_128/%5B141271%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=ca0025f)
|
Type number: 5624B104 |
72.28 € | |
![[141272] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277704/image_128/%5B141272%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=89b1a51)
|
Type number: 5624B124 |
72.28 € | |
![[141273] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277705/image_128/%5B141273%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=3f256af)
|
Type number: 5624B144 |
72.28 € | |
![[141837] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277722/image_128/%5B141837%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=e9a805e)
|
Type number: 5626B166 |
81.11 € | |
![[141349] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277719/image_128/%5B141349%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=1e413f7)
|
Type number: 5626B106 |
81.11 € | |
![[141812] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277720/image_128/%5B141812%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=0749a25)
|
Type number: 5626B126 |
81.11 € | |
![[141813] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277721/image_128/%5B141813%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=9919a34)
|
Type number: 5626B146 |
81.11 € | |
![[141345] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277718/image_128/%5B141345%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=868de7e)
|
Type number: 5625B265 |
81.11 € | |
![[141333] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277715/image_128/%5B141333%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=01a0fbc)
|
Type number: 5625B205 |
81.11 € | |
![[141336] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277716/image_128/%5B141336%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=d648837)
|
Type number: 5625B225 |
81.11 € | |
![[141339] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277717/image_128/%5B141339%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=9c2491a)
|
Type number: 5625B245 |
81.11 € | |
![[141331] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277714/image_128/%5B141331%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=5f73a67)
|
Type number: 5625B165 |
81.11 € | |
![[141307] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277711/image_128/%5B141307%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=3582bf4)
|
Type number: 5625B105 |
81.11 € | |
![[141310] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277712/image_128/%5B141310%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=967c206)
|
Type number: 5625B125 |
81.11 € | |
![[141317] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277713/image_128/%5B141317%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=aba63db)
|
Type number: 5625B145 |
81.11 € | |
![[141270] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277702/image_128/%5B141270%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=f8098f9)
|
Type number: 5623B263 |
72.28 € | |
![[141267] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277699/image_128/%5B141267%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=06836f5)
|
Type number: 5623B203 |
72.28 € | |
![[141268] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277700/image_128/%5B141268%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=db899d0)
|
Type number: 5623B223 |
72.28 € | |
![[141269] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277701/image_128/%5B141269%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=fcf9bee)
|
Type number: 5623B243 |
72.28 € | |
![[141266] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277698/image_128/%5B141266%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=c6a9d7f)
|
Type number: 5623B163 |
72.28 € | |
![[141264] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277696/image_128/%5B141264%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=187940c)
|
Type number: 5623B123 |
72.28 € | |
![[141265] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277697/image_128/%5B141265%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=fa86400)
|
Type number: 5623B143 |
72.28 € | |
![[141262] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277694/image_128/%5B141262%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=0896a20)
|
Type number: 5620B260 |
60.12 € | |
![[141259] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277691/image_128/%5B141259%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=5c33a97)
|
Type number: 5620B200 |
60.12 € | |
![[141260] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277692/image_128/%5B141260%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=3fe61f0)
|
Type number: 5620B220 |
60.12 € | |
![[141261] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277693/image_128/%5B141261%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=f43a3a5)
|
Type number: 5620B240 |
60.12 € | |
![[141258] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277690/image_128/%5B141258%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=d3c13da)
|
Type number: 5620B160 |
60.12 € | |
![[141255] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277687/image_128/%5B141255%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=f525ce2)
|
Type number: 5620B100 |
60.12 € | |
![[141256] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277688/image_128/%5B141256%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=1e261e8)
|
Type number: 5620B120 |
60.12 € | |
![[141257] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277689/image_128/%5B141257%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=dd7553e)
|
Type number: 5620B140 |
60.12 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101222] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=108b1a2)
|
Type number: 214-KD |
6.30 € | |
![[101674] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/169646/image_128/%5B101674%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=9737e00)
|
Type number: 203-KD |
6.30 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=fff71be)
|
Type number: 9210010 |
6.88 € | |
![[145469] RIEGLER Mounting bracket, for "SYNTESI" BG 2, etc.](/web/image/product.template/279225/image_128/%5B145469%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%202%2C%20etc.?unique=78e402a)
|
Type number: 9400701 |
4.53 € | |
![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=0e90b5c)
|
Type number: 9900101 |
13.08 € | |
![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=4163259)
|
Type number: 9210005 |
2.50 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=3c68e33)
|
Type number: 9210019 |
6.40 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=760151b)
|
Type number: 9210006 |
6.56 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=c8a30fb)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=7fadc5c)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=95e3395)
|
Type number: 9062401 |
12.10 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=386a66e)
|
Type number: 9210106 |
38.76 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=baf7054)
|
Type number: 9210107 |
23.12 € | |
![[145623] RIEGLER Filter element "SYNTESI", BG 2, 20 µm](/web/image/product.template/279280/image_128/%5B145623%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=b9581b8)
|
Type number: 9210156 |
6.50 € | |
![[145624] RIEGLER Filter element "SYNTESI", BG 2, 50 µm](/web/image/product.template/279281/image_128/%5B145624%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=cc81342)
|
Type number: 9210157 |
6.50 € | |
![[145655] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 20 µm](/web/image/product.template/279312/image_128/%5B145655%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=93d8c97)
|
Type number: 9210232 |
10.84 € | |
![[145656] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 50 µm](/web/image/product.template/279313/image_128/%5B145656%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=0f0feb5)
|
Type number: 9210233 |
10.84 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=8da6162)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=e3c435e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

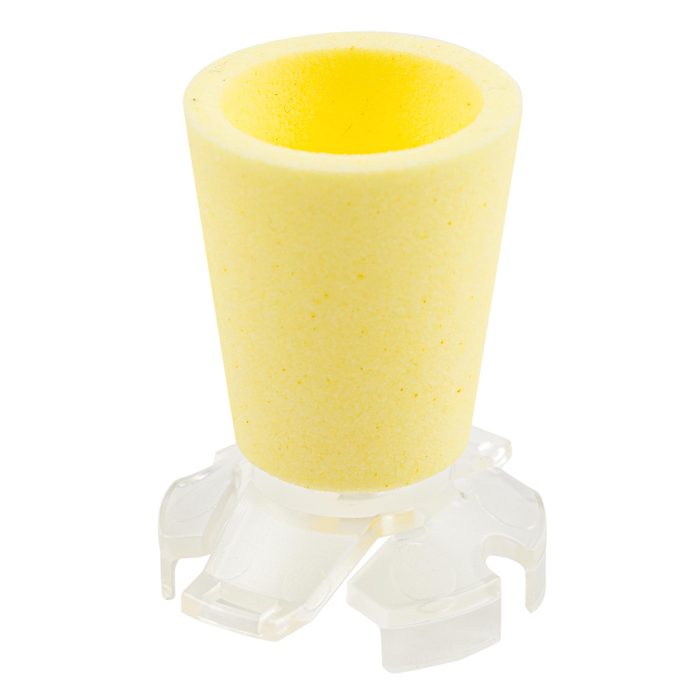

![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=a6806d3)
|
Type number: 9210155 |
6.50 € | |

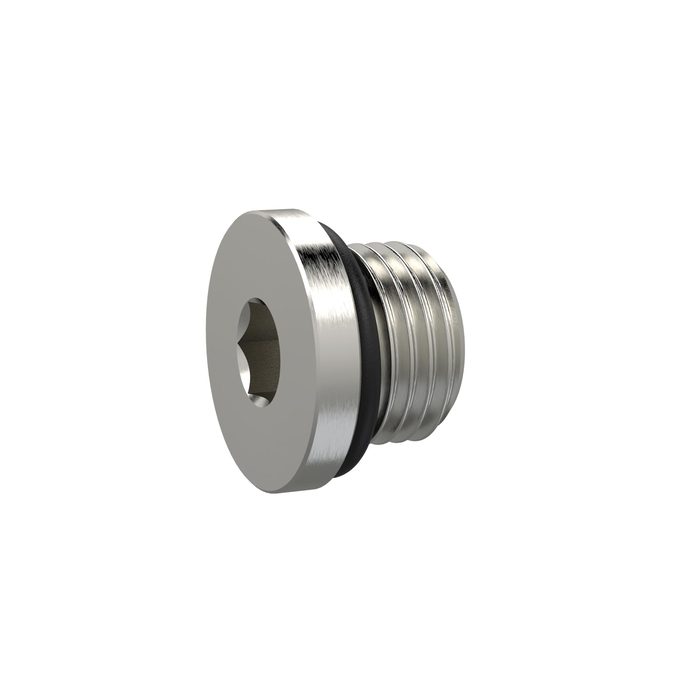

![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=b7f98b5)
|
Type number: 233.03-N |
0.62 € | |

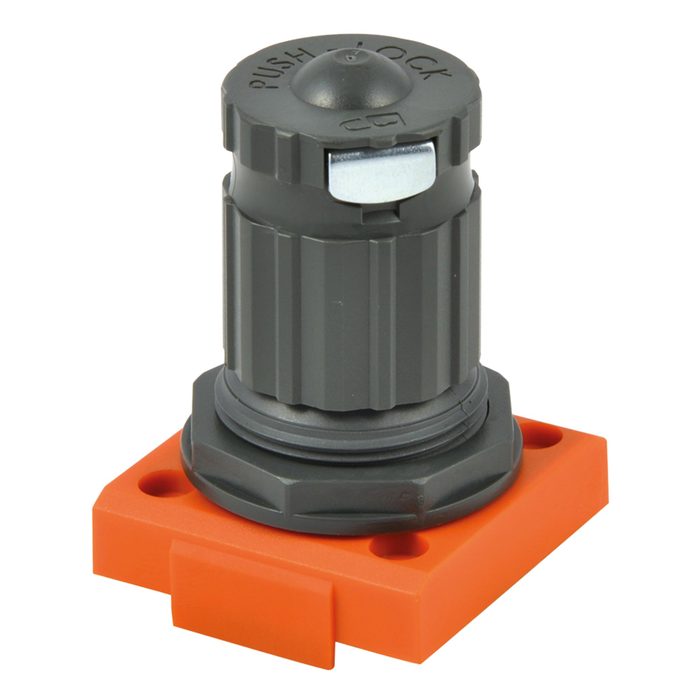

![[145645] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 2 bar](/web/image/product.template/279302/image_128/%5B145645%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%202%20bar?unique=11db59c)
|
Type number: 9210220 |
25.34 € | |

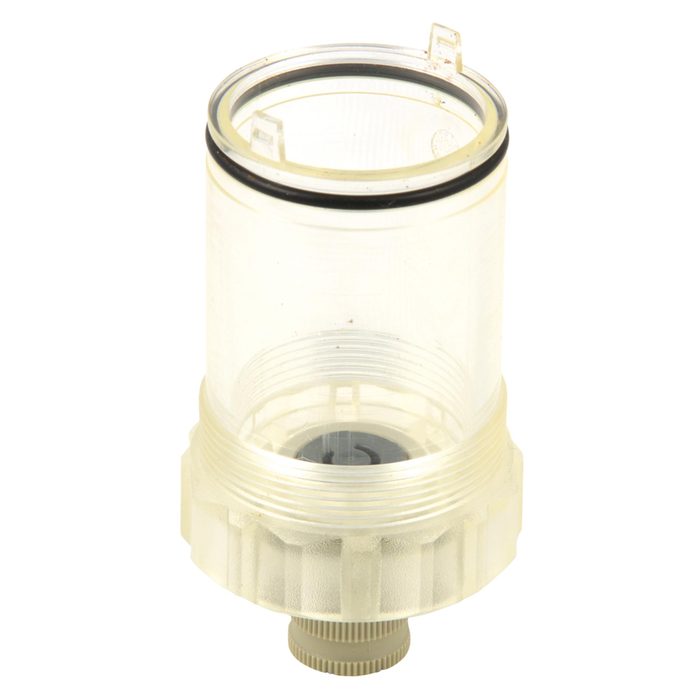

![[145614] RIEGLER SYNTESI" container, BG 2, RMSA semi-automatic](/web/image/product.template/279271/image_128/%5B145614%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RMSA%20semi-automatic?unique=f6bebab)
|
Type number: 9210105 |
14.66 € | |

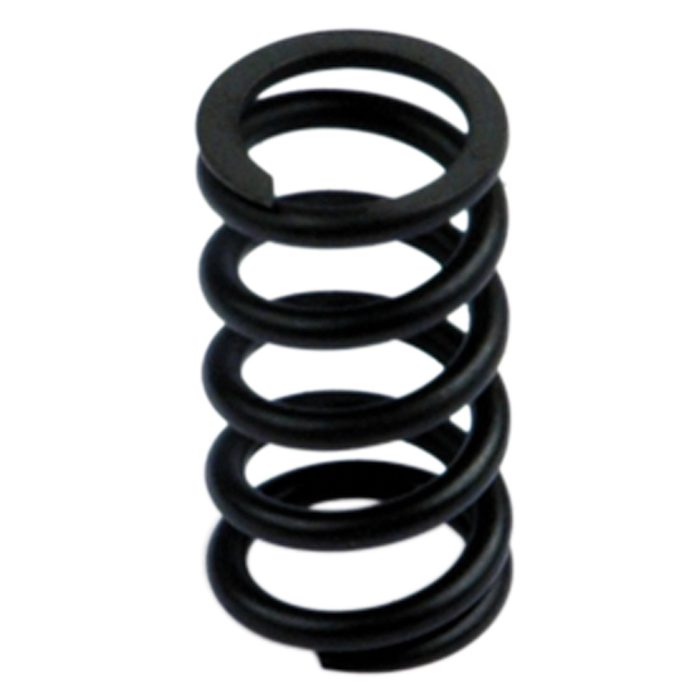

![[145637] RIEGLER SYNTESI" spring, BG 2, 0 - 2 bar](/web/image/product.template/279294/image_128/%5B145637%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%202%20bar?unique=fa05e3f)
|
Type number: 9210195 |
4.72 € | |

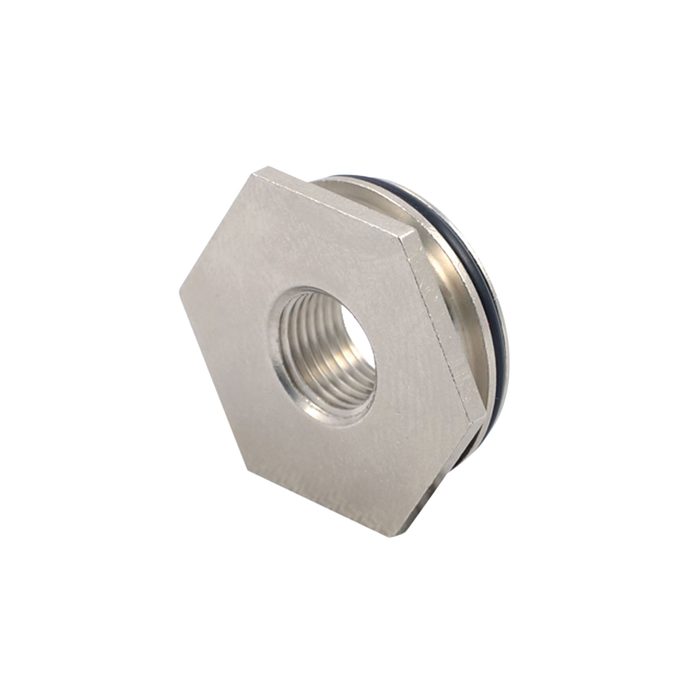

![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=bc07148)
|
Type number: 9210011 |
5.85 € | |

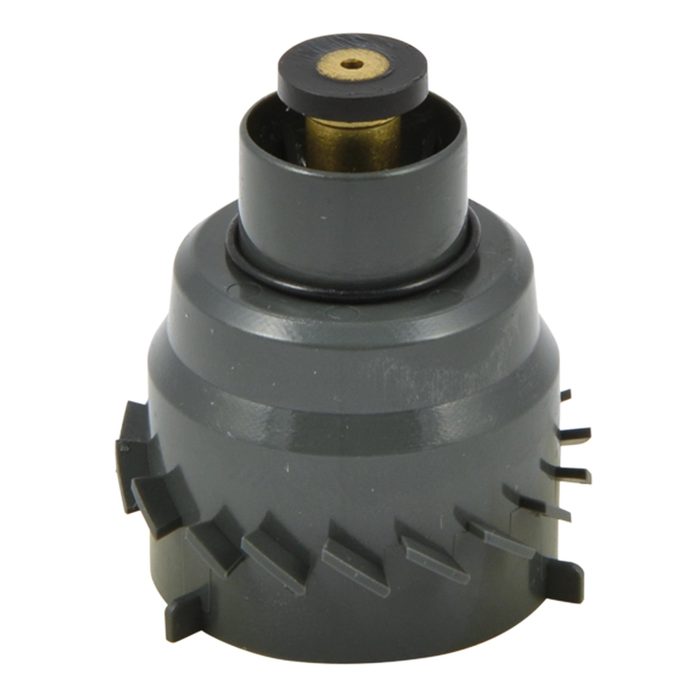

![[145654] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 5 µm](/web/image/product.template/279311/image_128/%5B145654%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=a7e72e3)
|
Type number: 9210231 |
10.84 € | |
