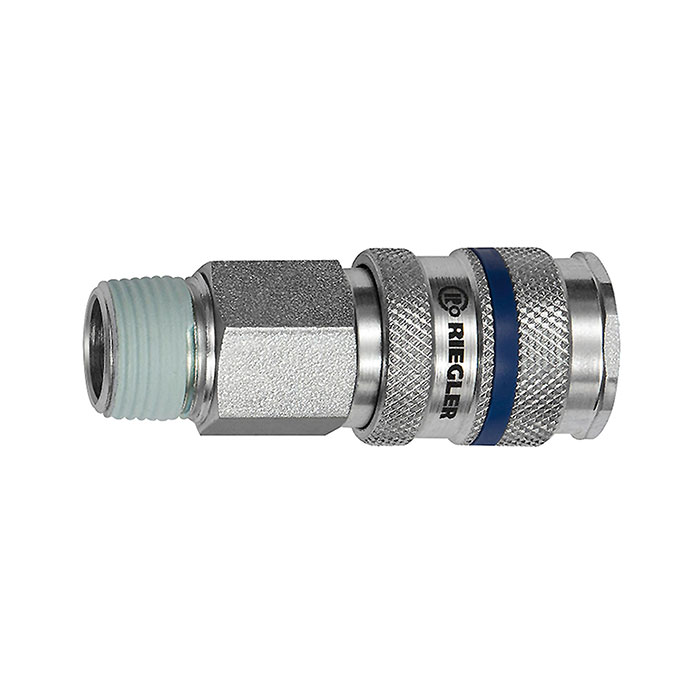

RIEGLER Quick-connect coupling I.D. 7.8, Steel, R 3/8 ET
Type number: 244.62-E
EAN: 4047322568050
Quick-release coupling NW 7.8, steel, R 3/8 AG, operating pressure 0 - 35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 61 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | R 3/8 AG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
