RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.5-8 bar
Type number: FUM 621-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 3-part »FUTURA-mini«, PC container, Standard pressure gauge, Size 0, G 1/4, Control range 0.5 - 8 bar, Semi-auto.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 0 |
| A | 129 mm |
| B | 168 mm |
| C | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

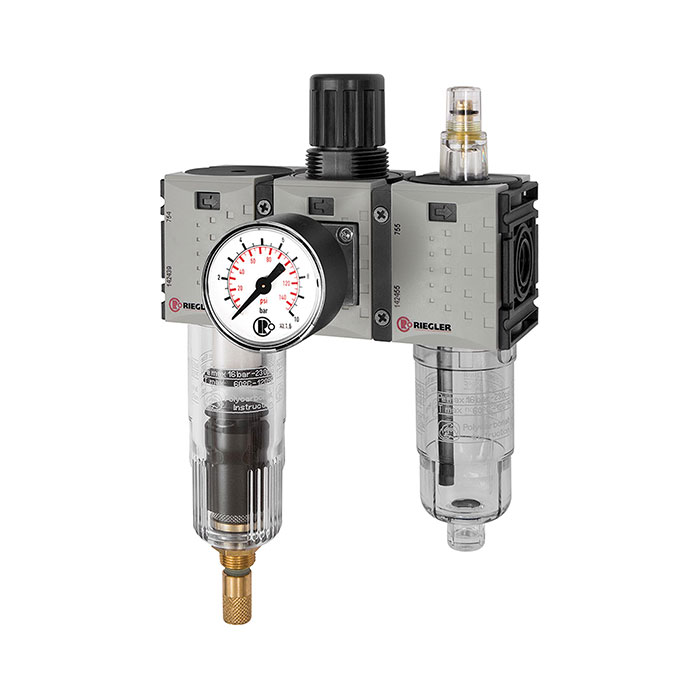

![[142481] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.1-4 bar](/web/image/product.template/210784/image_128/%5B142481%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.1-4%20bar?unique=d18e760)
|
Type number: FUM 621-4 |
73.41 € | |
![[142484] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.1-4 bar](/web/image/product.template/210787/image_128/%5B142484%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.1-4%20bar?unique=6f50c55)
|
Type number: FUM 633-4 |
110.31 € | |
![[142487] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.1-4 bar](/web/image/product.template/210790/image_128/%5B142487%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.1-4%20bar?unique=41c19bc)
|
Type number: FUM 633-4-C |
124.12 € | |
![[142489] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.5-10 bar](/web/image/product.template/210792/image_128/%5B142489%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.5-10%20bar?unique=27f60b2)
|
Type number: FUM 633-10-C |
124.12 € | |
![[142483] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.5-10 bar](/web/image/product.template/210786/image_128/%5B142483%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.5-10%20bar?unique=74e6106)
|
Type number: FUM 621-10 |
73.41 € | |
![[142486] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.5-10 bar](/web/image/product.template/210789/image_128/%5B142486%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.5-10%20bar?unique=67afb66)
|
Type number: FUM 633-10 |
110.31 € | |

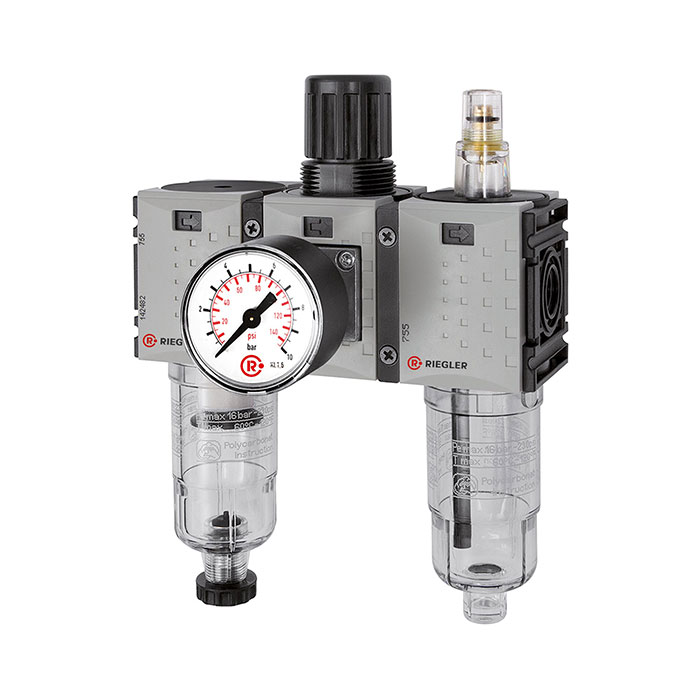

![[142488] RIEGLER Service unit 3-part »FUTURA-mini« PC container, G 1/4, 0.5-8 bar](/web/image/product.template/210791/image_128/%5B142488%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20G%201-4%2C%200.5-8%20bar?unique=ac11bf0)
|
