RIEGLER 3/2-way valve, electropneumatic, monostable, G 3/8, NC, 110 V AC

https://www.filcom-technik.de/web/image/product.template/275831/image_1920?unique=8f9b3c7

Type number: 517.32.38.NC.110A

98.91 € 98.91 EUR 98.91 € VAT Included

115.44 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145907

EAN :

4047322774222

Category :

Valves Electropneumatically Operated

Weight :

0.29 kg

3/2-way valve, electropneumatic, monostable, G 3/8, NC, 110 V AC, 50/60 Hz, p = 2.5 ? 10 bar, aluminum

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 2.5 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Manual override resting
DN 45364
Function 3/2 NC
Actuation monostable
Symbol 33
Connection G 3/8
Flow 1 1560 Nl/min
Flow 2 2150 Nl/min
Class name PLUS
Tension 110 V, 50/60 Hz
Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar

Maintenance, wear and spare parts

Product Price

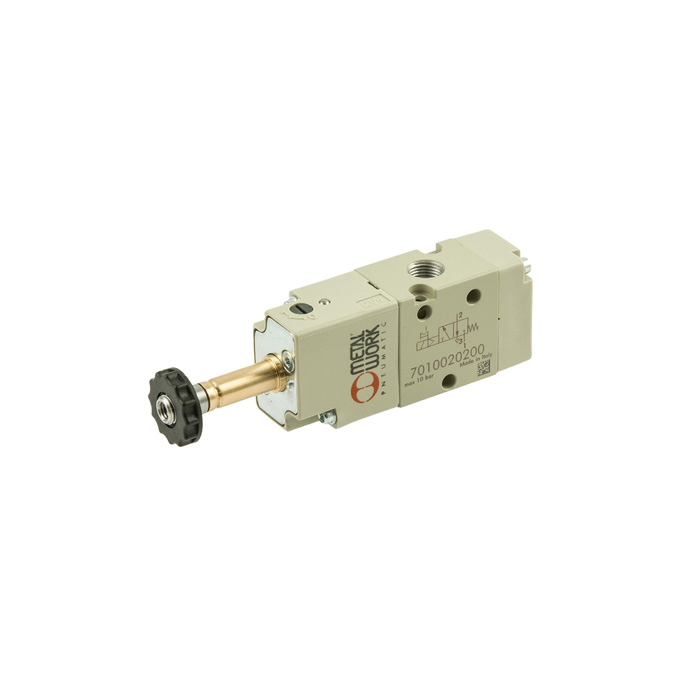

[145697] RIEGLER 3/2-way valve, electropneumatic, monostable, G 3/8, NC

Type number: 7040020200

 87.57 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA

Type number: 400-514-07

 9.87 €
