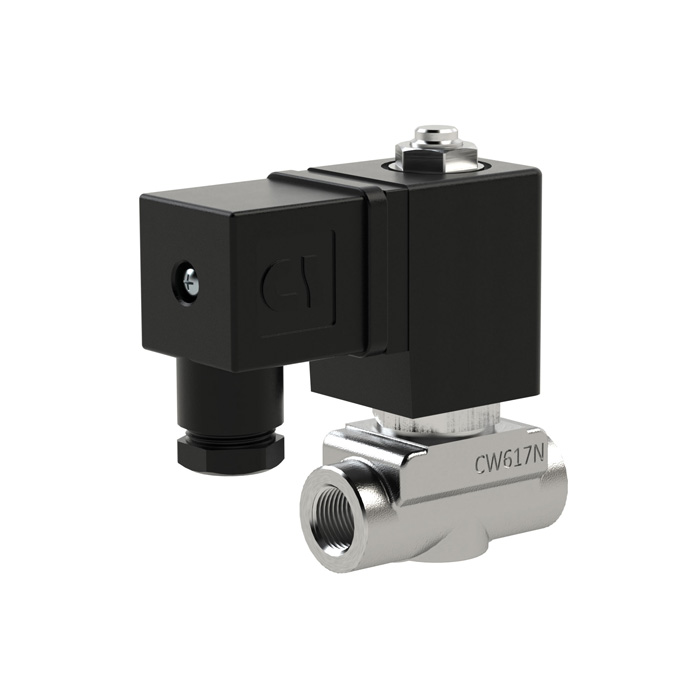

RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-8, NBR, direct, 24V DC
Typennummer: MVA.14.ES.24D.N.RD.4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, NC, Stain.steel, G1/4, DN4,0, PN0-8bar, NBR, direct.oper., 24V DC, Med.temp -20 to 85, Ambi.temp -20 to 55
| Housing | Stainless steel |
| Sealing material | NBR |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/4 |
| DN | 4 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| Class name | PLUS |
| Voltage tolerance | ± 10% according to VDE 0580 |
| Power consumption | 6,5W |
| Electrical connection | Cable plug in accordance with DIN EN 175301-803 design A |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
