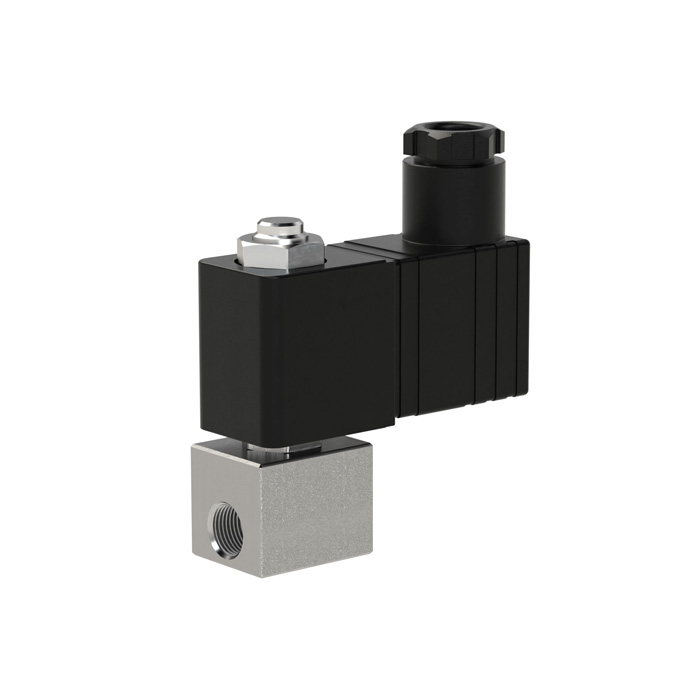

RIEGLER 2/2 MV, NC, ES, G1/8, DN 2.5, PN 0-14, FPM, direct, 24V DC
Typennummer: MVA.18.ES.24D.F.RD.2,5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2 MV made of stainless steel, for industrial systems, max. 14 bar - Type MVA.18.ES.24D.F.RD.2,5
The RIEGLER 2/2 MV, NC, ES, G1/8, DN 2.5, PN 0-14, FPM, direct, 24V DC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel with FPM seals. The operating pressure range is 0 bar to 14 bar. The permissible medium temperature is between -15 °C and 100 °C. Connection thread G 1/8 - suitable for common industry standards. Operating voltage 24 V DC, power consumption 6.5 W, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel |
| Sealing material | FPM |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 14 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/8 |
| DN | 45414 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| Class name | PLUS |
| Voltage tolerance | ± 10% according to VDE 0580 |
| Power consumption | 6,5W |
| Electrical connection | Cable plug, industrial standard, type B - EN 175301-803-B |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146068] RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-8, FPM, direct, 24V DC](/web/image/product.template/275887/image_128/%5B146068%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-4%2C%20DN%204.0%2C%20PN%200-8%2C%20FPM%2C%20direct%2C%2024V%20DC?unique=95cf315)
|
Typennummer: MVA.14.ES.24D.F.RD.4 |
142.67 € | |

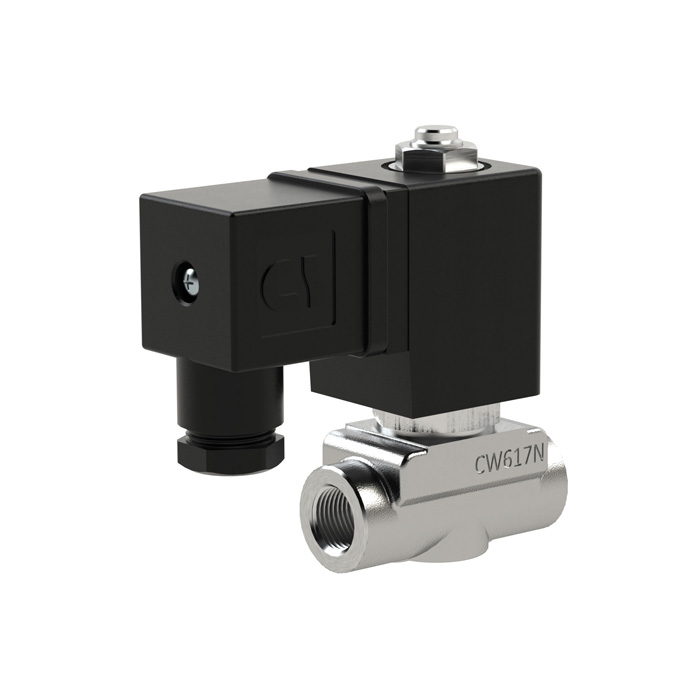

![[146070] RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-8, NBR, direct, 24V DC](/web/image/product.template/275889/image_128/%5B146070%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-4%2C%20DN%204.0%2C%20PN%200-8%2C%20NBR%2C%20direct%2C%2024V%20DC?unique=0794d33)
|
Typennummer: MVA.14.ES.24D.N.RD.4 |
135.55 € | |
