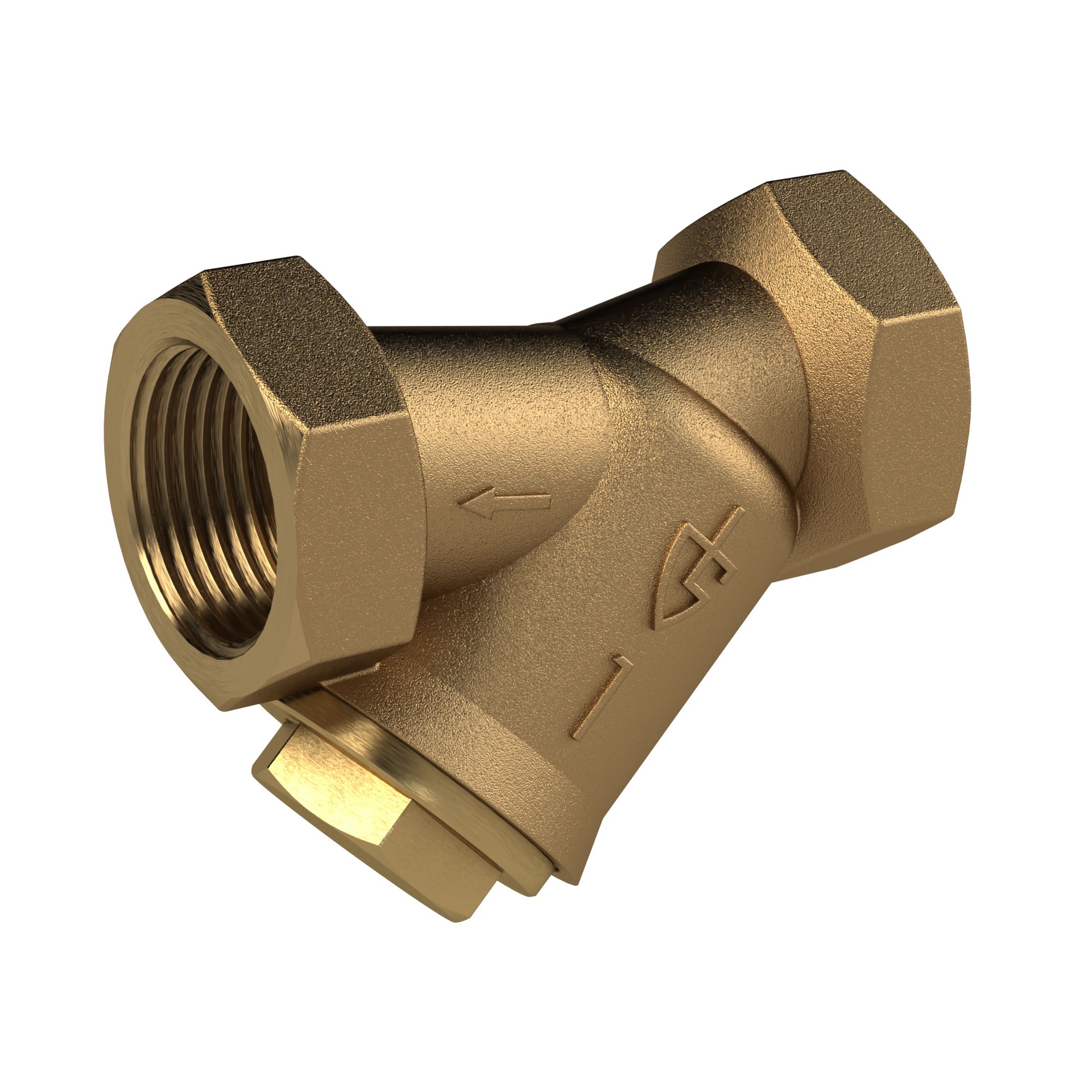

RIEGLER strainer, gunmetal, G 2, DN 50, MW 0.75 mm
Type number: SCHFR.G2.MW0,75
EAN: 4047322793001
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2x3/2-way valve, electropneumatic, monostable, G 1/4, NC, 230 V AC, 50/60 Hz, p = 2.5 ? 10 bar, aluminum
| L | 146 mm |
| Mesh size | 0.75 mm |
| SW 1 | 70 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| DN | 50 |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 130 °C |
| Max. operating pressure | 25 bar |
| SW 2 | 41 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| C | 91 mm |
| Sieve insert | Stainless steel double sieve insert |
| Class name | FLEX |
| Thread | G 2 |
| Head piece | Brass |
| Sealing material | NBR |
| Housing | Gunmetal |
