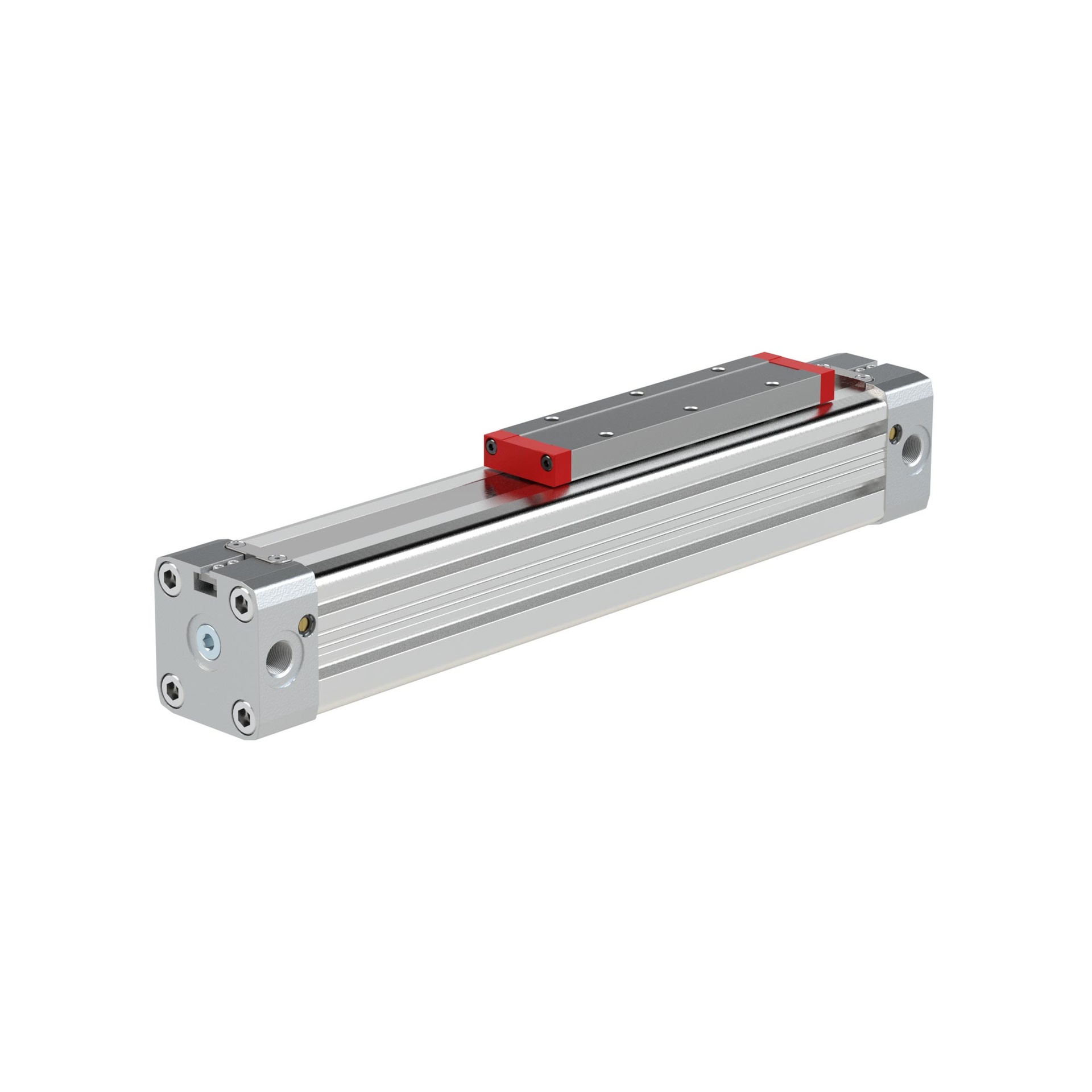

RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 450, standard
Typennummer: ZRL1F.250450
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Piston rod-free cylinder ZRL1F, Ø 25, stroke 450, standard, working pressure 0.5 - 8 bar, temperature -10 to 80 °C
| Sealing material | Oil-resistant plastic (NBR) |
| Medium | Filtered compressed air (max. 50 µm) |
| Screws | Steel 10.9 galvanized |
| Temperature range min. | -10 °C |
| Working pressure min. | 0.5 bar |
| Piston Ø | 25 mm |
| Air connection | 3-fold on both sides |
| Stroke | 450 mm |
| Working pressure max. | 8 bar |
| Temperature range max. | 80 °C |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Installation position | any |
| Function | double-acting |
| Sealing tapes | Stainless steel |
| Connection | G 1/8 |
| Damping | with adjustable damping |
| Magnet | with magnet |
| Class name | PLUS |
| Load clutch | Rigid |
