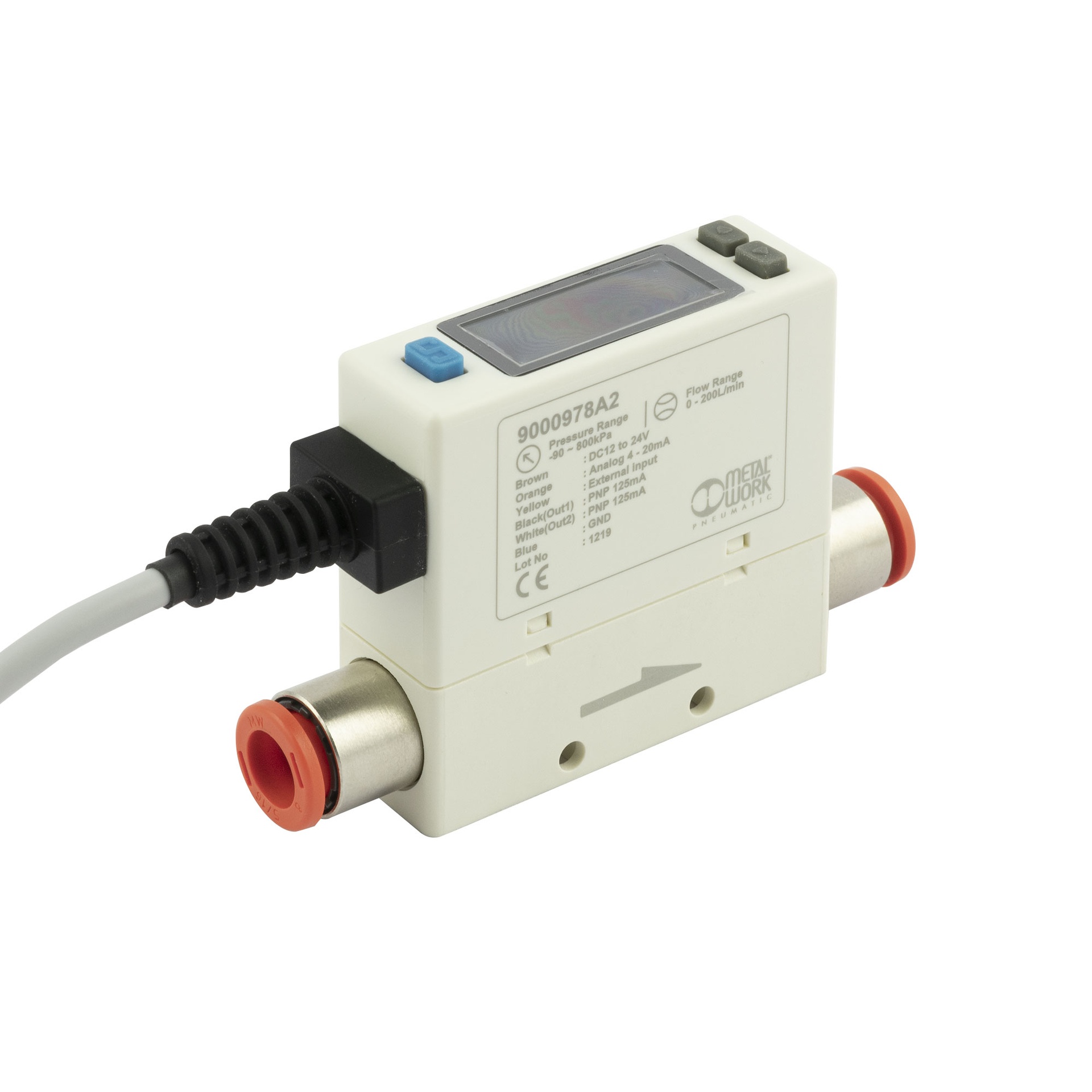

RIEGLER flow meter "FLUX 0", 0 ? 200 Nl/min, Ø 8 mm, 4 ? 20 mA
Typennummer: 9000978A2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Flow meter "FLUX 0", 0 ? 200 Nl/min, Ø 8 mm, p1 = -0.9 ? 8 bar, T = 0 ? 50 °C, 12 ? 24 V DC, 4 ? 20 mA, PNP, 2 m cable
| Function | Flow meter/switch, pressure gauge, pressure switch |
| Connection | Push-in connection Ø 8 mm |
| WiFi | without |
| Supply voltage | 12 bis 24 +/-10 % V DC |
| Compatible with app | no |
| IO-Link | without |
| Flow measuring range min. | 0 Nl/min |
| Flow measuring range max. | 200 Nl/min |
| Pressure sensor | with |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 26.4 V DC |
| Scope of delivery | Plug with 2 m cable |
| Analogue output | 4 - 20 mA |
| Output of the measured values | via cable and display |
| Digital output | 2 PNP |
| Hysteresis | adjustable |
| Flow direction | unidirectional |
| Display | with |
| Operating pressure min. | -0.9 bar |
| Measuring system | thermal |
| Series | FLUX 0 |
| Medium | filtered, unlubricated compressed air and neutral gases |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Housing | Technopolymer |
| BG | 0 |
| Temperature range min. | 0 °C |
| Inlet pressure max. | 10 bar |
| Temperature range max. | 50 °C |
| B | 52 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Max. operating pressure | 8 bar |
| A | 83 mm |
| Protection class | IP 40 |
| Class name | MAX |
| Theme shop | SAFETY |
