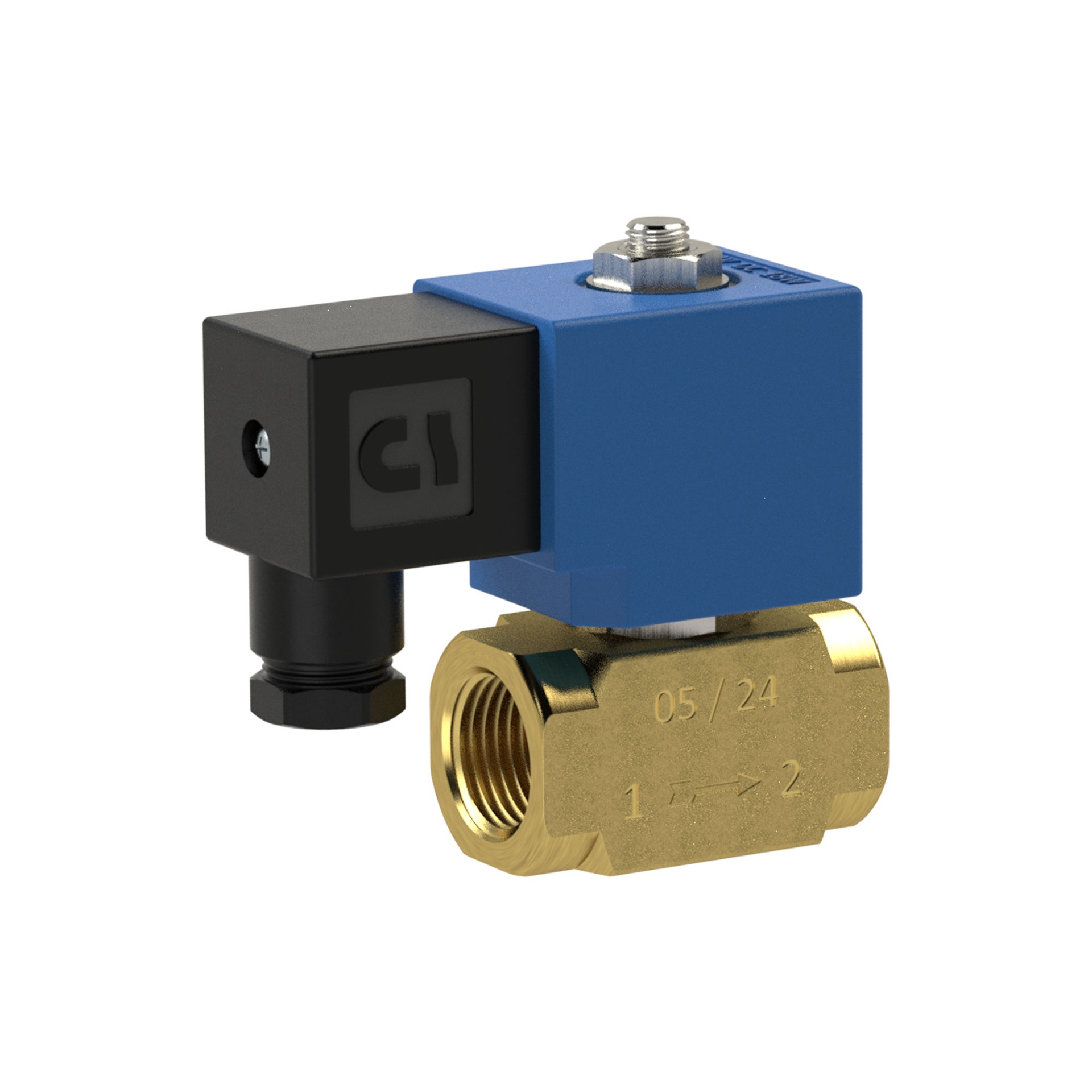

RIEGLER 2/2-way valve, MS, NC, direct acting, 230 V, G 1/2, PN 0-6 bar, NBR
Typennummer: MVA.MS.230V.G12.0-6B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, brass, NC, direct operated, 230 V, 50 Hz, medium temperature -10 °C - 80 °C, G 1/2, PN 0 - 6 bar, NBR
| Opening | 6 mm |
| C | 80.5 mm |
| A | 79.5 mm |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Interior parts | Brass and stainless steel |
| Valve seat | Stainless steel |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Thread standard | DIN EN ISO 228-1 |
| Design | 1 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Operating pressure min. | 0 bar |
| B | 50 mm |
| Max. operating pressure | 6 bar |
| Ambient temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Medium temperature max. | 80 °C |
| Class name | EASY |
| Thread | G 1/2 IG |
| Protection class | IP 65 |
| Housing | Brass |
| Sealing material | NBR |
