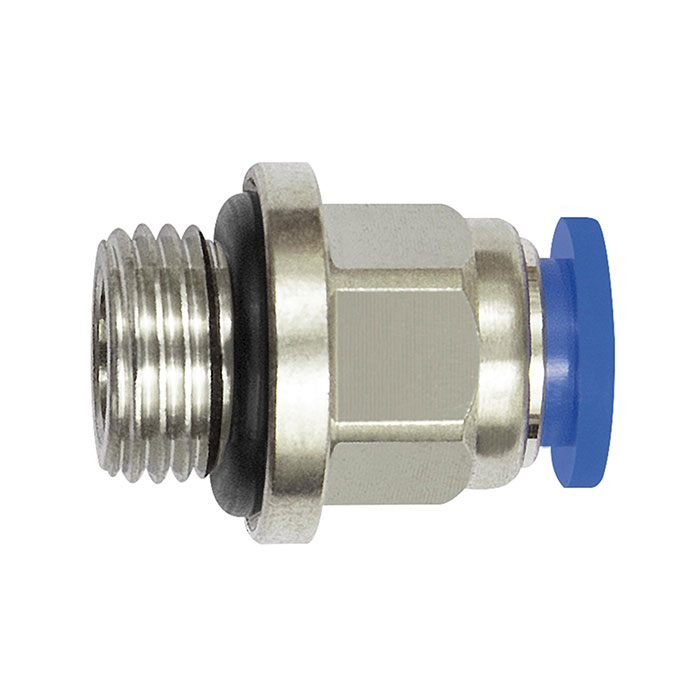

RIEGLER Straight push-in fitting »Blue Series« mini, G 1/8 o., hose Ø 6
Type number: 122.018-6M
EAN: 4047322582292
Straight push-in fitting "Blue series" mini, G 1/8 a., for outer tube Ø 6 mm, pmax 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 10 mm |
| Thread standard | DIN EN ISO 228-1, NBR O-ring |
| for hose outer Ø | 6 mm |
| L1 | 18.3 mm |
| Class name | EASY |
