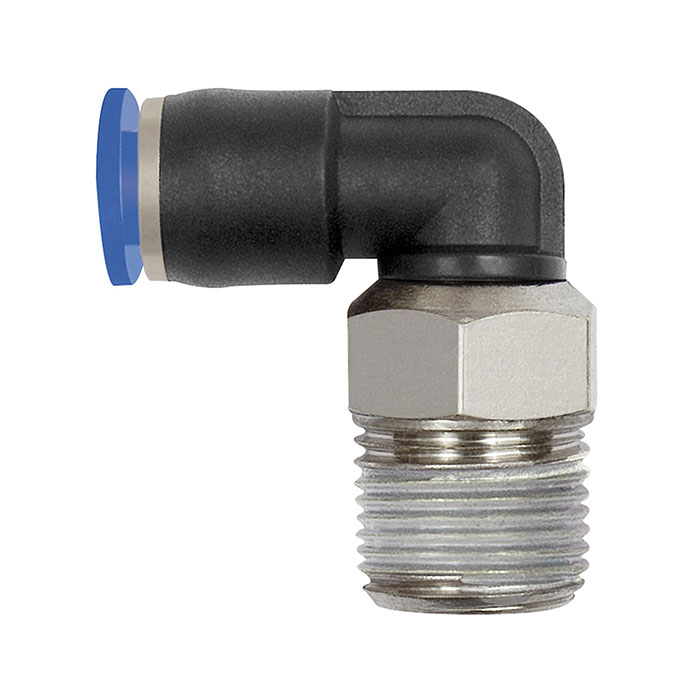

RIEGLER Push-in L-fitting »Blue Series« mini, rotating, R 1/8
Typennummer: 126.018-6M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in L-fitting »Blue Series« mini, rotating, R 1/8, for hose exterior Ø 6 mm, pmax 10 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 10 mm |
| Thread standard | ISO 7-1, thread coating |
| for hose outer Ø | 6 mm |
| L1 | 16.7 mm |
| L2 | 19 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148824] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, G 1/8](/web/image/product.template/210532/image_128/%5B148824%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20G%201-8?unique=d90f212)
|
Typennummer: 125.018-6M |
1.84 € | |
![[148823] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, G 1/8](/web/image/product.template/210531/image_128/%5B148823%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20G%201-8?unique=20c992f)
|
Typennummer: 125.018-4M |
1.76 € | |
![[148813] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M3](/web/image/product.template/210523/image_128/%5B148813%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M3?unique=93ab864)
|
Typennummer: 125.003-3M |
1.77 € | |
![[148814] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M3x0.5](/web/image/product.template/210524/image_128/%5B148814%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M3x0.5?unique=09f36b6)
|
Typennummer: 125.003-4M |
1.77 € | |
![[148815] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M5](/web/image/product.template/210525/image_128/%5B148815%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5?unique=f246275)
|
Typennummer: 125.005-3M |
1.77 € | |
![[148816] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M5x0.8](/web/image/product.template/210526/image_128/%5B148816%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5x0.8?unique=2793614)
|
Typennummer: 125.005-4M |
1.77 € | |
![[148817] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M5x0.8](/web/image/product.template/210527/image_128/%5B148817%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5x0.8?unique=3630275)
|
Typennummer: 125.005-6M |
1.77 € | |
![[148818] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M6](/web/image/product.template/210528/image_128/%5B148818%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6?unique=48a021e)
|
Typennummer: 125.006-3M |
1.77 € | |
![[148820] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M6x1](/web/image/product.template/210530/image_128/%5B148820%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6x1?unique=f1b3040)
|
Typennummer: 125.006-6M |
1.77 € | |
![[148819] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, M6x1](/web/image/product.template/210529/image_128/%5B148819%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6x1?unique=489825a)
|
Typennummer: 125.006-4M |
1.77 € | |
![[148825] RIEGLER Push-in L-fitting »Blue Series« mini, rotating, R 1/8](/web/image/product.template/210533/image_128/%5B148825%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20R%201-8?unique=c35ea4f)
|
Typennummer: 126.018-4M |
1.57 € | |
