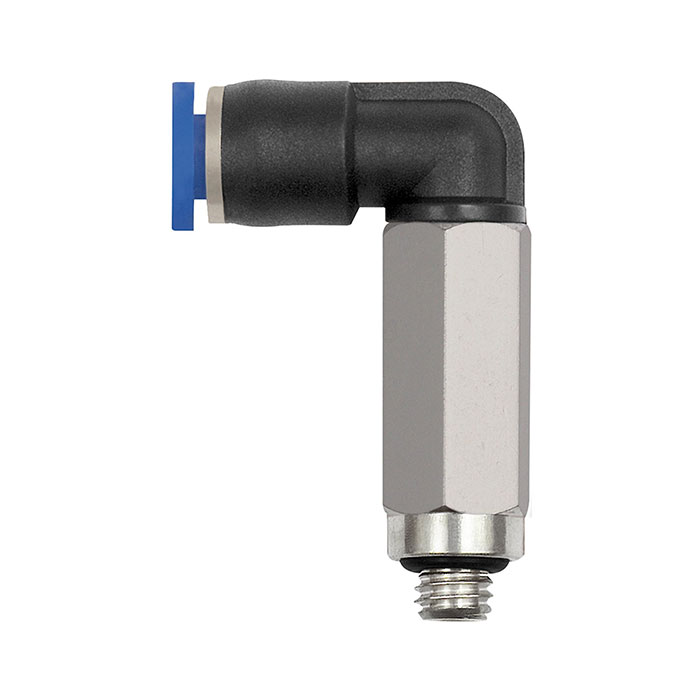

RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M3
Typennummer: 127.003-3M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-fitting "Blue series" mini made of plastic or nickel-plated brass - type 127.003-3M
The RIEGLER L push-in fitting "Blue series" mini, long, rotatable, M3 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread M3 (DIN 13-1, NBR O-ring) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M3 |
| SW | 5.5 mm |
| Thread standard | DIN 13-1, NBR O-ring |
| for hose outer Ø | 3 mm |
| L1 | 11.4 mm |
| L2 | 19.9 mm |
| Class name | EASY |
