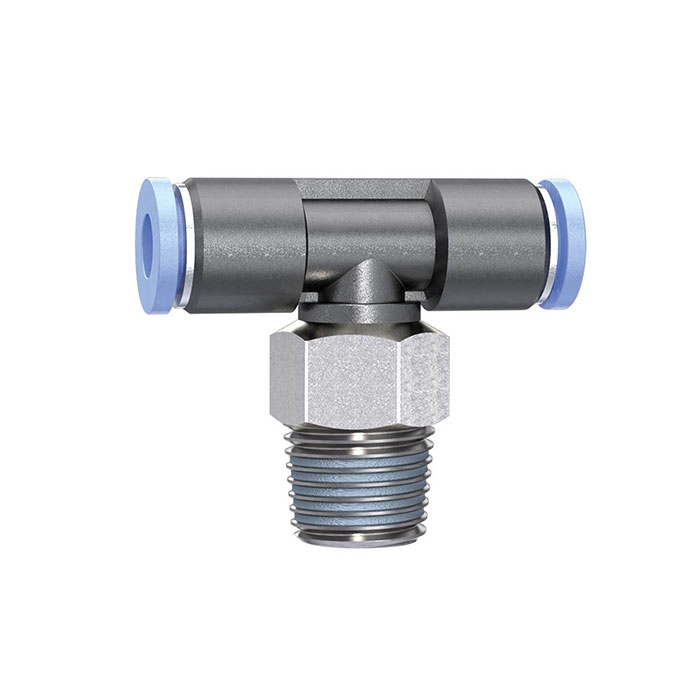

RIEGLER Push-in T-fitting »Blue Series« mini, rotating, R 1/8
Typennummer: 132.018-4M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Steckverschraubung »Blaue Serie« mini, drehbar, R 1/8, für Schlauch-Außen-Ø 4 mm, pmax 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 10 mm |
| Thread standard | ISO 7-1, thread coating |
| for hose outer Ø | 4 mm |
| L1 | 29.4 mm |
| L2 | 19.1 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148848] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, G 1/8](/web/image/product.template/210556/image_128/%5B148848%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20G%201-8?unique=4c2ed9b)
|
Typennummer: 131.018-6M |
2.13 € | |
![[148847] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, G 1/8](/web/image/product.template/210555/image_128/%5B148847%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20G%201-8?unique=80c941c)
|
Typennummer: 131.018-4M |
2.13 € | |
![[148839] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M3](/web/image/product.template/210547/image_128/%5B148839%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M3?unique=4217b65)
|
Typennummer: 131.003-3M |
2.01 € | |
![[148840] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M3](/web/image/product.template/210548/image_128/%5B148840%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M3?unique=b047dc8)
|
Typennummer: 131.003-4M |
2.01 € | |

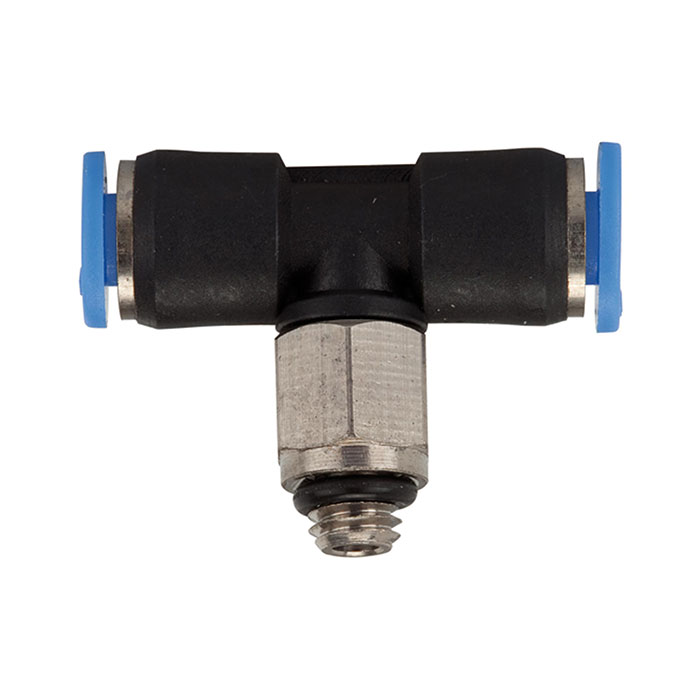

![[148842] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M5](/web/image/product.template/210550/image_128/%5B148842%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5?unique=f659541)
|
Typennummer: 131.005-4M |
2.01 € | |
![[148841] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M5](/web/image/product.template/210549/image_128/%5B148841%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5?unique=fbdaf48)
|
Typennummer: 131.005-3M |
2.01 € | |
![[148843] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M5](/web/image/product.template/210551/image_128/%5B148843%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M5?unique=346b200)
|
Typennummer: 131.005-6M |
2.01 € | |
![[148844] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M6](/web/image/product.template/210552/image_128/%5B148844%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6?unique=db021dc)
|
Typennummer: 131.006-3M |
2.01 € | |
![[148845] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M6](/web/image/product.template/210553/image_128/%5B148845%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6?unique=69d402d)
|
Typennummer: 131.006-4M |
2.01 € | |
![[148846] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, M6](/web/image/product.template/210554/image_128/%5B148846%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20M6?unique=f41919d)
|
Typennummer: 131.006-6M |
2.01 € | |
![[148850] RIEGLER Push-in T-fitting »Blue Series« mini, rotating, R 1/8](/web/image/product.template/210558/image_128/%5B148850%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20rotating%2C%20R%201-8?unique=de24833)
|
Typennummer: 132.018-6M |
1.93 € | |
