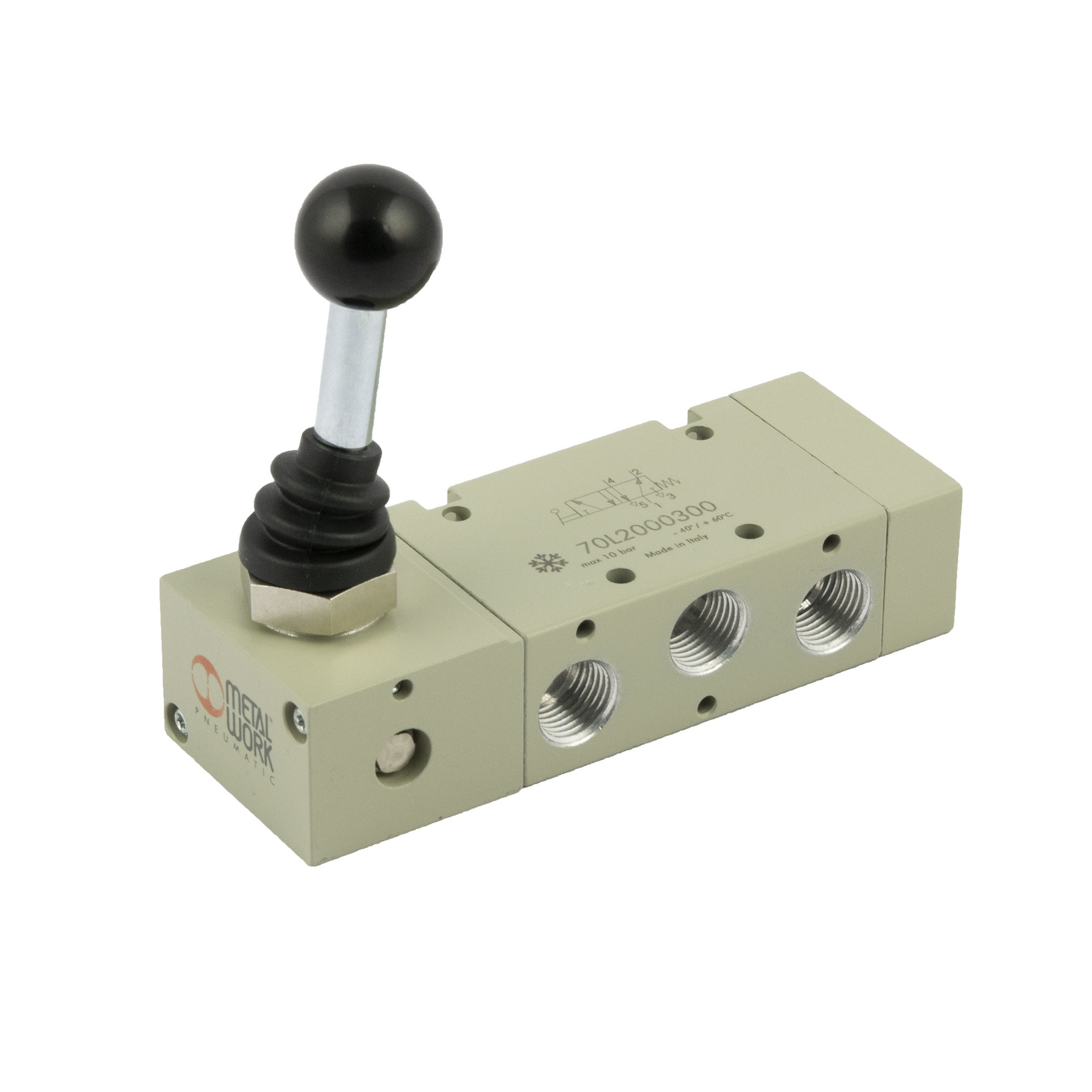

RIEGLER 5/2-way valve low temperature, manual 90° lever, monostable, G 1/4
Type number: 70L2000300
EAN: 4047322806954
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way valve low temperature, electro-pneumatic, bistable, G 3/8, 110 V AC, 50/60 Hz, pmax 10 bar, T = -40 ? 60 °C, aluminum
| Execution | manually operated |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 1100 Nl/min |
| Flow_1 | 750 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | monostable |
| DN | 8 |
| Symbol | 27 |
| Operating pressure min. | -0.99 bar |
| Temperature range min. | -40 °C |
| Function | 5/2 |
| Max. operating pressure | 10 bar |
| Temperature range max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 1/4 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Spring | Special steel |
