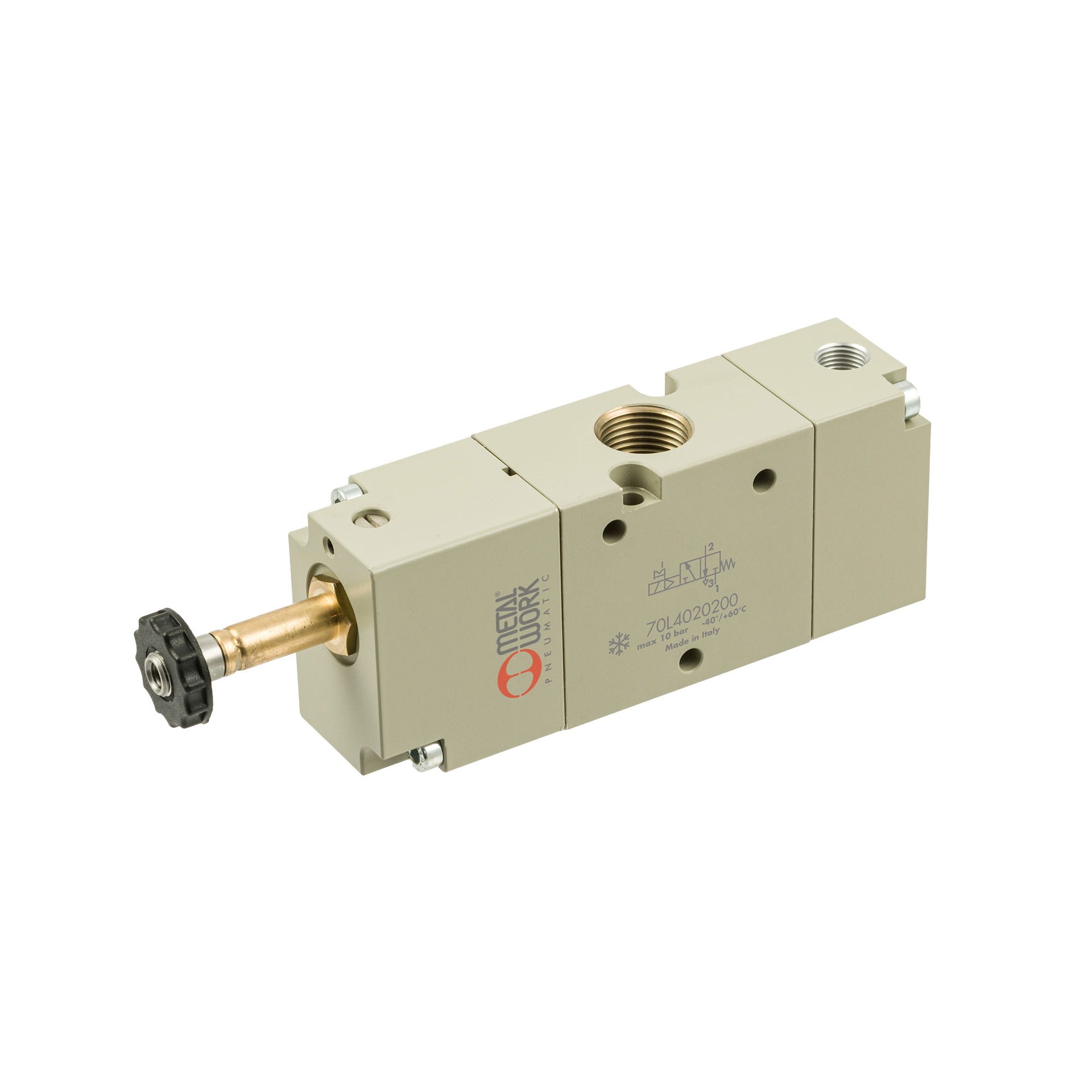

RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 3/8, NC
Type number: 70L4020200
EAN: 4047322807203
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
149935EAN :
4047322807203Category :
Valves Electropneumatically OperatedWeight :
0.38 kgAutogenous welding box, 17 mm, 8 welding inserts 0.5 - 30 mm, blade cutting insert 3 - 100 mm with ring nozzles, handle, accessories
| Execution | electropneumatic |
| DN | 133 |
| Control air supply | internal |
| Operating pressure min. at -40 to -10 °C | 5 bar |
| Operating pressure min. at -10 to 60 °C | 3 bar |
| Tension | ohne Spannung |
| Symbol | 48 |
| Scope of delivery | without plug and coil |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 2150 Nl/min |
| Flow_1 | 1560 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | monostable |
| Ambient temperature min. | -40 °C |
| Medium temperature min. | -40 °C |
| Max. operating pressure | 10 bar |
| Function | 3/2 NC |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 3/8 IG |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
| Spring | Special steel |
