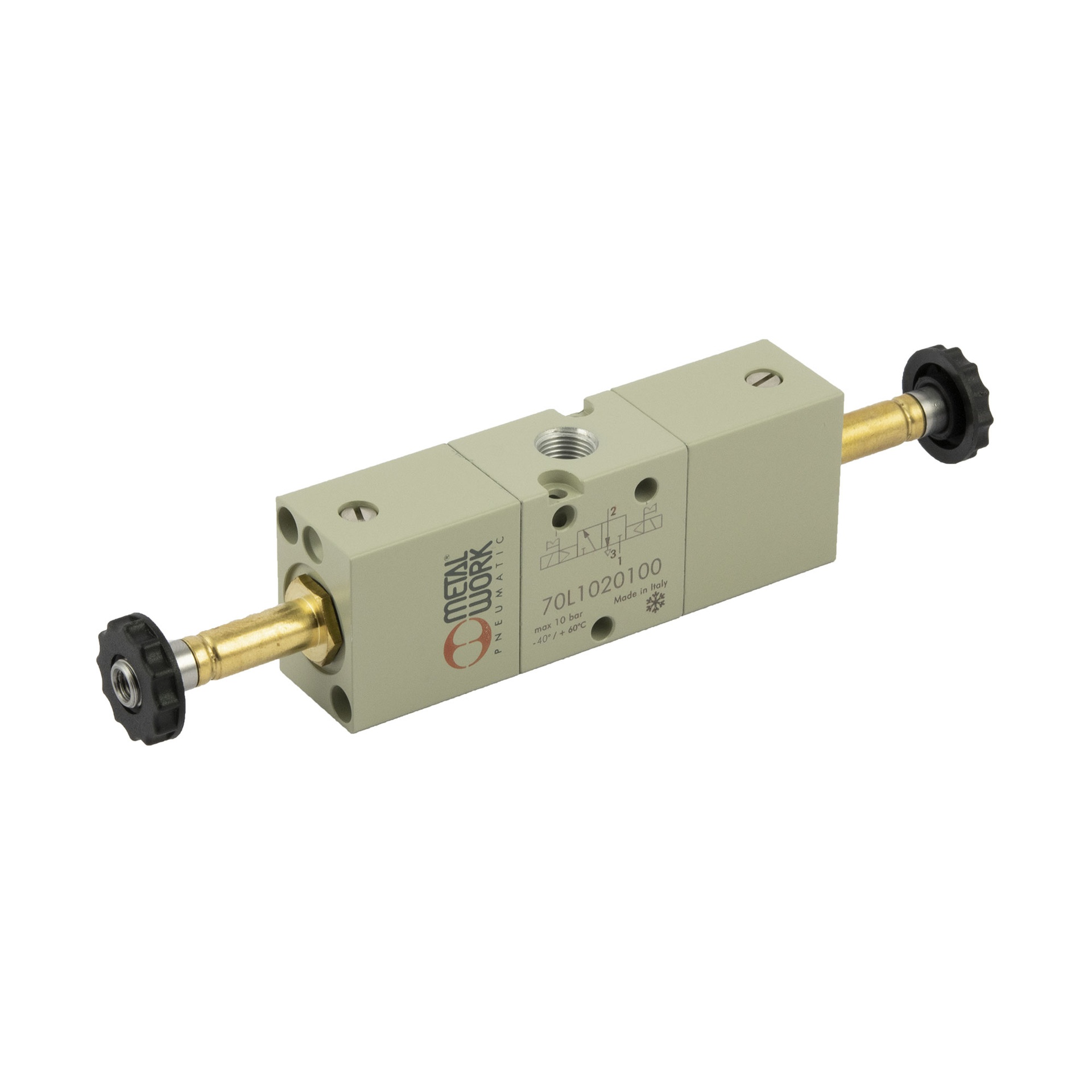

RIEGLER 3/2-way valve, cryogenic, electropneumatic, bistable, G 1/8

https://www.filcom-technik.de/web/image/product.template/284714/image_1920?unique=4c4e850

Typennummer: 70L1020100

125.68 € 125.68 EUR 125.68 € VAT Included

146.69 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

149936

EAN :

4047322807210

Category :

Valves Electropneumatically Operated

Weight :

0.20 kg

RIEGLER 3/2-way valve low temperature for pneumatic control, max. 10 bar, G 1/8 IG - Type 70L1020100

The RIEGLER 3/2-way valve low-temperature, electropneumatic, bistable, G 1/8 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -40 °C and 60 °C. Connection thread G 1/8 IG - suitable for common industry standards. Suitable for filtered, dry and non-lubricated compressed air. Operating voltage without voltage. Precise directional control for defined movement sequences.

Field of application

Typical areas of application: Pneumatic controls and mechanical engineering.

Execution electropneumatic
Control air supply internal
Operating pressure min. at -40 to -10 °C 5 bar
Operating pressure min. at -10 to 60 °C 3 bar
Tension ohne Spannung
Symbol 49
Scope of delivery without plug and coil
Series Series 70 Low temperature
Medium filtered, dry and unlubricated compressed air
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow 2 550 Nl/min
Flow 1 400 Nl/min
Piston Nickel-plated aluminum
Actuation bistable
DN 5
Ambient temperature min. -40 °C
Medium temperature min. -40 °C
Function 3/2
Max. operating pressure 10 bar
Ambient temperature max. 60 °C
Medium temperature max. 60 °C
Valve body Aluminum
Connection G 1/8 FEMALE THREAD
Sealing material NBR
Class name PLUS
Manual override resting
Spring Special steel
