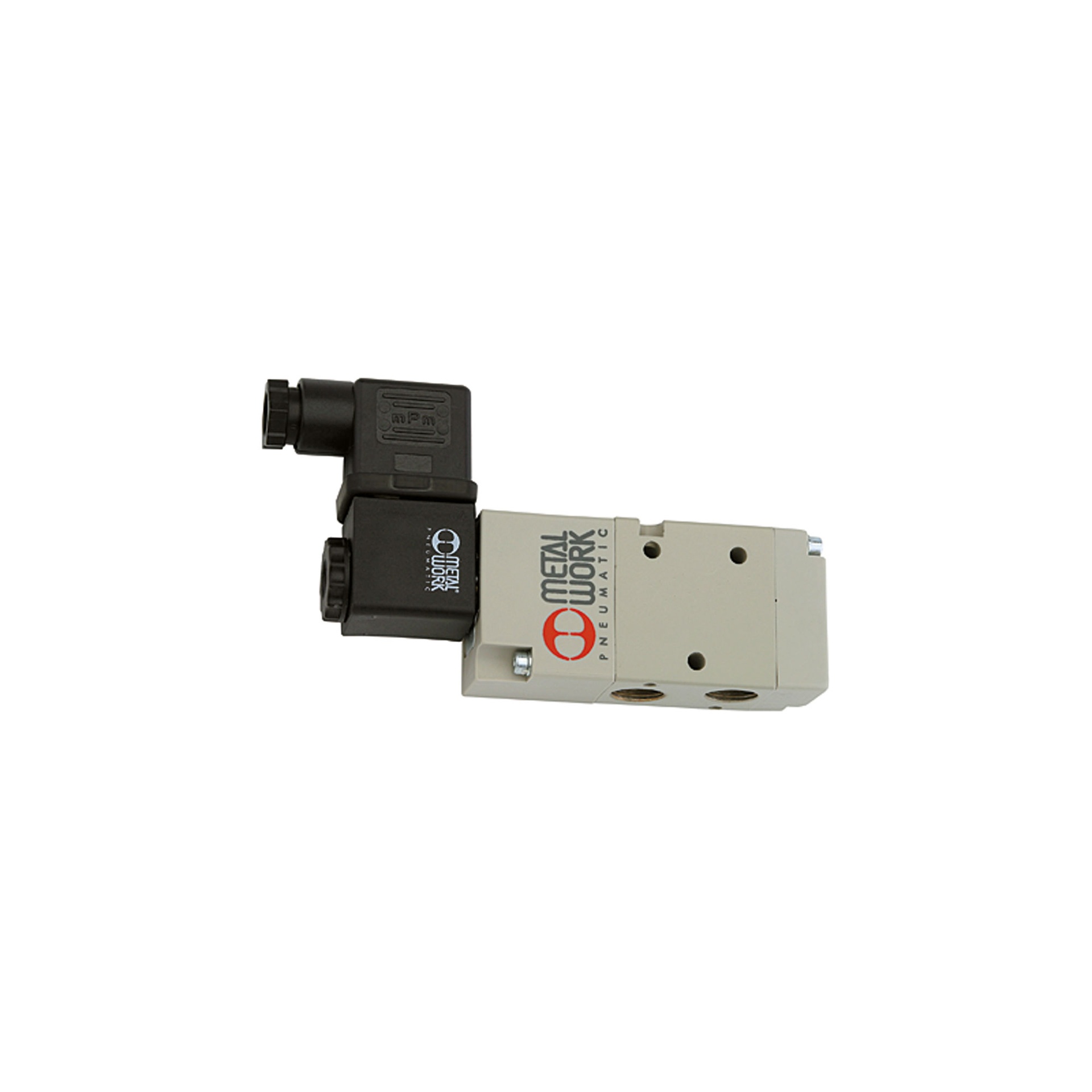

RIEGLER 3/2-way valve, low-temp., electro-pneumatic, mono, G 3/8, NO, 24 V AC
Typennummer: 517.TT.32.38.NO.24A
EAN: 4047322807876
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
150009EAN :
4047322807876Category :
Valves Electropneumatically OperatedWeight :
0.01 kg3/2-way valve low temperature, pneumatic, bistable, G 1/8, pmax 10 bar, T = -40 ? 60 °C, aluminum
| Execution | electropneumatic |
| DN | 133 |
| Control air supply | internal |
| Operating pressure min. at -40 to -10 °C | 5 bar |
| Operating pressure min. at -10 to 60 °C | 3 bar |
| Tension | 24 V AC |
| Symbol | 47 |
| Scope of delivery | with plug and coil |
| Frequency | 50/60 Hz |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 2150 Nl/min |
| Flow_1 | 1560 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | monostable |
| Ambient temperature min. | -40 °C |
| Medium temperature min. | -40 °C |
| Max. operating pressure | 10 bar |
| Function | 3/2 NO |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 3/8 IG |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
| Spring | Special steel |
