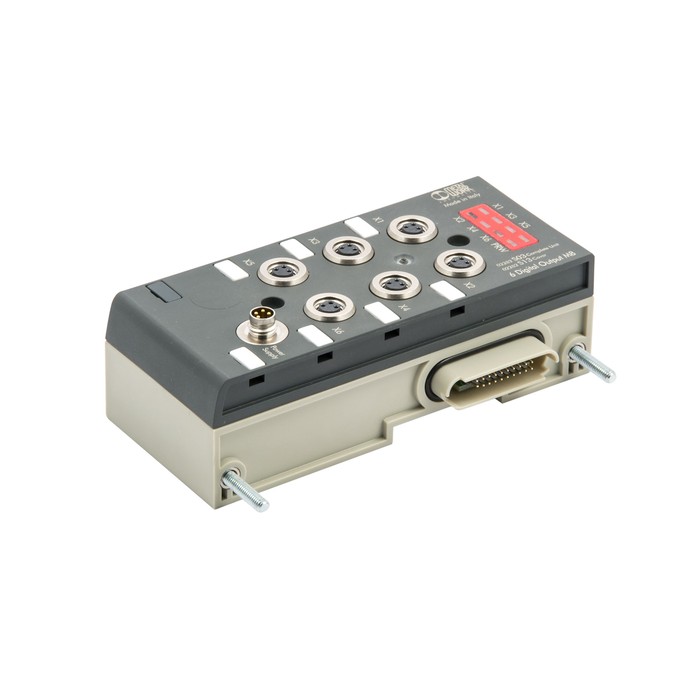

RIEGLER EB 80 signal module, 6x M8 digital outputs, power supply
Type number: 02282S03
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Signal module for valve terminal EB 80, 6x M8 digital outputs, electrical power supply
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Electrical connection | 6x M8 Buchse, 3-pol. (Signal), 1x M8 Stecker, 3-pol. (Strom) |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Output signal | PNP / NPN (mit Software konfigurierbar) |
| Execution | 6x M8 digitale Ausgänge + elektr. Energieversorgung |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Module type | S |
| Module name | Signal module |
| Output voltage | depending on the supply voltage |
| Protective measures | against overload, short circuit and reverse polarity at the outputs |
| Display of input activity | 60 |
| Display of output activity | one LED per output |
| Diagnostics | local with LED display and software information |
| Diagnostic signals | Under/overvoltage, short circuit, overload |
| Max. Current carrying capacity per slot | 1000 mA |
| Max. Current carrying capacity per module | 4000 mA |
