RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, R 3/8 o.

Price:

6.34 €

RIEGLER Straight push-in fitting »Blue Series«, Self-locking, R 1/8 o.
RIEGLER Straight push-in fitting »Blue Series«, Self-locking, R 1/8 o.
3.37 € 3.37 €
RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, R 3/8 o.
RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, R 3/8 o.
5.56 € 5.56 €

RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, R 3/8 o.

https://www.filcom-technik.de/web/image/product.template/210613/image_1920?unique=72bd0d7

Type number: 196.3812-2

EAN: 4047322593144

6.34 € 6.34 EUR 6.34 € VAT Included

8.89 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

151458

EAN :

4047322593144

Category :

Male Connectors

Weight :

0.10 kg

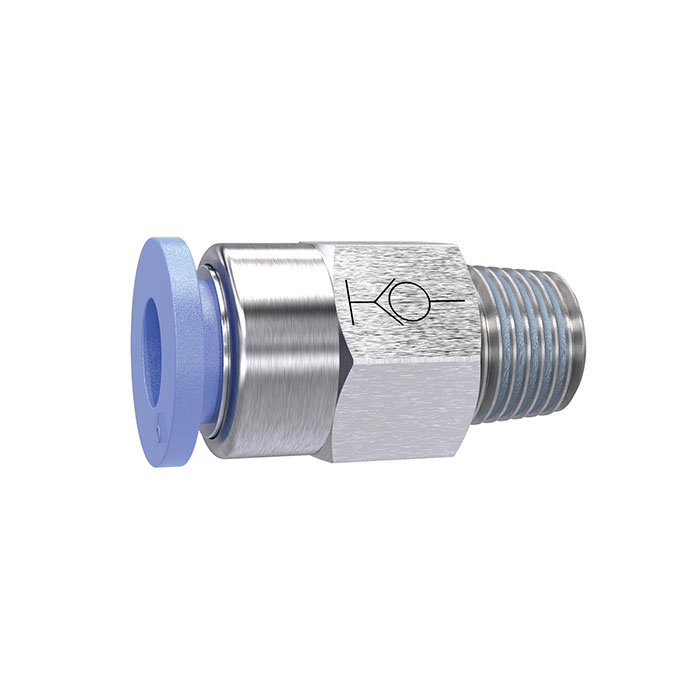

Ger. push-in fitting "Blue series" self-closing, R 3/8 a., f. male Ø 12 mm, pmax. 10 bar, plastic/MS nickel-plated

Temperature range min. 0 °C
Temperature range max. 60 °C
Medium Compressed air
Sealing material NBR
Series Blue series
Working pressure min. 0 bar
Working pressure max. 10 bar
Material Plastic or nickel-plated brass
Area of application Compressed air systems
Solder ring Blue plastic
Recommended hose PU or PA (nylon)
Thread R 3/8
SW 21 mm
Thread standard ISO 7-1
Function Self-locking
for hose outer Ø 12 mm
Execution With thread coating
L1 36.5 mm
Class name EASY
