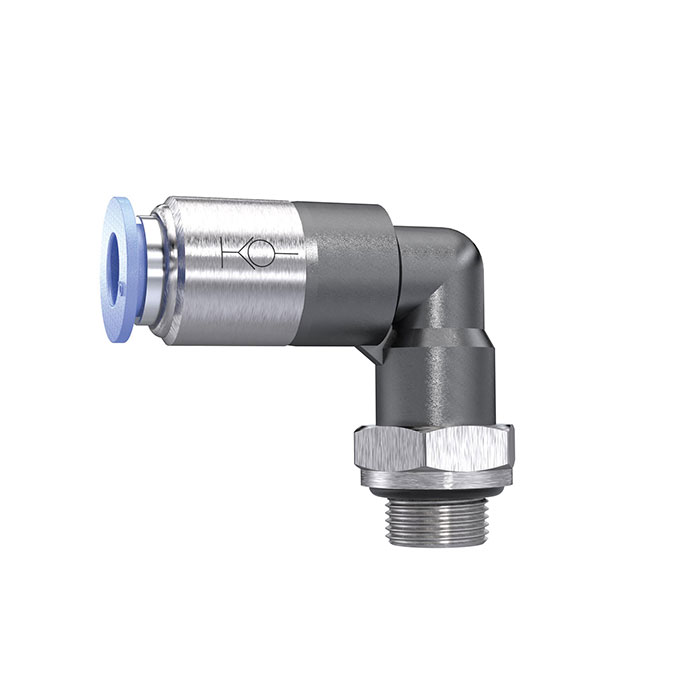

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/2 o.
Typennummer: 197.1212-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in L-fitting »Blue Series«, Self-locking, G 1/2 o., for hose exterior Ø 12 mm, pmax 10 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/2 |
| SW | 24 mm |
| Thread standard | DIN EN ISO 228-1 |
| Function | Self-locking |
| for hose outer Ø | 12 mm |
| Execution | With O-ring (NBR) |
| L1 | 47 mm |
| L2 | 32.5 mm |
| Class name | EASY |
| Construction method | rotatable |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151472] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/2 o.](/web/image/product.template/210627/image_128/%5B151472%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-2%20o.?unique=9f145c4)
|
Typennummer: 197.1210-2 |
7.09 € | |
![[151467] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/4 o.](/web/image/product.template/210622/image_128/%5B151467%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-4%20o.?unique=63a4ac3)
|
Typennummer: 197.148-2 |
3.51 € | |
![[151466] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/4 o.](/web/image/product.template/210621/image_128/%5B151466%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-4%20o.?unique=6e791b5)
|
Typennummer: 197.146-2 |
3.93 € | |
![[151468] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/4 o.](/web/image/product.template/210623/image_128/%5B151468%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-4%20o.?unique=f9f2fe3)
|
Typennummer: 197.1410-2 |
5.93 € | |
![[151465] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/8 o.](/web/image/product.template/210620/image_128/%5B151465%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-8%20o.?unique=7e2643c)
|
Typennummer: 197.188-2 |
3.51 € | |
![[151463] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/8 o.](/web/image/product.template/210618/image_128/%5B151463%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-8%20o.?unique=ac413d8)
|
Typennummer: 197.184-2 |
3.33 € | |
![[151464] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 1/8 o.](/web/image/product.template/210619/image_128/%5B151464%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%201-8%20o.?unique=ca87da6)
|
Typennummer: 197.186-2 |
3.33 € | |
![[151469] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 3/8 o.](/web/image/product.template/210624/image_128/%5B151469%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%203-8%20o.?unique=110bf72)
|
Typennummer: 197.388-2 |
4.13 € | |
![[151470] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 3/8 o.](/web/image/product.template/210625/image_128/%5B151470%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%203-8%20o.?unique=6370b0f)
|
Typennummer: 197.3810-2 |
5.78 € | |
![[151471] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, G 3/8 o.](/web/image/product.template/210626/image_128/%5B151471%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20G%203-8%20o.?unique=c25da00)
|
Typennummer: 197.3812-2 |
7.83 € | |
![[151462] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, M5 o.](/web/image/product.template/210617/image_128/%5B151462%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20M5%20o.?unique=e662598)
|
Typennummer: 197.56-2 |
2.87 € | |
![[151461] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, M5 o.](/web/image/product.template/210616/image_128/%5B151461%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20M5%20o.?unique=c3bf7a9)
|
Typennummer: 197.54-2 |
2.87 € | |
