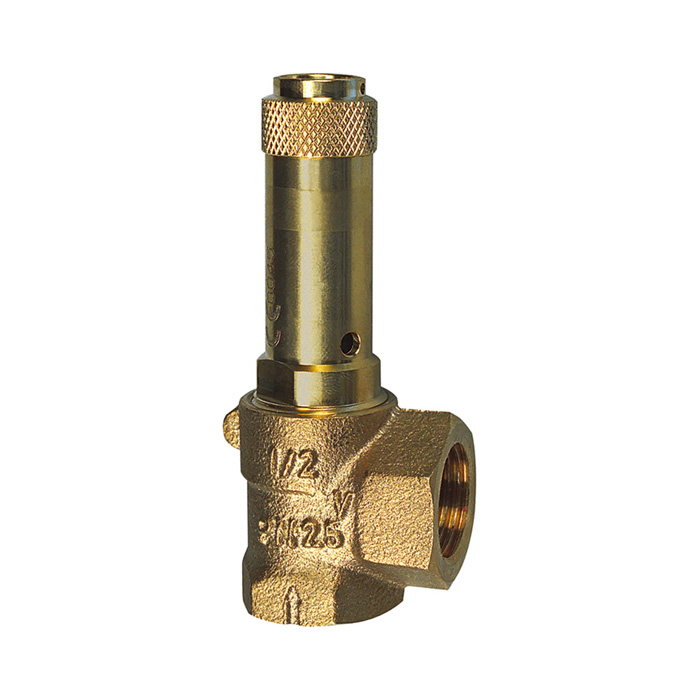

RIEGLER Angle safety valve, liquids, G 2, response pressure 2.9 bar
Typennummer: 221.08-2,9
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
151763EAN :
4047322595209Category :
Safety Valves & Pressure Relief ValvesWeight :
2.60 kgRIEGLER Gunmetal angle safety valve, for industrial systems, G 2 - Type 221.08-2.9
The RIEGLER angle safety valve, liquids, G 2, response pressure 2.9 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of gunmetal with NBR seals. The operating temperature is between -10 °C and 110 °C. G 2 connection thread - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Gunmetal |
| Membrane | NBR |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 1 - 16 bar (depending on the seal used) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 110 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Thread | G 2 |
| SW | 70 mm |
| Setting range min. | 1 bar |
| Response pressure min. | 2.9 bar |
| H | 200 mm |
| L1 | 56 mm |
| L2 | 48 mm |
| Setting range max. | 10 bar |
| Theme shop | SAFETY |
| Class name | FLEX |
