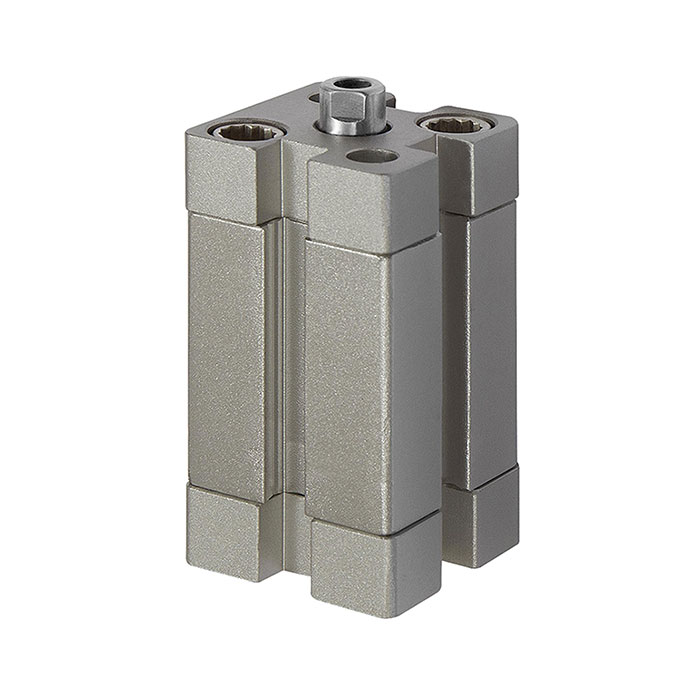

RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 25,M5,ISO21287
Typennummer: 15.EMI.16025
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, single-walled, threaded, solenoid, piston Ø 16, stroke 25, M5, max. working pressure 10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASE series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 16 mm |
| Function | single-acting |
| Stroke | 25 mm |
| Piston rods IG | M4x0.7 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155813] RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 10,M5,ISO21287](/web/image/product.template/213064/image_128/%5B155813%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2CM5%2CISO21287?unique=fa57740)
|
Typennummer: 15.EMI.12010 |
26.45 € | |
![[155812] RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213063/image_128/%5B155812%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=bd7df57)
|
Typennummer: 15.EMI.12005 |
26.33 € | |
![[155815] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213066/image_128/%5B155815%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=e0e7fda)
|
Typennummer: 15.EMI.16010 |
26.60 € | |
![[155816] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213067/image_128/%5B155816%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=46823d5)
|
Typennummer: 15.EMI.16015 |
27.26 € | |
![[155817] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213068/image_128/%5B155817%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=4535e39)
|
Typennummer: 15.EMI.16020 |
27.51 € | |
![[155814] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 5,M5,ISO21287](/web/image/product.template/213065/image_128/%5B155814%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2CM5%2CISO21287?unique=80c942d)
|
Typennummer: 15.EMI.16005 |
26.45 € | |
![[155820] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213071/image_128/%5B155820%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=777ef9e)
|
Typennummer: 15.EMI.20010 |
28.18 € | |
![[155821] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213072/image_128/%5B155821%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=9af478a)
|
Typennummer: 15.EMI.20015 |
28.81 € | |
![[155822] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213073/image_128/%5B155822%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=e0725b0)
|
Typennummer: 15.EMI.20020 |
28.95 € | |
![[155823] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213074/image_128/%5B155823%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=3020c00)
|
Typennummer: 15.EMI.20025 |
29.88 € | |
![[155819] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 5,M5,ISO21287](/web/image/product.template/213070/image_128/%5B155819%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2CM5%2CISO21287?unique=41ef4bb)
|
Typennummer: 15.EMI.20005 |
27.89 € | |
![[155825] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 10,M5,ISO21287](/web/image/product.template/213076/image_128/%5B155825%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2CM5%2CISO21287?unique=a75d594)
|
Typennummer: 15.EMI.25010 |
31.29 € | |
![[155826] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 15,M5,ISO21287](/web/image/product.template/213077/image_128/%5B155826%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2CM5%2CISO21287?unique=880847b)
|
Typennummer: 15.EMI.25015 |
31.95 € | |
![[155827] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 20,M5,ISO21287](/web/image/product.template/213078/image_128/%5B155827%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2CM5%2CISO21287?unique=a85023a)
|
Typennummer: 15.EMI.25020 |
32.75 € | |
![[155828] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 25,M5,ISO21287](/web/image/product.template/213079/image_128/%5B155828%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2CM5%2CISO21287?unique=c727b6a)
|
Typennummer: 15.EMI.25025 |
33.13 € | |
![[155824] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 5,M5,ISO21287](/web/image/product.template/213075/image_128/%5B155824%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2CM5%2CISO21287?unique=fa472ff)
|
Typennummer: 15.EMI.25005 |
30.89 € | |
![[155855] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 10, G1/8,ISO21287](/web/image/product.template/213106/image_128/%5B155855%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=5ae309c)
|
Typennummer: 15.EMI.100010 |
113.72 € | |
![[155856] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 15, G1/8,ISO21287](/web/image/product.template/213107/image_128/%5B155856%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=463e148)
|
Typennummer: 15.EMI.100015 |
115.14 € | |
![[155857] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 20, G1/8,ISO21287](/web/image/product.template/213108/image_128/%5B155857%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=20caac8)
|
Typennummer: 15.EMI.100020 |
116.57 € | |
![[155858] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 25, G1/8,ISO21287](/web/image/product.template/213109/image_128/%5B155858%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=f73b734)
|
Typennummer: 15.EMI.100025 |
118.01 € | |
![[155854] RIEGLER Comp.cyl., single-act., retr., P-Ø 100, Stroke 5, G1/8,ISO21287](/web/image/product.template/213105/image_128/%5B155854%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%20100%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=17d54f2)
|
Typennummer: 15.EMI.100005 |
112.25 € | |
![[155830] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 10, G1/8,ISO21287](/web/image/product.template/213081/image_128/%5B155830%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=4bffb9d)
|
Typennummer: 15.EMI.32010 |
34.21 € | |
![[155831] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 15, G1/8,ISO21287](/web/image/product.template/213082/image_128/%5B155831%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=dda394e)
|
Typennummer: 15.EMI.32015 |
34.83 € | |
![[155832] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 20, G1/8,ISO21287](/web/image/product.template/213083/image_128/%5B155832%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=ef5f4e1)
|
Typennummer: 15.EMI.32020 |
35.62 € | |
![[155833] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 25, G1/8,ISO21287](/web/image/product.template/213084/image_128/%5B155833%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=1847fbf)
|
Typennummer: 15.EMI.32025 |
36.14 € | |
![[155829] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 5, G1/8,ISO21287](/web/image/product.template/213080/image_128/%5B155829%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=15b1035)
|
Typennummer: 15.EMI.32005 |
33.81 € | |
![[155835] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 10, G1/8,ISO21287](/web/image/product.template/213086/image_128/%5B155835%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=88585ad)
|
Typennummer: 15.EMI.40010 |
40.08 € | |
![[155836] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 15, G1/8,ISO21287](/web/image/product.template/213087/image_128/%5B155836%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=79e4629)
|
Typennummer: 15.EMI.40015 |
40.60 € | |
![[155837] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 20, G1/8,ISO21287](/web/image/product.template/213088/image_128/%5B155837%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=a74d7dd)
|
Typennummer: 15.EMI.40020 |
41.38 € | |
![[155838] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 25, G1/8,ISO21287](/web/image/product.template/213089/image_128/%5B155838%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=95e0466)
|
Typennummer: 15.EMI.40025 |
41.90 € | |
![[155834] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 5, G1/8,ISO21287](/web/image/product.template/213085/image_128/%5B155834%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=d296332)
|
Typennummer: 15.EMI.40005 |
39.56 € | |
![[155840] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 10, G1/8,ISO21287](/web/image/product.template/213091/image_128/%5B155840%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=874bca8)
|
Typennummer: 15.EMI.50010 |
46.90 € | |
![[155841] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 15, G1/8,ISO21287](/web/image/product.template/213092/image_128/%5B155841%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=5a5cd2b)
|
Typennummer: 15.EMI.50015 |
47.93 € | |
![[155842] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 20, G1/8,ISO21287](/web/image/product.template/213093/image_128/%5B155842%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=e6fa983)
|
Typennummer: 15.EMI.50020 |
48.46 € | |
![[155843] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 25, G1/8,ISO21287](/web/image/product.template/213094/image_128/%5B155843%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=81163e1)
|
Typennummer: 15.EMI.50025 |
49.37 € | |
![[155839] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 5, G1/8,ISO21287](/web/image/product.template/213090/image_128/%5B155839%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=b3ec57c)
|
Typennummer: 15.EMI.50005 |
46.37 € | |
![[155845] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 10, G1/8,ISO21287](/web/image/product.template/213096/image_128/%5B155845%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d6b40bf)
|
Typennummer: 15.EMI.63010 |
60.01 € | |
![[155846] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 15, G1/8,ISO21287](/web/image/product.template/213097/image_128/%5B155846%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=84b0c2d)
|
Typennummer: 15.EMI.63015 |
60.79 € | |
![[155847] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 20, G1/8,ISO21287](/web/image/product.template/213098/image_128/%5B155847%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=387b70d)
|
Typennummer: 15.EMI.63020 |
61.56 € | |
![[155848] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 25, G1/8,ISO21287](/web/image/product.template/213099/image_128/%5B155848%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=1fbd789)
|
Typennummer: 15.EMI.63025 |
62.63 € | |
![[155844] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 5, G1/8,ISO21287](/web/image/product.template/213095/image_128/%5B155844%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=134dae6)
|
Typennummer: 15.EMI.63005 |
58.94 € | |
![[155850] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 10, G1/8,ISO21287](/web/image/product.template/213101/image_128/%5B155850%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=b9fea98)
|
Typennummer: 15.EMI.80010 |
89.86 € | |
![[155851] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 15, G1/8,ISO21287](/web/image/product.template/213102/image_128/%5B155851%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=1ff649f)
|
Typennummer: 15.EMI.80015 |
90.92 € | |
![[155852] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 20, G1/8,ISO21287](/web/image/product.template/213103/image_128/%5B155852%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=9004255)
|
Typennummer: 15.EMI.80020 |
92.09 € | |
![[155853] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 25, G1/8,ISO21287](/web/image/product.template/213104/image_128/%5B155853%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=92717c8)
|
Typennummer: 15.EMI.80025 |
93.15 € | |
![[155849] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 5, G1/8,ISO21287](/web/image/product.template/213100/image_128/%5B155849%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=f2ad75f)
|
Typennummer: 15.EMI.80005 |
88.82 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115534] RIEGLER Sensor, »CS1« type, REED sensor, 2-wire, 3 m cable, NO](/web/image/product.template/200293/image_128/%5B115534%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20REED%20sensor%2C%202-wire%2C%203%20m%20cable%2C%20NO?unique=9c5658f)
|
Type number: 235.201 |
12.47 € | |
![[115535] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200294/image_128/%5B115535%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=cecdc50)
|
Type number: 235.202 |
26.76 € | |
![[115536] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, NPN](/web/image/product.template/200295/image_128/%5B115536%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20NPN?unique=77b5d7e)
|
Type number: 235.203 |
24.29 € | |
![[115537] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200296/image_128/%5B115537%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=7892488)
|
Type number: 235.204 |
26.76 € | |
![[115538] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, PNP](/web/image/product.template/200297/image_128/%5B115538%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20PNP?unique=7e015bf)
|
Type number: 235.205 |
24.29 € | |
![[116944] RIEGLER Sensor »CS1« REED, 2-Draht, M8, NO](/web/image/product.template/267815/image_128/%5B116944%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=4c8f28e)
|
Type number: 235.200-1 |
14.76 € | |
![[156777] RIEGLER Trunnion mounting, ISO 21287 Piston Ø 16, UNITOP Piston Ø 12+16](/web/image/product.template/214515/image_128/%5B156777%5D%20RIEGLER%20Trunnion%20mounting%2C%20ISO%2021287%20Piston%20%C3%98%2016%2C%20UNITOP%20Piston%20%C3%98%2012%2B16?unique=5f1272d)
|
Typennummer: 453.120 |
7.76 € | |
![[156780] RIEGLER Trunnion mounting with bushes, ISO 21287 Ø16, UNITOP Ø 12+16](/web/image/product.template/214518/image_128/%5B156780%5D%20RIEGLER%20Trunnion%20mounting%20with%20bushes%2C%20ISO%2021287%20%C3%9816%2C%20UNITOP%20%C3%98%2012%2B16?unique=c352c4e)
|
Typennummer: 453.123 |
9.29 € | |
![[156783] RIEGLER Front or floor flange, ISO 21287 Piston Ø16, UNITOP Piston Ø12+16](/web/image/product.template/214521/image_128/%5B156783%5D%20RIEGLER%20Front%20or%20floor%20flange%2C%20ISO%2021287%20Piston%20%C3%9816%2C%20UNITOP%20Piston%20%C3%9812%2B16?unique=7730a30)
|
Typennummer: 453.126 |
12.04 € | |
