RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 5, G1/8,ISO21287
Typennummer: 15.EMI.63005
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, single-walled, female thread, solenoid, piston Ø 63, stroke 5, G1/8, max. working pressure 10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASE series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 63 mm |
| Function | single-acting |
| Stroke | 5 mm |
| Piston rods IG | M10x1.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155813] RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 10,M5,ISO21287](/web/image/product.template/213064/image_128/%5B155813%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2CM5%2CISO21287?unique=fa57740)
|
Typennummer: 15.EMI.12010 |
26.45 € | |
![[155812] RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213063/image_128/%5B155812%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=bd7df57)
|
Typennummer: 15.EMI.12005 |
26.33 € | |
![[155815] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213066/image_128/%5B155815%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=e0e7fda)
|
Typennummer: 15.EMI.16010 |
26.60 € | |
![[155816] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213067/image_128/%5B155816%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=46823d5)
|
Typennummer: 15.EMI.16015 |
27.26 € | |
![[155817] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213068/image_128/%5B155817%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=4535e39)
|
Typennummer: 15.EMI.16020 |
27.51 € | |
![[155818] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 25,M5,ISO21287](/web/image/product.template/213069/image_128/%5B155818%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2CM5%2CISO21287?unique=0fc2fa9)
|
Typennummer: 15.EMI.16025 |
27.89 € | |
![[155814] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 5,M5,ISO21287](/web/image/product.template/213065/image_128/%5B155814%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2CM5%2CISO21287?unique=80c942d)
|
Typennummer: 15.EMI.16005 |
26.45 € | |
![[155820] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213071/image_128/%5B155820%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=777ef9e)
|
Typennummer: 15.EMI.20010 |
28.18 € | |
![[155821] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213072/image_128/%5B155821%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=9af478a)
|
Typennummer: 15.EMI.20015 |
28.81 € | |
![[155822] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213073/image_128/%5B155822%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=e0725b0)
|
Typennummer: 15.EMI.20020 |
28.95 € | |

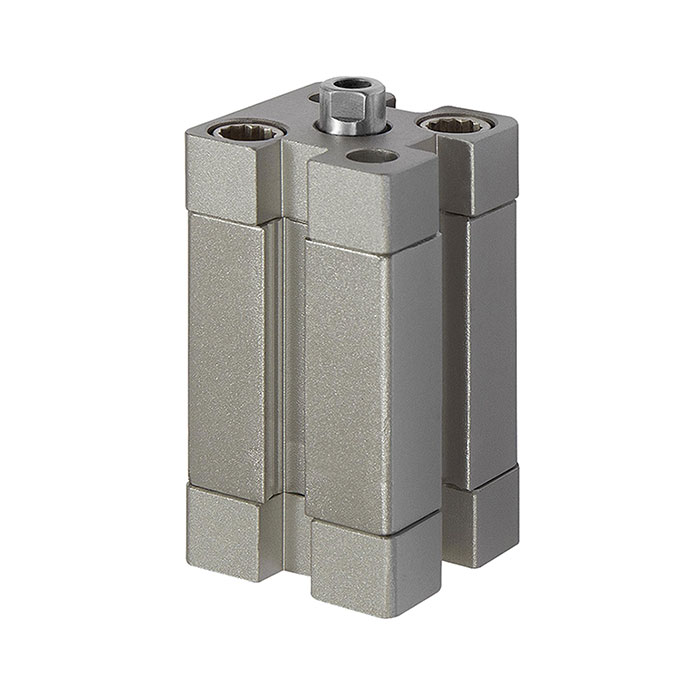

![[155823] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213074/image_128/%5B155823%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=3020c00)
|
