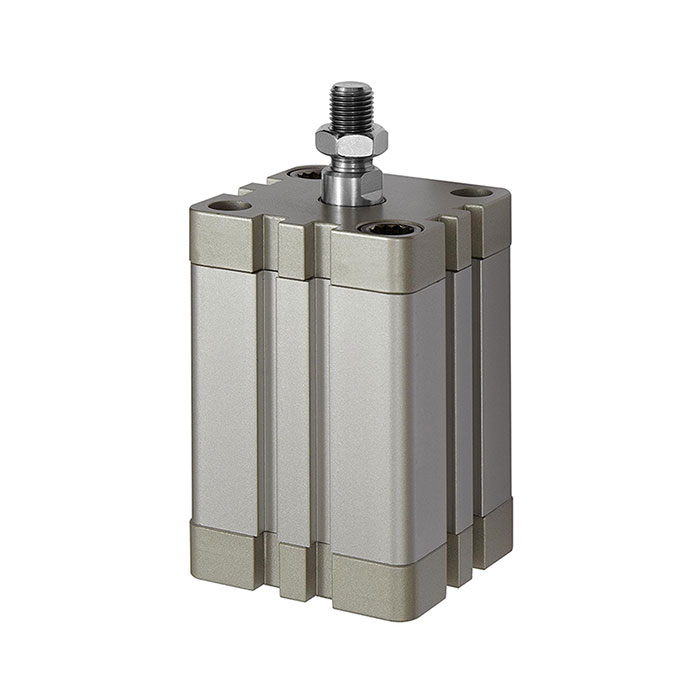

RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 10,M5,ISO21287
Typennummer: 15.EMA.12010
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, single-walled, male, inserted, solenoid, piston Ø 12, stroke 10, M5, max. working pressure 10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASE series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 12 mm |
| Function | single-acting |
| Stroke | 10 mm |
| Piston rods AG | M5x0.8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155859] RIEGLER Comp.cyl., single-act., retr., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213110/image_128/%5B155859%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=aa0b58c)
|
Typennummer: 15.EMA.12005 |
26.33 € | |
![[155862] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213113/image_128/%5B155862%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=04a6c27)
|
Typennummer: 15.EMA.16010 |
26.60 € | |
![[155863] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213114/image_128/%5B155863%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=77d6599)
|
Typennummer: 15.EMA.16015 |
27.26 € | |
![[155864] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213115/image_128/%5B155864%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=7bcad7b)
|
Typennummer: 15.EMA.16020 |
27.51 € | |
![[155865] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 25,M5,ISO21287](/web/image/product.template/213116/image_128/%5B155865%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2CM5%2CISO21287?unique=7667e32)
|
Typennummer: 15.EMA.16025 |
27.89 € | |
![[155861] RIEGLER Comp.cyl., single-act., retr., Piston Ø 16, Stroke 5,M5,ISO21287](/web/image/product.template/213112/image_128/%5B155861%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2CM5%2CISO21287?unique=7ee8547)
|
Typennummer: 15.EMA.16005 |
26.45 € | |
![[155867] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213118/image_128/%5B155867%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=bacc45e)
|
Typennummer: 15.EMA.20010 |
28.18 € | |
![[155868] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213119/image_128/%5B155868%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=081e9df)
|
Typennummer: 15.EMA.20015 |
28.81 € | |
![[155869] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213120/image_128/%5B155869%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=8253b59)
|
Typennummer: 15.EMA.20020 |
28.95 € | |
![[155870] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213121/image_128/%5B155870%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=4981f79)
|
Typennummer: 15.EMA.20025 |
29.88 € | |
![[155866] RIEGLER Comp.cyl., single-act., retr., Piston Ø 20, Stroke 5,M5,ISO21287](/web/image/product.template/213117/image_128/%5B155866%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2CM5%2CISO21287?unique=0cd39b2)
|
Typennummer: 15.EMA.20005 |
27.89 € | |
![[155872] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 10,M5,ISO21287](/web/image/product.template/213123/image_128/%5B155872%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2CM5%2CISO21287?unique=bdda9d8)
|
Typennummer: 15.EMA.25010 |
31.29 € | |
![[155873] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 15,M5,ISO21287](/web/image/product.template/213124/image_128/%5B155873%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2CM5%2CISO21287?unique=d4c6400)
|
Typennummer: 15.EMA.25015 |
31.95 € | |
![[155874] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 20,M5,ISO21287](/web/image/product.template/213125/image_128/%5B155874%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2CM5%2CISO21287?unique=7bffbf3)
|
Typennummer: 15.EMA.25020 |
32.75 € | |
![[155875] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 25,M5,ISO21287](/web/image/product.template/213126/image_128/%5B155875%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2CM5%2CISO21287?unique=4ae9400)
|
Typennummer: 15.EMA.25025 |
33.13 € | |
![[155871] RIEGLER Comp.cyl., single-act., retr., Piston Ø 25, Stroke 5,M5,ISO21287](/web/image/product.template/213122/image_128/%5B155871%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2CM5%2CISO21287?unique=a9d478d)
|
Typennummer: 15.EMA.25005 |
30.89 € | |
![[155902] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 10, G1/8,ISO21287](/web/image/product.template/213153/image_128/%5B155902%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=e8dab5d)
|
Typennummer: 15.EMA.100010 |
113.72 € | |
![[155903] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 15, G1/8,ISO21287](/web/image/product.template/213154/image_128/%5B155903%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=289b0f7)
|
Typennummer: 15.EMA.100015 |
115.14 € | |
![[155904] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 20, G1/8,ISO21287](/web/image/product.template/213155/image_128/%5B155904%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=8cd1d9c)
|
Typennummer: 15.EMA.100020 |
116.57 € | |
![[155905] RIEGLER Comp.cyl., single-act., retr., P-Ø100, Stroke 25, G1/8,ISO21287](/web/image/product.template/213156/image_128/%5B155905%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98100%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=13a82d5)
|
Typennummer: 15.EMA.100025 |
118.01 € | |
![[155901] RIEGLER Comp.cyl., single-act., retr., P-Ø 100, Stroke 5, G1/8,ISO21287](/web/image/product.template/213152/image_128/%5B155901%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%20100%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=68cb264)
|
Typennummer: 15.EMA.100005 |
112.25 € | |
![[155877] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 10, G1/8,ISO21287](/web/image/product.template/213128/image_128/%5B155877%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=084b9f9)
|
Typennummer: 15.EMA.32010 |
34.21 € | |
![[155878] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 15, G1/8,ISO21287](/web/image/product.template/213129/image_128/%5B155878%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=13b314f)
|
Typennummer: 15.EMA.32015 |
34.83 € | |
![[155879] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 20, G1/8,ISO21287](/web/image/product.template/213130/image_128/%5B155879%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=f37711a)
|
Typennummer: 15.EMA.32020 |
35.62 € | |
![[155880] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 25, G1/8,ISO21287](/web/image/product.template/213131/image_128/%5B155880%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=d0b7091)
|
Typennummer: 15.EMA.32025 |
36.14 € | |
![[155876] RIEGLER Comp.cyl., single-act., retr., P-Ø 32, Stroke 5, G1/8,ISO21287](/web/image/product.template/213127/image_128/%5B155876%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2032%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=2ef1e80)
|
Typennummer: 15.EMA.32005 |
33.81 € | |
![[155882] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 10, G1/8,ISO21287](/web/image/product.template/213133/image_128/%5B155882%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=a9fdc06)
|
Typennummer: 15.EMA.40010 |
40.08 € | |
![[155883] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 15, G1/8,ISO21287](/web/image/product.template/213134/image_128/%5B155883%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=a0b5cc6)
|
Typennummer: 15.EMA.40015 |
40.60 € | |
![[155884] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 20, G1/8,ISO21287](/web/image/product.template/213135/image_128/%5B155884%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=eed5ac1)
|
Typennummer: 15.EMA.40020 |
41.38 € | |
![[155885] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 25, G1/8,ISO21287](/web/image/product.template/213136/image_128/%5B155885%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=6711ce6)
|
Typennummer: 15.EMA.40025 |
41.90 € | |
![[155881] RIEGLER Comp.cyl., single-act., retr., P-Ø 40, Stroke 5, G1/8,ISO21287](/web/image/product.template/213132/image_128/%5B155881%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2040%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=b08ed55)
|
Typennummer: 15.EMA.40005 |
39.56 € | |
![[155887] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 10, G1/8,ISO21287](/web/image/product.template/213138/image_128/%5B155887%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=0641e5d)
|
Typennummer: 15.EMA.50010 |
46.90 € | |
![[155888] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 15, G1/8,ISO21287](/web/image/product.template/213139/image_128/%5B155888%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=4603f26)
|
Typennummer: 15.EMA.50015 |
47.93 € | |
![[155889] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 20, G1/8,ISO21287](/web/image/product.template/213140/image_128/%5B155889%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=b84b5e7)
|
Typennummer: 15.EMA.50020 |
48.46 € | |
![[155890] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 25, G1/8,ISO21287](/web/image/product.template/213141/image_128/%5B155890%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=6318b7e)
|
Typennummer: 15.EMA.50025 |
49.37 € | |
![[155886] RIEGLER Comp.cyl., single-act., retr., P-Ø 50, Stroke 5, G1/8,ISO21287](/web/image/product.template/213137/image_128/%5B155886%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2050%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=e341cb1)
|
Typennummer: 15.EMA.50005 |
46.37 € | |
![[155892] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 10, G1/8,ISO21287](/web/image/product.template/213143/image_128/%5B155892%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=ff40118)
|
Typennummer: 15.EMA.63010 |
60.01 € | |
![[155893] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 15, G1/8,ISO21287](/web/image/product.template/213144/image_128/%5B155893%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=41974d7)
|
Typennummer: 15.EMA.63015 |
60.79 € | |
![[155894] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 20, G1/8,ISO21287](/web/image/product.template/213145/image_128/%5B155894%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=7010d3b)
|
Typennummer: 15.EMA.63020 |
61.56 € | |
![[155895] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 25, G1/8,ISO21287](/web/image/product.template/213146/image_128/%5B155895%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=104fe0c)
|
Typennummer: 15.EMA.63025 |
62.63 € | |
![[155891] RIEGLER Comp.cyl., single-act., retr., P-Ø 63, Stroke 5, G1/8,ISO21287](/web/image/product.template/213142/image_128/%5B155891%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2063%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=7fd95ed)
|
Typennummer: 15.EMA.63005 |
58.94 € | |
![[155897] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 10, G1/8,ISO21287](/web/image/product.template/213148/image_128/%5B155897%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d5623a3)
|
Typennummer: 15.EMA.80010 |
89.86 € | |
![[155898] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 15, G1/8,ISO21287](/web/image/product.template/213149/image_128/%5B155898%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=96a3811)
|
Typennummer: 15.EMA.80015 |
90.92 € | |
![[155899] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 20, G1/8,ISO21287](/web/image/product.template/213150/image_128/%5B155899%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=679f243)
|
Typennummer: 15.EMA.80020 |
92.09 € | |
![[155900] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 25, G1/8,ISO21287](/web/image/product.template/213151/image_128/%5B155900%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=543271f)
|
Typennummer: 15.EMA.80025 |
93.15 € | |
![[155896] RIEGLER Comp.cyl., single-act., retr., P-Ø 80, Stroke 5, G1/8,ISO21287](/web/image/product.template/213147/image_128/%5B155896%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20retr.%2C%20P-%C3%98%2080%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=5e37836)
|
Typennummer: 15.EMA.80005 |
88.82 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

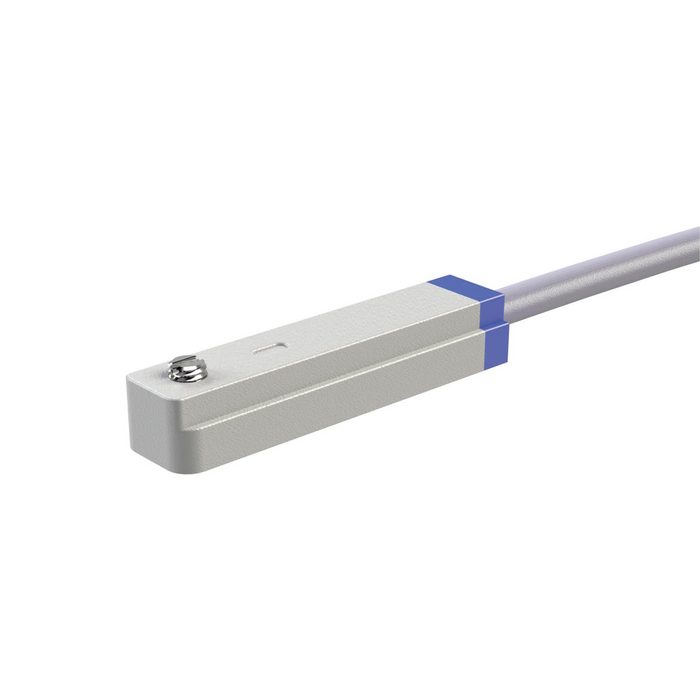

![[115534] RIEGLER Sensor, »CS1« type, REED sensor, 2-wire, 3 m cable, NO](/web/image/product.template/200293/image_128/%5B115534%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20REED%20sensor%2C%202-wire%2C%203%20m%20cable%2C%20NO?unique=9c5658f)
|
Type number: 235.201 |
12.47 € | |
![[115535] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200294/image_128/%5B115535%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=cecdc50)
|
Type number: 235.202 |
26.76 € | |
![[115536] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, NPN](/web/image/product.template/200295/image_128/%5B115536%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20NPN?unique=77b5d7e)
|
Type number: 235.203 |
24.29 € | |
![[115537] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200296/image_128/%5B115537%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=7892488)
|
Type number: 235.204 |
26.76 € | |

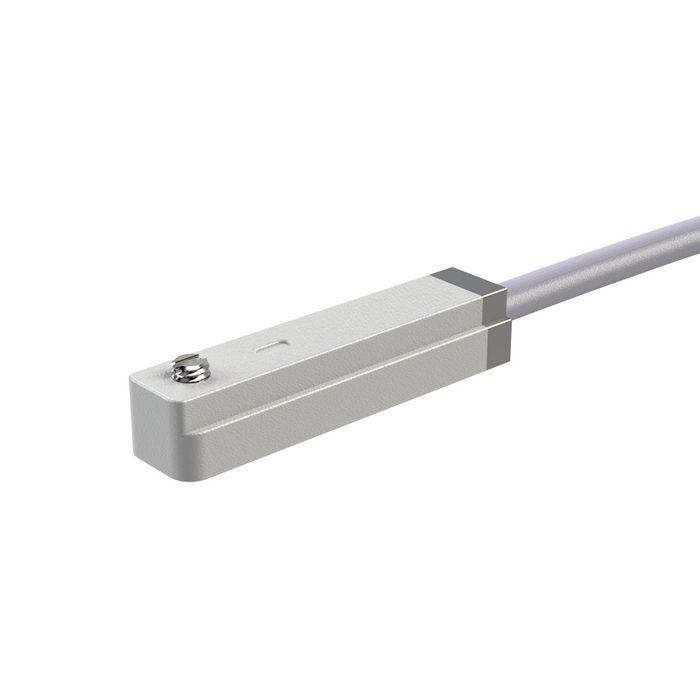

![[115538] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, PNP](/web/image/product.template/200297/image_128/%5B115538%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20PNP?unique=7e015bf)
|
Type number: 235.205 |
24.29 € | |
![[116944] RIEGLER Sensor »CS1« REED, 2-Draht, M8, NO](/web/image/product.template/267815/image_128/%5B116944%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=4c8f28e)
|
Type number: 235.200-1 |
14.76 € | |
