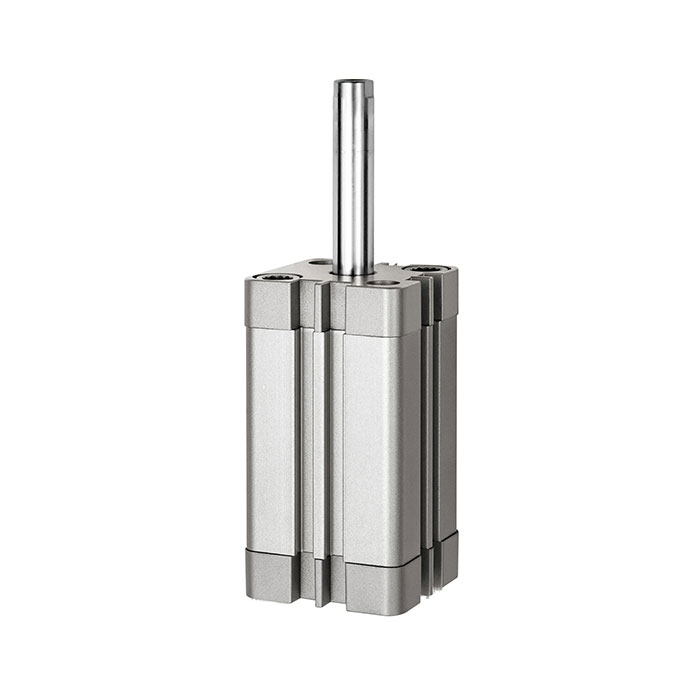

RIEGLER Comp.cyl., single-acting, ext., Piston Ø 16, Stroke 5,M5,ISO21287
Typennummer: 15.AMI.16005
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, single-walled, threaded port, external, solenoid, piston Ø 16, stroke 5, M5, max. working pressure 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series ATE |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 16 mm |
| Function | single-acting |
| Stroke | 5 mm |
| Piston rods IG | M4x0.7 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | extended without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155907] RIEGLER Comp.cyl., single-act., ext., Piston Ø 12, Stroke 10,M5,ISO21287](/web/image/product.template/213158/image_128/%5B155907%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2CM5%2CISO21287?unique=4d79fcd)
|
Typennummer: 15.AMI.12010 |
26.58 € | |
![[155909] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213160/image_128/%5B155909%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=ece8123)
|
Typennummer: 15.AMI.16010 |
26.73 € | |
![[155910] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213161/image_128/%5B155910%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=3248dfa)
|
Typennummer: 15.AMI.16015 |
27.41 € | |
![[155911] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213162/image_128/%5B155911%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=de9e605)
|
Typennummer: 15.AMI.16020 |
27.66 € | |
![[155912] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 25,M5,ISO21287](/web/image/product.template/213163/image_128/%5B155912%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2CM5%2CISO21287?unique=a9c58f3)
|
Typennummer: 15.AMI.16025 |
28.04 € | |
![[155914] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213165/image_128/%5B155914%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=c49b256)
|
Typennummer: 15.AMI.20010 |
28.32 € | |
![[155915] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213166/image_128/%5B155915%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=d6781a4)
|
Typennummer: 15.AMI.20015 |
28.95 € | |
![[155916] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213167/image_128/%5B155916%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=b58d0f9)
|
Typennummer: 15.AMI.20020 |
29.11 € | |
![[155917] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213168/image_128/%5B155917%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=01c1218)
|
Typennummer: 15.AMI.20025 |
30.04 € | |
![[155919] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 10,M5,ISO21287](/web/image/product.template/213170/image_128/%5B155919%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2CM5%2CISO21287?unique=c79c34e)
|
Typennummer: 15.AMI.25010 |
31.45 € | |
![[155920] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 15,M5,ISO21287](/web/image/product.template/213171/image_128/%5B155920%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2CM5%2CISO21287?unique=3eacdf7)
|
Typennummer: 15.AMI.25015 |
32.12 € | |
![[155921] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 20,M5,ISO21287](/web/image/product.template/213172/image_128/%5B155921%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2CM5%2CISO21287?unique=bd3c249)
|
Typennummer: 15.AMI.25020 |
32.92 € | |
![[155922] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 25,M5,ISO21287](/web/image/product.template/213173/image_128/%5B155922%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2CM5%2CISO21287?unique=a61566e)
|
Typennummer: 15.AMI.25025 |
33.31 € | |
![[155949] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 10, G1/8,ISO21287](/web/image/product.template/213200/image_128/%5B155949%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=98c9cac)
|
Typennummer: 15.AMI.100010 |
114.29 € | |
![[155950] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 15, G1/8,ISO21287](/web/image/product.template/213201/image_128/%5B155950%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=f423412)
|
Typennummer: 15.AMI.100015 |
115.72 € | |
![[155951] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 20, G1/8,ISO21287](/web/image/product.template/213202/image_128/%5B155951%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=258a867)
|
Typennummer: 15.AMI.100020 |
117.17 € | |
![[155952] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 25, G1/8,ISO21287](/web/image/product.template/213203/image_128/%5B155952%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=bfe2359)
|
Typennummer: 15.AMI.100025 |
118.62 € | |
![[155948] RIEGLER Comp.cyl., single-act., ext., P-Ø 100, Stroke 5, G1/8,ISO21287](/web/image/product.template/213199/image_128/%5B155948%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%20100%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=e5b8c93)
|
Typennummer: 15.AMI.100005 |
112.82 € | |
![[155924] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 10, G1/8,ISO21287](/web/image/product.template/213175/image_128/%5B155924%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=45637a9)
|
Typennummer: 15.AMI.32010 |
34.38 € | |
![[155925] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 15, G1/8,ISO21287](/web/image/product.template/213176/image_128/%5B155925%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=bf35bfe)
|
Typennummer: 15.AMI.32015 |
35.01 € | |
![[155926] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 20, G1/8,ISO21287](/web/image/product.template/213177/image_128/%5B155926%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=1f9e385)
|
Typennummer: 15.AMI.32020 |
35.80 € | |
![[155927] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 25, G1/8,ISO21287](/web/image/product.template/213178/image_128/%5B155927%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=e7f077e)
|
Typennummer: 15.AMI.32025 |
36.33 € | |
![[155923] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 5, G1/8,ISO21287](/web/image/product.template/213174/image_128/%5B155923%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=30c87bc)
|
Typennummer: 15.AMI.32005 |
33.99 € | |
![[155929] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 10, G1/8,ISO21287](/web/image/product.template/213180/image_128/%5B155929%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=5f2d451)
|
Typennummer: 15.AMI.40010 |
40.28 € | |
![[155930] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 15, G1/8,ISO21287](/web/image/product.template/213181/image_128/%5B155930%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=ccf2cf9)
|
Typennummer: 15.AMI.40015 |
40.82 € | |
![[155931] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 20, G1/8,ISO21287](/web/image/product.template/213182/image_128/%5B155931%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=fea14cc)
|
Typennummer: 15.AMI.40020 |
41.59 € | |
![[155932] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 25, G1/8,ISO21287](/web/image/product.template/213183/image_128/%5B155932%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=c9ff68f)
|
Typennummer: 15.AMI.40025 |
42.13 € | |
![[155928] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 5, G1/8,ISO21287](/web/image/product.template/213179/image_128/%5B155928%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=3aa4a41)
|
Typennummer: 15.AMI.40005 |
39.76 € | |
![[155934] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 10, G1/8,ISO21287](/web/image/product.template/213185/image_128/%5B155934%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=0e488c8)
|
Typennummer: 15.AMI.50010 |
47.15 € | |
![[155935] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 15, G1/8,ISO21287](/web/image/product.template/213186/image_128/%5B155935%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=6f81982)
|
Typennummer: 15.AMI.50015 |
48.17 € | |
![[155936] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 20, G1/8,ISO21287](/web/image/product.template/213187/image_128/%5B155936%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=413e10a)
|
Typennummer: 15.AMI.50020 |
48.71 € | |
![[155937] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 25, G1/8,ISO21287](/web/image/product.template/213188/image_128/%5B155937%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=4331d12)
|
Typennummer: 15.AMI.50025 |
49.63 € | |
![[155933] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 5, G1/8,ISO21287](/web/image/product.template/213184/image_128/%5B155933%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=a557913)
|
Typennummer: 15.AMI.50005 |
46.61 € | |
![[155939] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 10, G1/8,ISO21287](/web/image/product.template/213190/image_128/%5B155939%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d1dbda0)
|
Typennummer: 15.AMI.63010 |
60.31 € | |
![[155940] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 15, G1/8,ISO21287](/web/image/product.template/213191/image_128/%5B155940%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=dd1c983)
|
Typennummer: 15.AMI.63015 |
61.09 € | |
![[155941] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 20, G1/8,ISO21287](/web/image/product.template/213192/image_128/%5B155941%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=06f1525)
|
Typennummer: 15.AMI.63020 |
61.88 € | |
![[155942] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 25, G1/8,ISO21287](/web/image/product.template/213193/image_128/%5B155942%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=f7bfe9a)
|
Typennummer: 15.AMI.63025 |
62.94 € | |
![[155938] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 5, G1/8,ISO21287](/web/image/product.template/213189/image_128/%5B155938%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=473729d)
|
Typennummer: 15.AMI.63005 |
59.24 € | |
![[155944] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 10, G1/8,ISO21287](/web/image/product.template/213195/image_128/%5B155944%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d82cd84)
|
Typennummer: 15.AMI.80010 |
90.30 € | |
![[155945] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 15, G1/8,ISO21287](/web/image/product.template/213196/image_128/%5B155945%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=1a1865c)
|
Typennummer: 15.AMI.80015 |
91.37 € | |
![[155946] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 20, G1/8,ISO21287](/web/image/product.template/213197/image_128/%5B155946%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=6b582be)
|
Typennummer: 15.AMI.80020 |
92.55 € | |
![[155947] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 25, G1/8,ISO21287](/web/image/product.template/213198/image_128/%5B155947%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=1286d5a)
|
Typennummer: 15.AMI.80025 |
93.62 € | |
![[155943] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 5, G1/8,ISO21287](/web/image/product.template/213194/image_128/%5B155943%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=2d5f67b)
|
Typennummer: 15.AMI.80005 |
89.26 € | |
![[155906] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213157/image_128/%5B155906%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=04fdf46)
|
Typennummer: 15.AMI.12005 |
26.47 € | |
![[155913] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 20, Stroke 5,M5,ISO21287](/web/image/product.template/213164/image_128/%5B155913%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2CM5%2CISO21287?unique=106a3b2)
|
Typennummer: 15.AMI.20005 |
28.04 € | |
![[155918] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 25, Stroke 5,M5,ISO21287](/web/image/product.template/213169/image_128/%5B155918%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2CM5%2CISO21287?unique=a59d735)
|
Typennummer: 15.AMI.25005 |
31.06 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115534] RIEGLER Sensor, »CS1« type, REED sensor, 2-wire, 3 m cable, NO](/web/image/product.template/200293/image_128/%5B115534%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20REED%20sensor%2C%202-wire%2C%203%20m%20cable%2C%20NO?unique=b9cdf4e)
|
Type number: 235.201 |
12.53 € | |
![[115535] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200294/image_128/%5B115535%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=6c99c2d)
|
Type number: 235.202 |
26.91 € | |
![[115536] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, NPN](/web/image/product.template/200295/image_128/%5B115536%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20NPN?unique=63ea55c)
|
Type number: 235.203 |
24.42 € | |
![[115537] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200296/image_128/%5B115537%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=196c47a)
|
Type number: 235.204 |
26.91 € | |
![[115538] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, PNP](/web/image/product.template/200297/image_128/%5B115538%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20PNP?unique=ed8501d)
|
Type number: 235.205 |
24.42 € | |
![[116944] RIEGLER Sensor »CS1« REED, 2-Draht, M8, NO](/web/image/product.template/267815/image_128/%5B116944%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=a3934f9)
|
Type number: 235.200-1 |
14.83 € | |

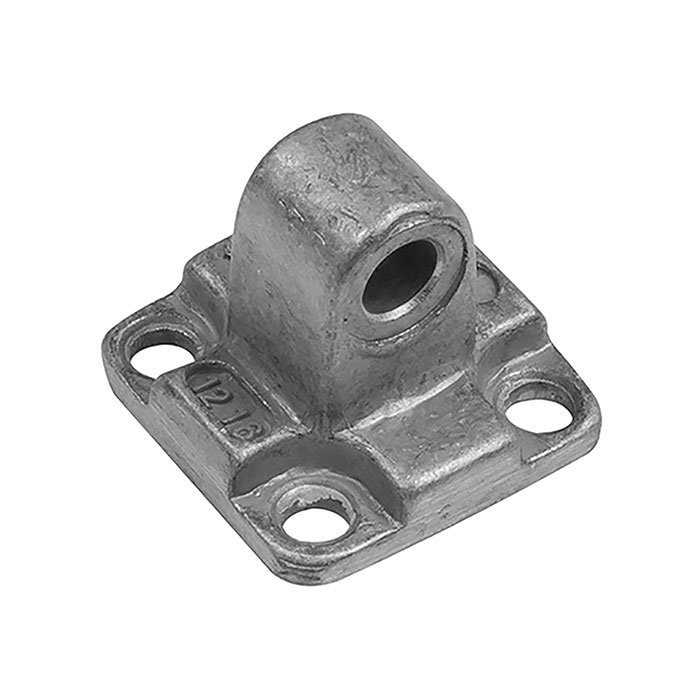

![[156777] RIEGLER Trunnion mounting, ISO 21287 Piston Ø 16, UNITOP Piston Ø 12+16](/web/image/product.template/214515/image_128/%5B156777%5D%20RIEGLER%20Trunnion%20mounting%2C%20ISO%2021287%20Piston%20%C3%98%2016%2C%20UNITOP%20Piston%20%C3%98%2012%2B16?unique=2de8bc4)
|
Typennummer: 453.120 |
7.76 € | |

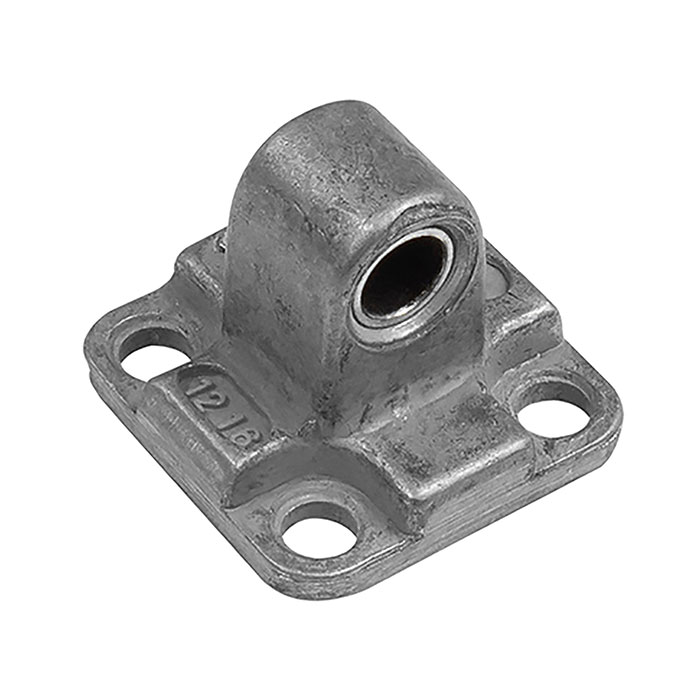

![[156780] RIEGLER Trunnion mounting with bushes, ISO 21287 Ø16, UNITOP Ø 12+16](/web/image/product.template/214518/image_128/%5B156780%5D%20RIEGLER%20Trunnion%20mounting%20with%20bushes%2C%20ISO%2021287%20%C3%9816%2C%20UNITOP%20%C3%98%2012%2B16?unique=b25af68)
|
Typennummer: 453.123 |
9.42 € | |

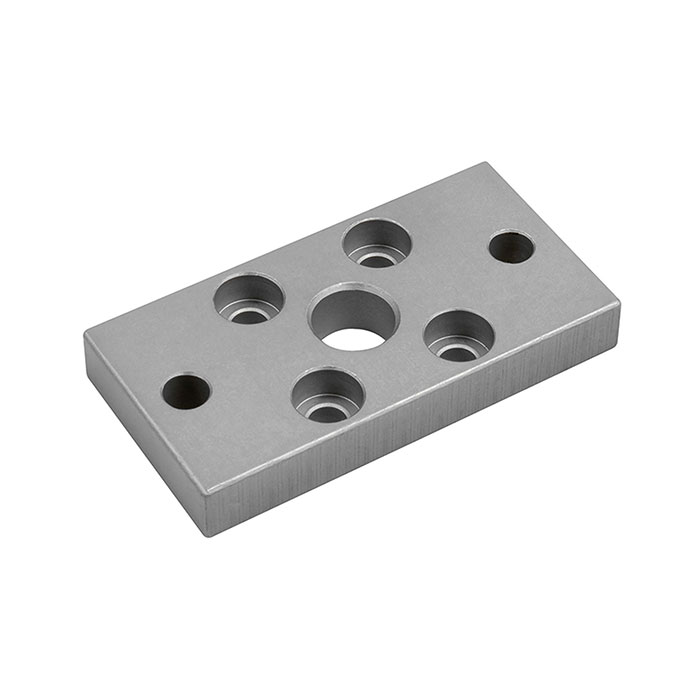

![[156783] RIEGLER Front or floor flange, ISO 21287 Piston Ø16, UNITOP Piston Ø12+16](/web/image/product.template/214521/image_128/%5B156783%5D%20RIEGLER%20Front%20or%20floor%20flange%2C%20ISO%2021287%20Piston%20%C3%9816%2C%20UNITOP%20Piston%20%C3%9812%2B16?unique=8766115)
|
Typennummer: 453.126 |
12.04 € | |
