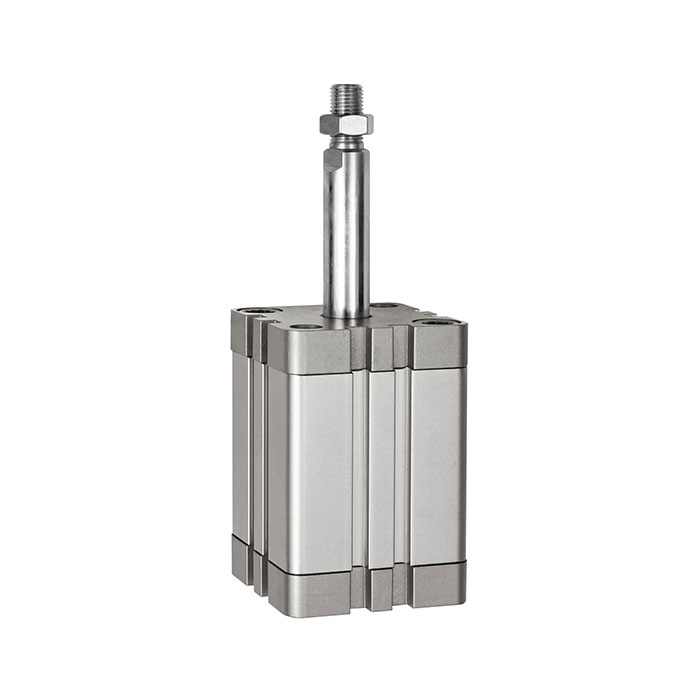

RIEGLER Comp.cyl., single-act., ext., Piston Ø 12, Stroke 10,M5,ISO21287
Typennummer: 15.AMA.12010
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cyl.ISO 21287, single-acting, male piston rod ext.,magnet,PistonØ12,Stroke10,M5, Work.press.max.10bar, Temp.-20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series ATE |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 12 mm |
| Function | single-acting |
| Stroke | 10 mm |
| Piston rods AG | M5x0.8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | extended without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155956] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213207/image_128/%5B155956%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=35d9221)
|
Typennummer: 15.AMA.16010 |
26.73 € | |
![[155957] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213208/image_128/%5B155957%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=762e3fe)
|
Typennummer: 15.AMA.16015 |
27.41 € | |
![[155958] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213209/image_128/%5B155958%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=b8ac331)
|
Typennummer: 15.AMA.16020 |
27.66 € | |
![[155959] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 25,M5,ISO21287](/web/image/product.template/213210/image_128/%5B155959%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2CM5%2CISO21287?unique=4d98a1e)
|
Typennummer: 15.AMA.16025 |
28.04 € | |
![[155961] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213212/image_128/%5B155961%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=1d3b44b)
|
Typennummer: 15.AMA.20010 |
28.32 € | |
![[155962] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213213/image_128/%5B155962%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=230c9ab)
|
Typennummer: 15.AMA.20015 |
28.95 € | |
![[155963] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213214/image_128/%5B155963%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=6e767ea)
|
Typennummer: 15.AMA.20020 |
29.11 € | |
![[155964] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213215/image_128/%5B155964%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=8834060)
|
Typennummer: 15.AMA.20025 |
30.04 € | |
![[155966] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 10,M5,ISO21287](/web/image/product.template/213217/image_128/%5B155966%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2CM5%2CISO21287?unique=629f888)
|
Typennummer: 15.AMA.25010 |
31.45 € | |
![[155967] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 15,M5,ISO21287](/web/image/product.template/213218/image_128/%5B155967%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2CM5%2CISO21287?unique=051f330)
|
Typennummer: 15.AMA.25015 |
32.12 € | |
![[155968] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 20,M5,ISO21287](/web/image/product.template/213219/image_128/%5B155968%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2CM5%2CISO21287?unique=edd4582)
|
Typennummer: 15.AMA.25020 |
32.92 € | |
![[155969] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 25,M5,ISO21287](/web/image/product.template/213220/image_128/%5B155969%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2CM5%2CISO21287?unique=585ac38)
|
Typennummer: 15.AMA.25025 |
33.31 € | |
![[155996] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 10, G1/8,ISO21287](/web/image/product.template/213247/image_128/%5B155996%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=8342ab7)
|
Typennummer: 15.AMA.100010 |
114.29 € | |
![[155997] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 15, G1/8,ISO21287](/web/image/product.template/213248/image_128/%5B155997%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=a349373)
|
Typennummer: 15.AMA.100015 |
115.72 € | |
![[155998] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 20, G1/8,ISO21287](/web/image/product.template/213249/image_128/%5B155998%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=9cb48b4)
|
Typennummer: 15.AMA.100020 |
117.17 € | |
![[155999] Riegler Comp.cyl., single-act., ext., P-Ø100, Stroke 25, G1/8,ISO21287](/web/image/product.template/213250/image_128/%5B155999%5D%20Riegler%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=1370008)
|
Typennummer: 15.AMA.100025 |
118.62 € | |
![[155995] RIEGLER Comp.cyl., single-act., ext., P-Ø 100, Stroke 5, G1/8,ISO21287](/web/image/product.template/213246/image_128/%5B155995%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%20100%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=76ed15f)
|
Typennummer: 15.AMA.100005 |
112.82 € | |
![[155971] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 10, G1/8,ISO21287](/web/image/product.template/213222/image_128/%5B155971%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=429d71c)
|
Typennummer: 15.AMA.32010 |
34.38 € | |
![[155972] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 15, G1/8,ISO21287](/web/image/product.template/213223/image_128/%5B155972%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=62013aa)
|
Typennummer: 15.AMA.32015 |
35.01 € | |
![[155973] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 20, G1/8,ISO21287](/web/image/product.template/213224/image_128/%5B155973%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=2742b63)
|
Typennummer: 15.AMA.32020 |
35.80 € | |
![[155974] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 25, G1/8,ISO21287](/web/image/product.template/213225/image_128/%5B155974%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=f7e9928)
|
Typennummer: 15.AMA.32025 |
36.33 € | |
![[155970] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 5, G1/8,ISO21287](/web/image/product.template/213221/image_128/%5B155970%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=219a300)
|
Typennummer: 15.AMA.32005 |
33.99 € | |
![[155976] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 10, G1/8,ISO21287](/web/image/product.template/213227/image_128/%5B155976%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=32c70a8)
|
Typennummer: 15.AMA.40010 |
40.28 € | |
![[155977] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 15, G1/8,ISO21287](/web/image/product.template/213228/image_128/%5B155977%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=426738f)
|
Typennummer: 15.AMA.40015 |
40.82 € | |
![[155978] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 20, G1/8,ISO21287](/web/image/product.template/213229/image_128/%5B155978%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=1b31f36)
|
Typennummer: 15.AMA.40020 |
41.59 € | |
![[155979] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 25, G1/8,ISO21287](/web/image/product.template/213230/image_128/%5B155979%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=75c4040)
|
Typennummer: 15.AMA.40025 |
42.13 € | |
![[155975] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 5, G1/8,ISO21287](/web/image/product.template/213226/image_128/%5B155975%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=e6fd4f3)
|
Typennummer: 15.AMA.40005 |
39.76 € | |
![[155981] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 10, G1/8,ISO21287](/web/image/product.template/213232/image_128/%5B155981%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=bbd54cc)
|
Typennummer: 15.AMA.50010 |
47.15 € | |
![[155982] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 15, G1/8,ISO21287](/web/image/product.template/213233/image_128/%5B155982%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=7871946)
|
Typennummer: 15.AMA.50015 |
48.17 € | |
![[155983] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 20, G1/8,ISO21287](/web/image/product.template/213234/image_128/%5B155983%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=f397ff3)
|
Typennummer: 15.AMA.50020 |
48.71 € | |
![[155984] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 25, G1/8,ISO21287](/web/image/product.template/213235/image_128/%5B155984%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=93e75da)
|
Typennummer: 15.AMA.50025 |
49.63 € | |
![[155980] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 5, G1/8,ISO21287](/web/image/product.template/213231/image_128/%5B155980%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=9c0600b)
|
Typennummer: 15.AMA.50005 |
46.61 € | |
![[155986] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 10, G1/8,ISO21287](/web/image/product.template/213237/image_128/%5B155986%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=513b0f2)
|
Typennummer: 15.AMA.63010 |
60.31 € | |
![[155987] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 15, G1/8,ISO21287](/web/image/product.template/213238/image_128/%5B155987%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=2c15a3f)
|
Typennummer: 15.AMA.63015 |
61.09 € | |
![[155988] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 20, G1/8,ISO21287](/web/image/product.template/213239/image_128/%5B155988%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=a26b3e5)
|
Typennummer: 15.AMA.63020 |
61.88 € | |
![[155989] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 25, G1/8,ISO21287](/web/image/product.template/213240/image_128/%5B155989%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=db10c6a)
|
Typennummer: 15.AMA.63025 |
62.94 € | |
![[155985] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 5, G1/8,ISO21287](/web/image/product.template/213236/image_128/%5B155985%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=a0e2916)
|
Typennummer: 15.AMA.63005 |
59.24 € | |
![[155991] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 10, G1/8,ISO21287](/web/image/product.template/213242/image_128/%5B155991%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d5fcbf4)
|
Typennummer: 15.AMA.80010 |
90.30 € | |
![[155992] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 15, G1/8,ISO21287](/web/image/product.template/213243/image_128/%5B155992%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=9879265)
|
Typennummer: 15.AMA.80015 |
91.37 € | |
![[155993] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 20, G1/8,ISO21287](/web/image/product.template/213244/image_128/%5B155993%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=ee57539)
|
Typennummer: 15.AMA.80020 |
92.55 € | |
![[155994] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 25, G1/8,ISO21287](/web/image/product.template/213245/image_128/%5B155994%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=c0e43b9)
|
Typennummer: 15.AMA.80025 |
93.62 € | |
![[155990] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 5, G1/8,ISO21287](/web/image/product.template/213241/image_128/%5B155990%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=426983a)
|
Typennummer: 15.AMA.80005 |
89.26 € | |
![[155953] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213204/image_128/%5B155953%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=cab962b)
|
Typennummer: 15.AMA.12005 |
26.47 € | |
![[155955] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 16, Stroke 5,M5,ISO21287](/web/image/product.template/213206/image_128/%5B155955%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2CM5%2CISO21287?unique=9ceb4c1)
|
Typennummer: 15.AMA.16005 |
26.58 € | |
![[155960] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 20, Stroke 5,M5,ISO21287](/web/image/product.template/213211/image_128/%5B155960%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2CM5%2CISO21287?unique=02b4124)
|
Typennummer: 15.AMA.20005 |
28.04 € | |
![[155965] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 25, Stroke 5,M5,ISO21287](/web/image/product.template/213216/image_128/%5B155965%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2CM5%2CISO21287?unique=f3b138f)
|
Typennummer: 15.AMA.25005 |
31.06 € | |
