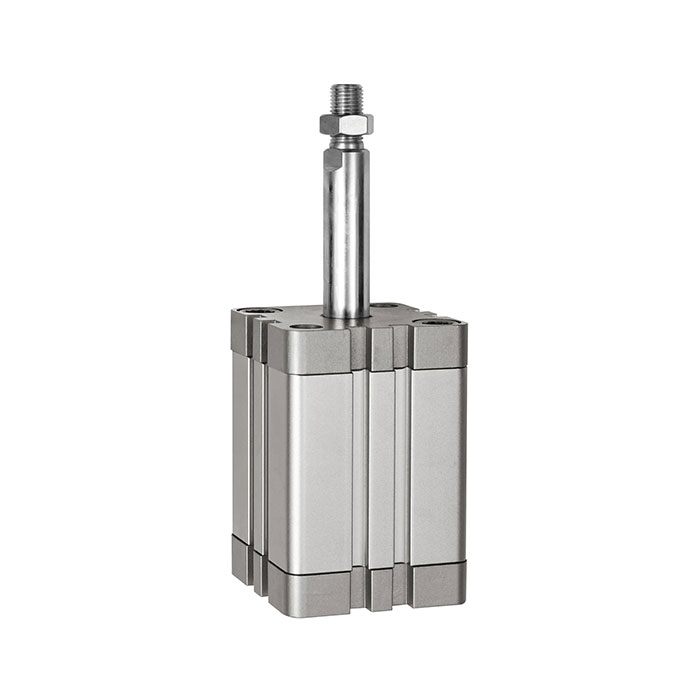

RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 15, G1/8,ISO21287
Typennummer: 15.AMA.50015
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, single-walled, male thread, male thread, solenoid, piston Ø 50, stroke 15, G1/8, max. working pressure 10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series ATE |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 50 mm |
| Function | single-acting |
| Stroke | 15 mm |
| Piston rods AG | M12x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | extended without pressure |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[155954] RIEGLER Comp.cyl., single-act., ext., Piston Ø 12, Stroke 10,M5,ISO21287](/web/image/product.template/213205/image_128/%5B155954%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2CM5%2CISO21287?unique=6f91d8f)
|
Typennummer: 15.AMA.12010 |
26.45 € | |
![[155956] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 10,M5,ISO21287](/web/image/product.template/213207/image_128/%5B155956%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2CM5%2CISO21287?unique=4575655)
|
Typennummer: 15.AMA.16010 |
26.60 € | |
![[155957] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 15,M5,ISO21287](/web/image/product.template/213208/image_128/%5B155957%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2CM5%2CISO21287?unique=d3221dd)
|
Typennummer: 15.AMA.16015 |
27.26 € | |
![[155958] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 20,M5,ISO21287](/web/image/product.template/213209/image_128/%5B155958%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2CM5%2CISO21287?unique=246e94d)
|
Typennummer: 15.AMA.16020 |
27.51 € | |
![[155959] RIEGLER Comp.cyl., single-act., ext., Piston Ø 16, Stroke 25,M5,ISO21287](/web/image/product.template/213210/image_128/%5B155959%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2CM5%2CISO21287?unique=bdb1344)
|
Typennummer: 15.AMA.16025 |
27.89 € | |
![[155961] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 10,M5,ISO21287](/web/image/product.template/213212/image_128/%5B155961%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2CM5%2CISO21287?unique=7513e17)
|
Typennummer: 15.AMA.20010 |
28.18 € | |
![[155962] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 15,M5,ISO21287](/web/image/product.template/213213/image_128/%5B155962%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2CM5%2CISO21287?unique=9d0df92)
|
Typennummer: 15.AMA.20015 |
28.81 € | |
![[155963] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 20,M5,ISO21287](/web/image/product.template/213214/image_128/%5B155963%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2CM5%2CISO21287?unique=41e3115)
|
Typennummer: 15.AMA.20020 |
28.95 € | |
![[155964] RIEGLER Comp.cyl., single-act., ext., Piston Ø 20, Stroke 25,M5,ISO21287](/web/image/product.template/213215/image_128/%5B155964%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2CM5%2CISO21287?unique=ca39e2d)
|
Typennummer: 15.AMA.20025 |
29.88 € | |
![[155966] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 10,M5,ISO21287](/web/image/product.template/213217/image_128/%5B155966%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2CM5%2CISO21287?unique=cb9d8e1)
|
Typennummer: 15.AMA.25010 |
31.29 € | |
![[155967] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 15,M5,ISO21287](/web/image/product.template/213218/image_128/%5B155967%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2CM5%2CISO21287?unique=57a12ab)
|
Typennummer: 15.AMA.25015 |
31.95 € | |
![[155968] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 20,M5,ISO21287](/web/image/product.template/213219/image_128/%5B155968%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2CM5%2CISO21287?unique=3b7c7d4)
|
Typennummer: 15.AMA.25020 |
32.75 € | |
![[155969] RIEGLER Comp.cyl., single-act., ext., Piston Ø 25, Stroke 25,M5,ISO21287](/web/image/product.template/213220/image_128/%5B155969%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2CM5%2CISO21287?unique=61fa8e7)
|
Typennummer: 15.AMA.25025 |
33.13 € | |
![[155996] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 10, G1/8,ISO21287](/web/image/product.template/213247/image_128/%5B155996%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=ab2be5f)
|
Typennummer: 15.AMA.100010 |
113.72 € | |
![[155997] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 15, G1/8,ISO21287](/web/image/product.template/213248/image_128/%5B155997%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=9b46299)
|
Typennummer: 15.AMA.100015 |
115.14 € | |
![[155998] RIEGLER Comp.cyl., single-act., ext., P-Ø100, Stroke 20, G1/8,ISO21287](/web/image/product.template/213249/image_128/%5B155998%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=d06fab9)
|
Typennummer: 15.AMA.100020 |
116.57 € | |
![[155999] Riegler Comp.cyl., single-act., ext., P-Ø100, Stroke 25, G1/8,ISO21287](/web/image/product.template/213250/image_128/%5B155999%5D%20Riegler%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98100%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=47fe2ff)
|
Typennummer: 15.AMA.100025 |
118.01 € | |
![[155995] RIEGLER Comp.cyl., single-act., ext., P-Ø 100, Stroke 5, G1/8,ISO21287](/web/image/product.template/213246/image_128/%5B155995%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%20100%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=a6b31f8)
|
Typennummer: 15.AMA.100005 |
112.25 € | |
![[155971] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 10, G1/8,ISO21287](/web/image/product.template/213222/image_128/%5B155971%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=f0e90ce)
|
Typennummer: 15.AMA.32010 |
34.21 € | |
![[155972] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 15, G1/8,ISO21287](/web/image/product.template/213223/image_128/%5B155972%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=71904aa)
|
Typennummer: 15.AMA.32015 |
34.83 € | |
![[155973] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 20, G1/8,ISO21287](/web/image/product.template/213224/image_128/%5B155973%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=dd350df)
|
Typennummer: 15.AMA.32020 |
35.62 € | |
![[155974] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 25, G1/8,ISO21287](/web/image/product.template/213225/image_128/%5B155974%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=c4f51d4)
|
Typennummer: 15.AMA.32025 |
36.14 € | |
![[155970] RIEGLER Comp.cyl., single-act., ext., P-Ø 32, Stroke 5, G1/8,ISO21287](/web/image/product.template/213221/image_128/%5B155970%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2032%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=c39d190)
|
Typennummer: 15.AMA.32005 |
33.81 € | |
![[155976] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 10, G1/8,ISO21287](/web/image/product.template/213227/image_128/%5B155976%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=d11a074)
|
Typennummer: 15.AMA.40010 |
40.08 € | |
![[155977] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 15, G1/8,ISO21287](/web/image/product.template/213228/image_128/%5B155977%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=054dfbe)
|
Typennummer: 15.AMA.40015 |
40.60 € | |
![[155978] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 20, G1/8,ISO21287](/web/image/product.template/213229/image_128/%5B155978%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=b7a6c10)
|
Typennummer: 15.AMA.40020 |
41.38 € | |
![[155979] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 25, G1/8,ISO21287](/web/image/product.template/213230/image_128/%5B155979%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=34c2d9f)
|
Typennummer: 15.AMA.40025 |
41.90 € | |
![[155975] RIEGLER Comp.cyl., single-act., ext., P-Ø 40, Stroke 5, G1/8,ISO21287](/web/image/product.template/213226/image_128/%5B155975%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2040%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=de5986c)
|
Typennummer: 15.AMA.40005 |
39.56 € | |
![[155981] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 10, G1/8,ISO21287](/web/image/product.template/213232/image_128/%5B155981%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=115829e)
|
Typennummer: 15.AMA.50010 |
46.90 € | |
![[155983] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 20, G1/8,ISO21287](/web/image/product.template/213234/image_128/%5B155983%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=955bd1c)
|
Typennummer: 15.AMA.50020 |
48.46 € | |
![[155984] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 25, G1/8,ISO21287](/web/image/product.template/213235/image_128/%5B155984%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=9f6e1a0)
|
Typennummer: 15.AMA.50025 |
49.37 € | |
![[155980] RIEGLER Comp.cyl., single-act., ext., P-Ø 50, Stroke 5, G1/8,ISO21287](/web/image/product.template/213231/image_128/%5B155980%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2050%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=4d8de54)
|
Typennummer: 15.AMA.50005 |
46.37 € | |
![[155986] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 10, G1/8,ISO21287](/web/image/product.template/213237/image_128/%5B155986%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=18617d1)
|
Typennummer: 15.AMA.63010 |
60.01 € | |
![[155987] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 15, G1/8,ISO21287](/web/image/product.template/213238/image_128/%5B155987%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=0ea17d9)
|
Typennummer: 15.AMA.63015 |
60.79 € | |
![[155988] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 20, G1/8,ISO21287](/web/image/product.template/213239/image_128/%5B155988%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=2064695)
|
Typennummer: 15.AMA.63020 |
61.56 € | |
![[155989] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 25, G1/8,ISO21287](/web/image/product.template/213240/image_128/%5B155989%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=59c7509)
|
Typennummer: 15.AMA.63025 |
62.63 € | |
![[155985] RIEGLER Comp.cyl., single-act., ext., P-Ø 63, Stroke 5, G1/8,ISO21287](/web/image/product.template/213236/image_128/%5B155985%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2063%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=8238dd2)
|
Typennummer: 15.AMA.63005 |
58.94 € | |
![[155991] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 10, G1/8,ISO21287](/web/image/product.template/213242/image_128/%5B155991%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2010%2C%20G1-8%2CISO21287?unique=7bf85a9)
|
Typennummer: 15.AMA.80010 |
89.86 € | |
![[155992] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 15, G1/8,ISO21287](/web/image/product.template/213243/image_128/%5B155992%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2015%2C%20G1-8%2CISO21287?unique=dc5882f)
|
Typennummer: 15.AMA.80015 |
90.92 € | |
![[155993] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 20, G1/8,ISO21287](/web/image/product.template/213244/image_128/%5B155993%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2020%2C%20G1-8%2CISO21287?unique=322f0e3)
|
Typennummer: 15.AMA.80020 |
92.09 € | |
![[155994] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 25, G1/8,ISO21287](/web/image/product.template/213245/image_128/%5B155994%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%2025%2C%20G1-8%2CISO21287?unique=6d08f6c)
|
Typennummer: 15.AMA.80025 |
93.15 € | |
![[155990] RIEGLER Comp.cyl., single-act., ext., P-Ø 80, Stroke 5, G1/8,ISO21287](/web/image/product.template/213241/image_128/%5B155990%5D%20RIEGLER%20Comp.cyl.%2C%20single-act.%2C%20ext.%2C%20P-%C3%98%2080%2C%20Stroke%205%2C%20G1-8%2CISO21287?unique=e5f6f9d)
|
Typennummer: 15.AMA.80005 |
88.82 € | |
![[155953] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 12, Stroke 5,M5,ISO21287](/web/image/product.template/213204/image_128/%5B155953%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2CM5%2CISO21287?unique=2436f15)
|
Typennummer: 15.AMA.12005 |
26.33 € | |
![[155955] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 16, Stroke 5,M5,ISO21287](/web/image/product.template/213206/image_128/%5B155955%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2CM5%2CISO21287?unique=ab6d64b)
|
Typennummer: 15.AMA.16005 |
26.45 € | |
![[155960] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 20, Stroke 5,M5,ISO21287](/web/image/product.template/213211/image_128/%5B155960%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2CM5%2CISO21287?unique=e7fa4b7)
|
Typennummer: 15.AMA.20005 |
27.89 € | |
![[155965] RIEGLER Comp.cyl., single-acting, ext., Piston Ø 25, Stroke 5,M5,ISO21287](/web/image/product.template/213216/image_128/%5B155965%5D%20RIEGLER%20Comp.cyl.%2C%20single-acting%2C%20ext.%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2CM5%2CISO21287?unique=53c2d9d)
|
Typennummer: 15.AMA.25005 |
30.89 € | |
