RIEGLER Plastic silencer with polyethylene damper element, G 1/4
Typennummer: SD14PE
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic silencer for noise protection, max. 6 bar, G 1/4 - type SD14PE
The RIEGLER plastic silencer, polyethylene silencer element, G 1/4 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 6 bar. The operating temperature is between 5 °C and 80 °C. G 1/4 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 6 bar |
| Operating temperature min. | 5 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| A | 10.8 mm |
| B | 65 mm |
| C | 21 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156503] RIEGLER Plastic silencer with polyethylene damper element, G 1](/web/image/product.template/213307/image_128/%5B156503%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20G%201?unique=b4127ff)
|
Typennummer: SD1PE |
8.79 € | |
![[156501] RIEGLER Plastic silencer with polyethylene damper element, G 1/2](/web/image/product.template/213305/image_128/%5B156501%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20G%201-2?unique=e722ee3)
|
Typennummer: SD12PE |
2.19 € | |

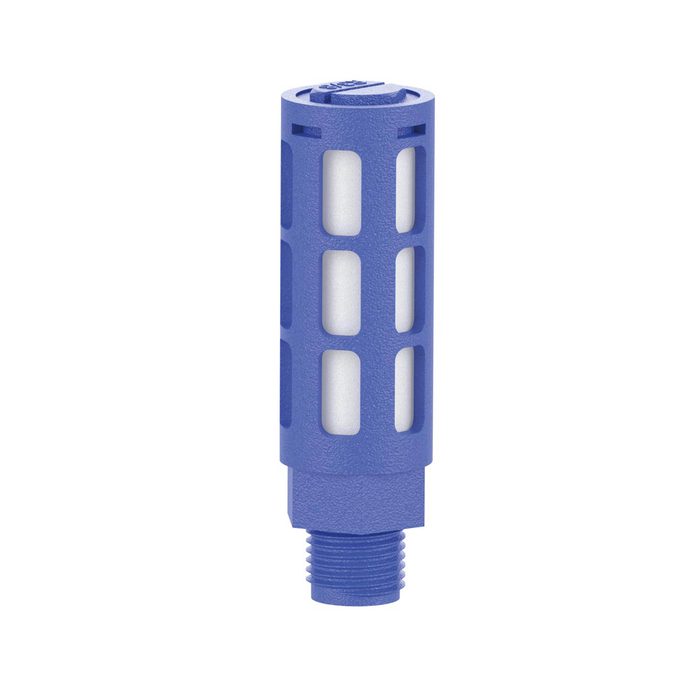

![[156498] RIEGLER Plastic silencer with polyethylene damper element, G 1/8](/web/image/product.template/213302/image_128/%5B156498%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20G%201-8?unique=3af6c1c)
|
Typennummer: SD18PE |
0.57 € | |
![[156502] RIEGLER Plastic silencer with polyethylene damper element, G 3/4](/web/image/product.template/213306/image_128/%5B156502%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20G%203-4?unique=7305b8e)
|
Typennummer: SD34PE |
8.79 € | |
![[156500] RIEGLER Plastic silencer with polyethylene damper element, G 3/8](/web/image/product.template/213304/image_128/%5B156500%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20G%203-8?unique=7fe673c)
|
Typennummer: SD38PE |
1.57 € | |

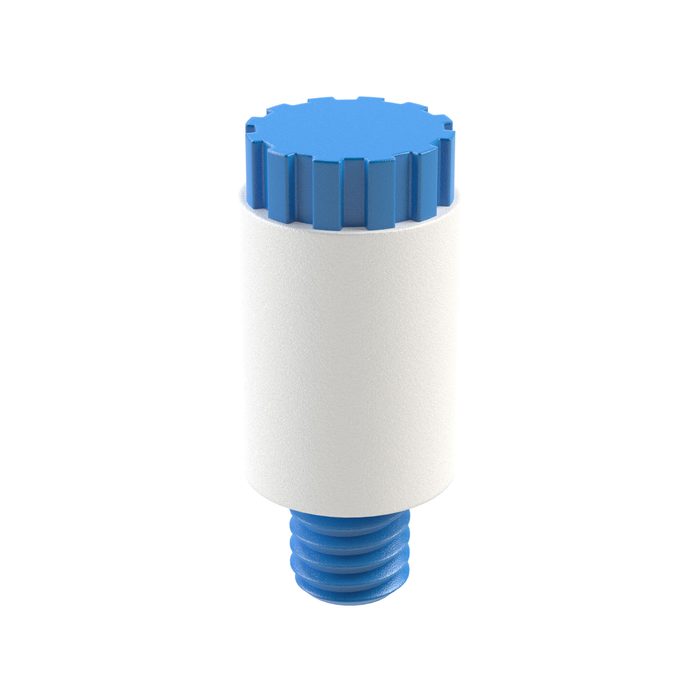

![[156497] RIEGLER Plastic silencer with polyethylene damper element, M5](/web/image/product.template/213301/image_128/%5B156497%5D%20RIEGLER%20Plastic%20silencer%20with%20polyethylene%20damper%20element%2C%20M5?unique=1ec5b31)
|
Typennummer: SD5PE |
0.51 € | |
