RIEGLER Brass ball valve, Pneum. actuation drive, double-acting, Rp 1 1/2
Typennummer: 351.214-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Brass KH, pneum. Actuator to NAMUR, double-acting, MSV, operating temp. KH -20 °C to +150 °C, Rp 1 1/2, DN 40, PN max. 16 bar
| Operating temperature actuator min. | -20 °C |
| Operating temperature actuator max. | 80 °C |
| Actuator control pressure max. | 8.4 bar |
| Control pressure recommended | 5.6 bar |
| Operating temperature ball valve min. | -20 °C |
| Operating temperature ball valve max. | 150 °C |
| Operating pressure ball valve max. | 16 bar |
| Rotation angle | 90 ° |
| Valve adapter | integrated into Namur |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO 5211 flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 1/2 |
| DN | 40 |
| A | 159 mm |
| B | 129.8 mm |
| L | 114 mm |
| Execution | double-acting |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| REACH SVHC2 Substance Name | Octamethylcyclotetrasiloxane (D4) |
| REACH SVHC3 Substance Name | Decamethylcyclopentasiloxane (D5) |
| REACH SVHC4 Substance Name | Dodecamethylcyclohexasiloxane (D6) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158800] RIEGLER Brass ball valve, Pneum. actuation drive, double-acting, Rp 1 1/4](/web/image/product.template/214716/image_128/%5B158800%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneum.%20actuation%20drive%2C%20double-acting%2C%20Rp%201%201-4?unique=52a8916)
|
Typennummer: 351.213-1 |
206.57 € | |
![[158831] RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 1](/web/image/product.template/214726/image_128/%5B158831%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20double-acting%2C%20Rp%201?unique=1aead51)
|
Typennummer: 351.212-1 |
161.30 € | |
![[158829] RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 1/2](/web/image/product.template/214724/image_128/%5B158829%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20double-acting%2C%20Rp%201-2?unique=0ab852e)
|
Typennummer: 351.210-1 |
140.53 € | |
![[158802] RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 2](/web/image/product.template/214718/image_128/%5B158802%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20double-acting%2C%20Rp%202?unique=72fec95)
|
Typennummer: 351.215-1 |
308.34 € | |
![[158830] RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 3/4](/web/image/product.template/214725/image_128/%5B158830%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20double-acting%2C%20Rp%203-4?unique=edb55cc)
|
Typennummer: 351.211-1 |
150.64 € | |

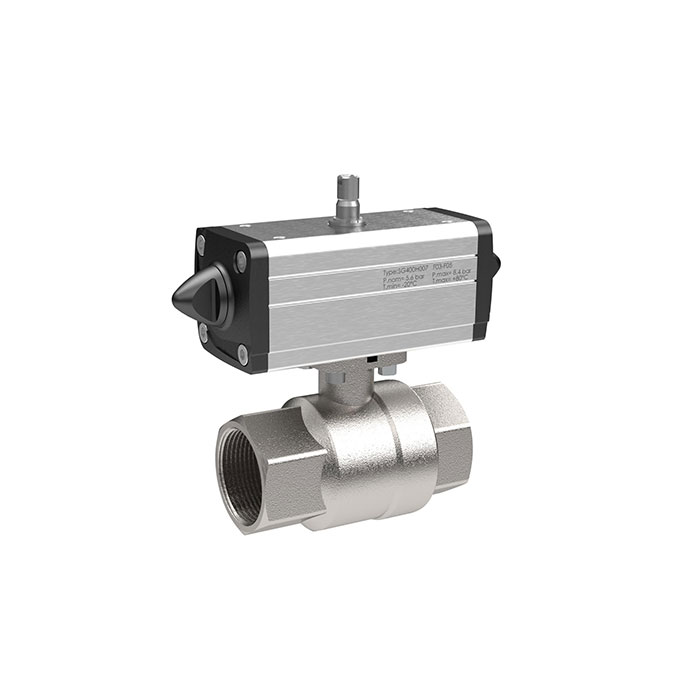

![[158828] RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 3/8](/web/image/product.template/214723/image_128/%5B158828%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20double-acting%2C%20Rp%203-8?unique=4575732)
|
Typennummer: 351.209-1 |
139.77 € | |
