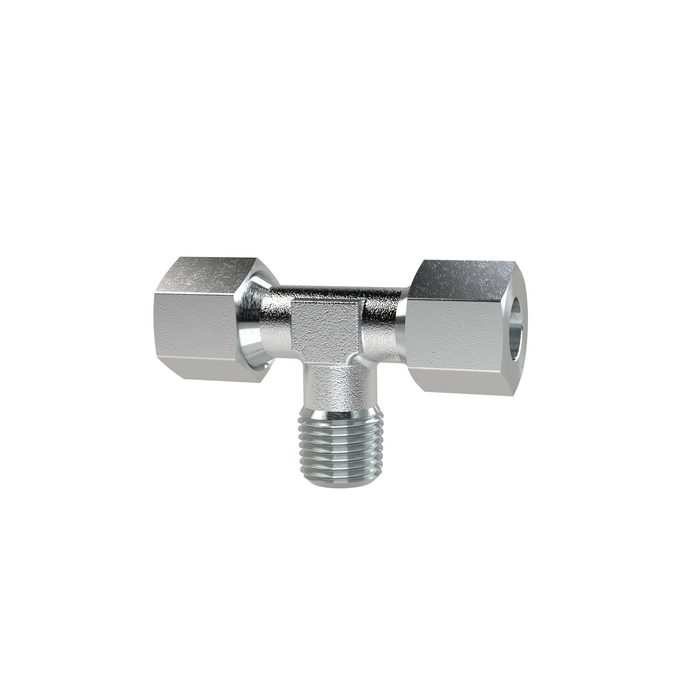

RIEGLER Male branch tee, R 3/8 o., Pipe exterior Ø 12, galvanised steel
Typennummer: TVR3812SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Einschraubverschraubung, R 3/8 a., Rohr-Außen-Ø 12 mm, PN max. 630 bar, SW1 24, SW2 17, Stahl verzinkt
| Material | Galvanized steel (DIN 2353) |
| Thread | R 3/8 |
| SW 1 | 24 mm |
| SW 2 | 17 mm |
| Tube outer Ø | 12 mm |
| PN | 630 bar |
| L1 | 38 mm |
| L2 | 31 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
