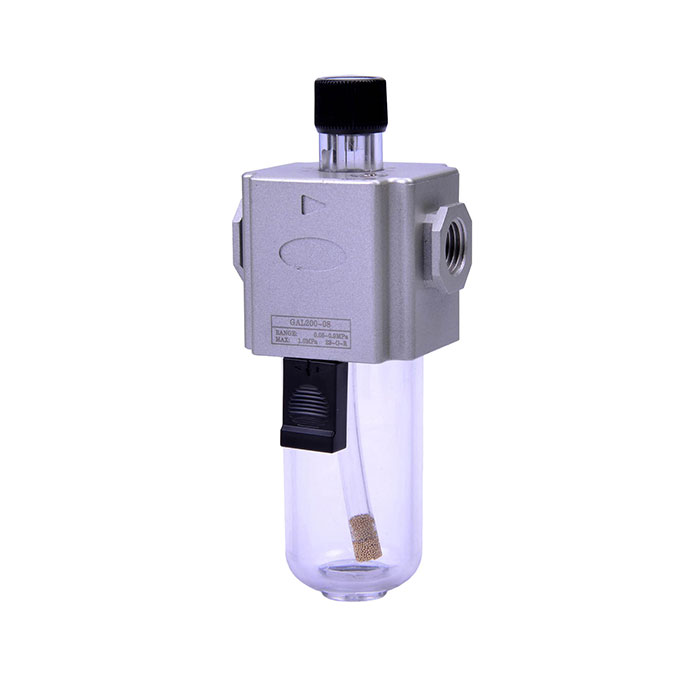

RIEGLER Mist oiler »GA-mini«, PC container, Size 200, G 1/8, 0.5 - 9 bar
Typennummer: GAL 05
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »GA-mini«, PC container and mounting bracket, Size 200, G 1/8, Input pressure max. 10 bar, Working pressure 0.5 - 9 bar
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA-mini |
| Container | Polycarbonate container |
| Dropper attachment | Brass/POM |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 1/8 |
| Flow rate | 2700 l/min |
| BG | 200 |
| A | 52.5 mm |
| B | 124 mm |
| C | 40 mm |
| D | 84 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

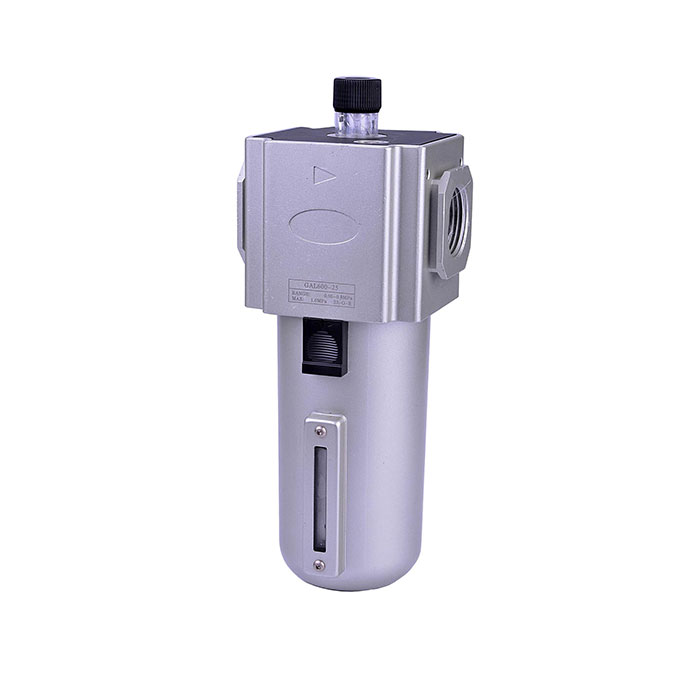

![[178360] RIEGLER Mist oiler »GA-mini«, PC container, Size 200, G 1/4, 0.5 - 9 bar](/web/image/product.template/216334/image_128/%5B178360%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA-mini%C2%AB%2C%20PC%20container%2C%20Size%20200%2C%20G%201-4%2C%200.5%20-%209%20bar?unique=a443c21)
|
Typennummer: GAL 06 |
20.91 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116515] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201215/image_128/%5B116515%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=537dcba)
|
Type number: LB 200 |
5.90 € | |
![[116608] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202326/image_128/%5B116608%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=567c162)
|
Type number: TB 200 |
5.90 € | |
![[116612] RIEGLER Connecting element without wall mounting, with U-shaped band](/web/image/product.template/202330/image_128/%5B116612%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20with%20U-shaped%20band?unique=b5801a3)
|
Type number: UB 200 |
7.02 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[179147] RIEGLER Mounting bracket incl. 4 screws, «GA-mini», size 200](/web/image/product.template/216417/image_128/%5B179147%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20%C2%ABGA-mini%C2%BB%2C%20size%20200?unique=dc0c5a9)
|
Typennummer: HW 201-A |
5.50 € | |
