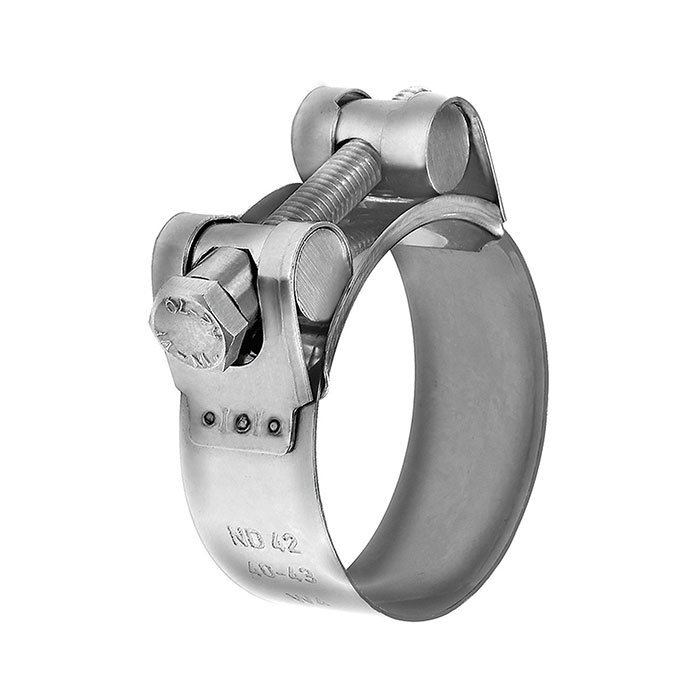

RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 98 - 103 mm, 24 mm
Typennummer: GBS103ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hinge pin clamp, Stainless steel 1.4301 (W4), Clamping range 98 - 103 mm, Belt width 24 mm, rec. tightening torque 18.0 Nm
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bandwidth | 24 mm |
| Bolt | Stainless steel 1.4301 (W4) |
| CAS No. SVHC 1 | none CAS No. |
| recomm. Tightening torque | 18 Nm |
| Housing | Stainless steel 1.4301 (W4) |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Screw | Stainless steel 1.4301 (W4) |
| Clamping range max. | 103 mm |
| Clamping range min. | 98 mm |
| Steel strap | Stainless steel 1.4301 (W4) |
