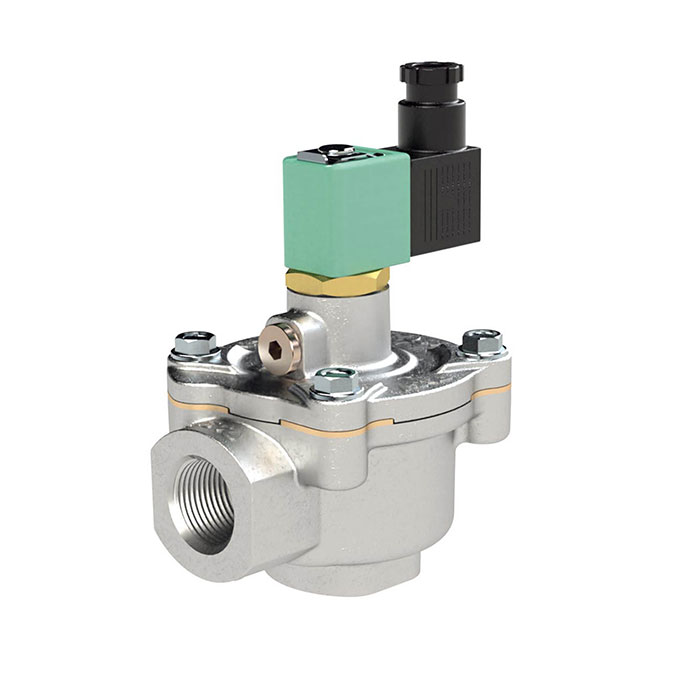

RIEGLER Pulse diaphragm valve, NC, 230 V, 50-60 Hz int. pilot control, G 1 1/2
Typennummer: MV 4213-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pulse diaphragm valve NC,230V,50/60Hz, int. pre-control, Medium temp. -15 to 85°C, Ambient temp. -20 to 85°C, G1 1/2, PN 2-8,5 bar
| A | 61 mm |
| B | 132 mm |
| Design | 2 |
| Max. operating pressure | 8.5 bar |
| Operating pressure min. | 2 bar |
| Sealing material | NBR |
| DN | 55 |
| Electrical connection | ISO 4400 appliance inlet/line socket |
| Vent connection | G 3/8 |
| Function | normally closed (NC) |
| Housing | Aluminum |
| Thread | G 1 1/2 |
| Interior parts | Stainless steel |
| Class name | FLEX |
| Medium | Air, purge gas, raw gas |
| Medium temperature max. | 85 °C |
| Medium temperature min. | -15 °C |
| Membrane | TPE |
| Protection class | IP 65 (when using the appliance inlet/line socket) |
| Ambient temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
