RIEGLER Pulse diaphragm valve, NC, 230 V, 50-60 Hz int. pilot control, G 1
Typennummer: MV 4212-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Impulse diaphragm valve made of aluminum, for industrial systems, max. 8.5 bar - Type MV 4212-1
The RIEGLER pulse diaphragm valve, NC, 230 V, 50-60 Hz int. pilot control, G 1 switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of aluminum with NBR seals. The operating pressure range is 2 bar to 8.5 bar. The permissible medium temperature is between -15 °C and 85 °C. Connection thread G 1 - suitable for common industry standards. Suitable for air, purge gas, raw gas. Protection class IP 65 (when using the cable plug/line socket). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| A | 61 mm |
| B | 90 mm |
| Design | 1 |
| Max. operating pressure | 8.5 bar |
| Operating pressure min. | 2 bar |
| Sealing material | NBR |
| DN | 32 |
| Electrical connection | ISO 4400 appliance inlet/line socket |
| Function | normally closed (NC) |
| Housing | Aluminum |
| Thread | G 1 |
| Interior parts | Stainless steel |
| Class name | FLEX |
| Medium | Air, purge gas, raw gas |
| Medium temperature max. | 85 °C |
| Medium temperature min. | -15 °C |
| Membrane | TPE |
| Protection class | IP 65 (when using the appliance inlet/line socket) |
| Ambient temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102986] RIEGLER Pulse diaphragm valve, NC, 230 V, 50 - 60 Hz internal pre-control](/web/image/product.template/170955/image_128/%5B102986%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%20230%20V%2C%2050%20-%2060%20Hz%20internal%20pre-control?unique=5cd4117)
|
Type number: MV 4214 |
329.38 € | |

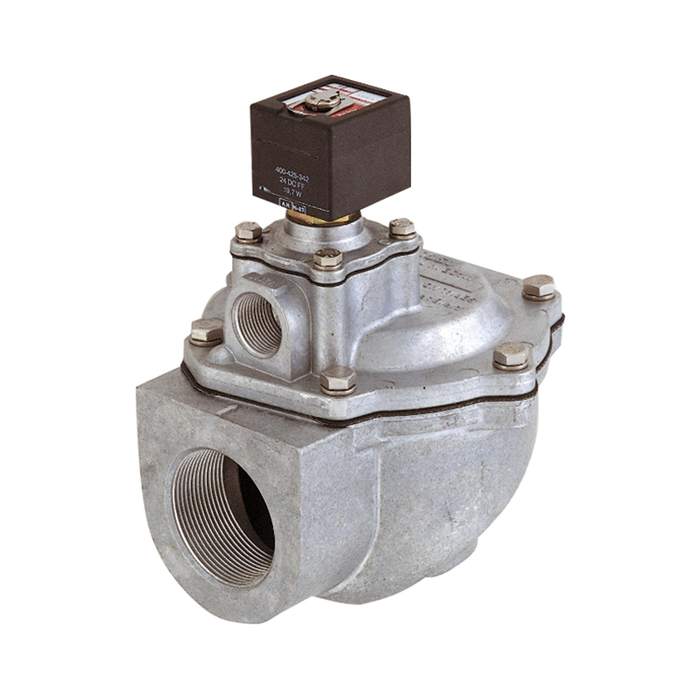

![[102987] RIEGLER Pulse diaphragm valve, NC, 230 V, 50 - 60 Hz internal pre-control](/web/image/product.template/170956/image_128/%5B102987%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%20230%20V%2C%2050%20-%2060%20Hz%20internal%20pre-control?unique=303b760)
|
Type number: MV 4215 |
347.56 € | |
![[199902] RIEGLER Pulse diaphragm valve, NC, 230 V, 50-60 Hz int. pilot control, G 1 1/2](/web/image/product.template/267913/image_128/%5B199902%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%20230%20V%2C%2050-60%20Hz%20int.%20pilot%20control%2C%20G%201%201-2?unique=ec1dc54)
|
Typennummer: MV 4213-1 |
224.86 € | |

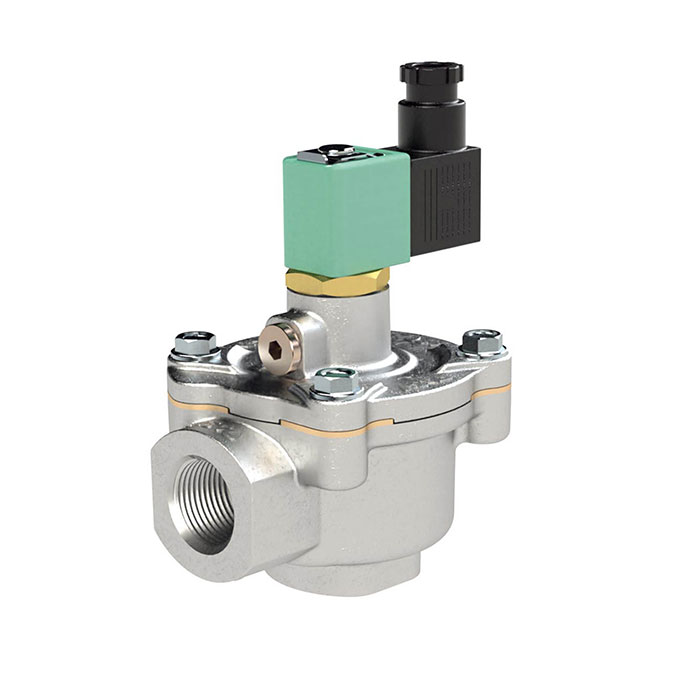

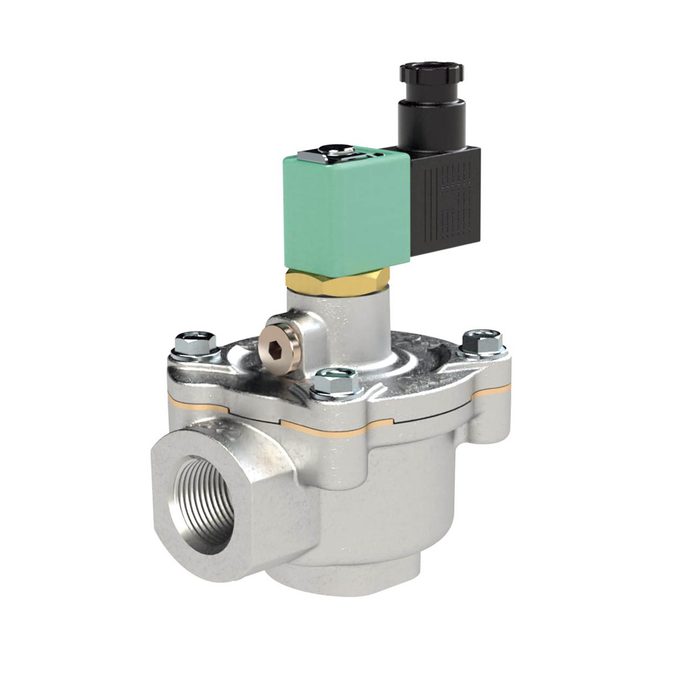

![[199900] RIEGLER Pulse diaphragm valve, NC, 230V, 50/60 Hz int. pilot control, G3/4](/web/image/product.template/267735/image_128/%5B199900%5D%20RIEGLER%20Pulse%20diaphragm%20valve%2C%20NC%2C%20230V%2C%2050-60%20Hz%20int.%20pilot%20control%2C%20G3-4?unique=96b81fa)
|
