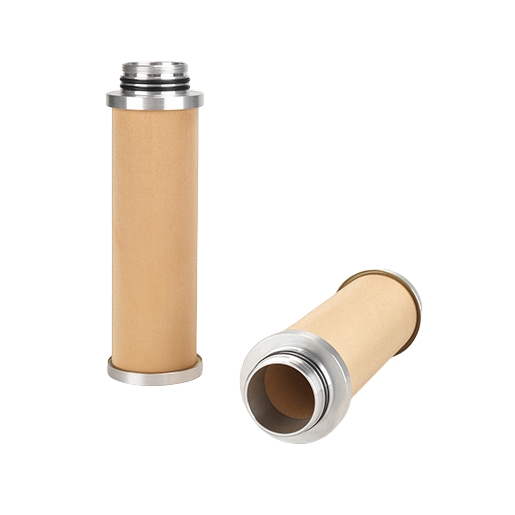

Donaldson filter element, SB 05/25, 25 micron
Nominal flow rate at 7 bar: 270 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Sintered bronze pre-filter - Regenerable particle filter with 100 % separation efficiency
The Donaldson Filter element SB 05/25 25 micron is a robust pre-filter and particle filter made of sintered bronze for compressed air treatment. This Donaldson filter element offers a pore size of 25 µm, 100 % particle separation efficiency and is fully regenerable by backwashing or ultrasonic cleaning. The ideal compressed air filter as pre-filtration to protect downstream coalescence filters in your compressed air system.
Performance data & filtration properties
- Filtration type: Sintered bronze pre-filter and particle filter for compressed air - reliable pre-filtration.
- Nominal flow rate: 270 m³/h at 7 bar operating pressure - suitable for AG/SG/HD compressed air filter housings.
- Pore size: 25 µm - 100 % particle separation efficiency for maximum process reliability.
- Regenerable: Through backwashing or ultrasonic cleaning - economical compressed air treatment.
- Material: Sintered bronze no. 2.1052 - robust, corrosion-resistant and durable.
High-quality structure of the element
- Filter body: Sintered bronze no. 2.1052 - robust, regenerable filter structure for compressed air.
- End caps: Aluminum - robust and corrosion-resistant for a long service life.
- Sealing: NBR O-rings for a reliable and leak-free fit in the filter housing.
- Construction: Compact design for easy filter change and cleaning.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 05/25). Pre-filter to protect downstream coalescence filters.
Typical areas of application
- Pre-filtration: Pre-filter to protect downstream coalescence filters (FF/MF series) in compressed air housings.
- Central compressed air treatment: Particle filter for separating coarse impurities from the compressed air.
- Industrial production: Robust compressed air filter for harsh environmental conditions.
- Machinery and plant engineering: Regenerable pre-filter for economical compressed air filtration.
| Filter type | SB: Dust filter (standard) |
| Nominal flow rate at 7 bar (m³/h) | 270 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
