Donaldson filter element SMF 02/05 HTCR
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
High-temperature sub-microfilter for oil separation HTCR - UltraPleat® with stainless steel

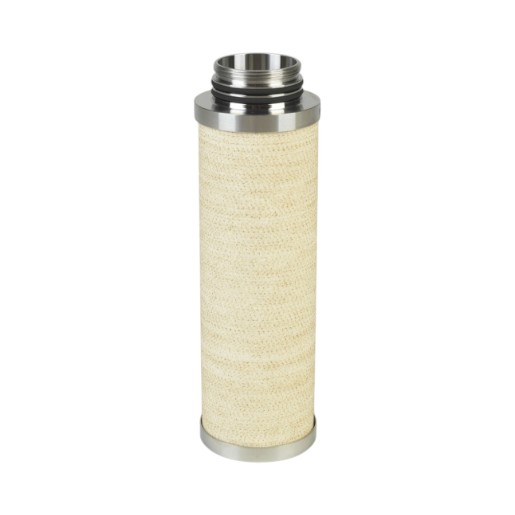

The Donaldson Filter element SMF 02/05 HTCR is a specialized high temperature sub-micro filter and coalescing filter for oil separation with UltraPleat® technology and stainless steel end caps. This Donaldson filter element offers the finest oil separation with a residual oil content ≤0.01 mg/m³ - the premium solution for compressed air treatment in corrosive environments in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: High temperature sub-micro filter for oil separation (HTCR) with UltraPleat® technology.
- Nominal flow rate: 20 m³/h at 7 bar operating pressure.
- Oil separation: Residual oil content ≤0.01 mg/m³ - finest oil separation for the highest compressed air quality.
- Particle separation: 99.99999 % at 0.01 µm - sub-micron filtration.
- Corrosion resistance: Stainless steel end caps for aggressive environments.
- Validated quality: Tested according to ISO 12500-1 and ISO 12500-3.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D borosilicate glass fiber fleece for ultra-fine oil separation.
- Stainless steel end caps: Maximum corrosion resistance with aggressive condensates.
- Coalescent sheath: Fixed polyester fleece for optimum fluid drainage.
- Support structure: Stainless steel support shells (1.4301/304) against pressure surges.
- Sealing: NBR O-rings for a leak-free fit.
System compatibility
- Fits for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 02/05). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Central compressed air treatment: Sub-microfilter for oil separation for the highest compressed air quality.
- Food and pharmaceutical industry: Ultra-fine oil separation for contamination-free compressed air.
- Electronics production: Sub-micron filtration for semiconductor and cleanroom production.
- End-point filtration: Compressed air filters for instrument and process air with the highest purity requirements.
- Medical technology: Oil-free compressed air for medical devices and applications.
| Filter type | SMF HTCR: Submicrofilter (Chem. best.) |
| Element type | AG, SG und HD Element |
